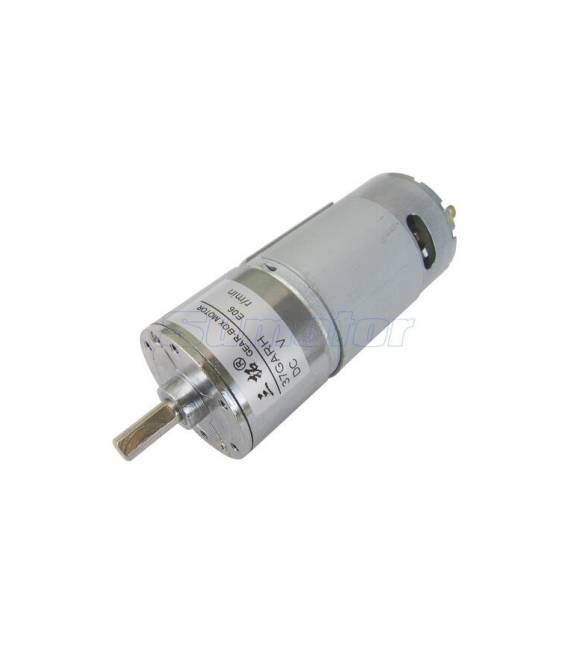

37GARH 24V 600RPM Gear Motor

Description

What is the 37GARH 24V 600RPM Gear Motor? This electrical component combines a DC motor with a mechanical gearbox, providing higher torque at the expense of reduced speed compared to standard DC motors. Features: Power Supply Voltage: 24V Speed: 600 RPM Model: 37GARH Use Cases The gear motor 37GARH is suitable for Arduino projects and applications that require speed reduction and increased torque, such as robotics, home automation or small mobile mechanisms. Example Usage Build a basic robot that moves forward and backward using the gear motor and sensors to control distances. Tutorial: How to use 37GARH 24V 600RPM Gear Motor This tutorial guides you through installing and connecting the motor in a simple and straightforward manner, ideal for projects requiring power and precision like robotics or home automation. What You Need Arduino Uno Power connections (fuse, switch) Current limiting resistor Position sensors Steps Check the datasheet for motor specifications and prepare the power circuit with fuse and switch. Connect power to the motor observing polarity. Connect PWM signals from Arduino to motor drivers (check datasheet for specifics). Add a current-limiting resistor between Arduino and motor to protect against overcurrent. If needed, connect position or feedback sensors to the circuit. Write an Arduino sketch controlling the motor via PWM commands. Test installation with simple forward and backward movements of the motor. Check stability and precision of movement, adjusting control settings as necessary. Example Code void setup() { pinMode(9, OUTPUT); // Configure pin PWM for motor control } void loop() { analogWrite(9, 150); // Set motor speed } Mini Project Build a basic robot that moves forward and backward using the gear motor. Use sensors to control distances. Common Mistakes Not connecting the fuse or safety switch. Omitting the current-limiting resistor, risking damage to the motor. Incorrectly connecting PWM signals, causing uncontrolled movement of the motor.
