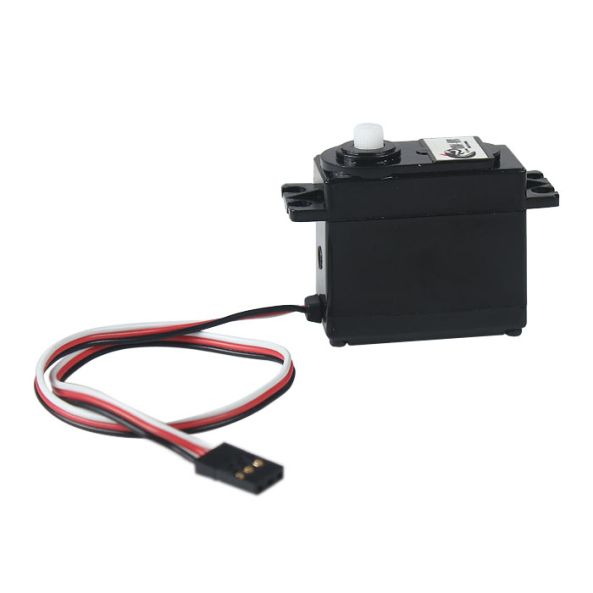

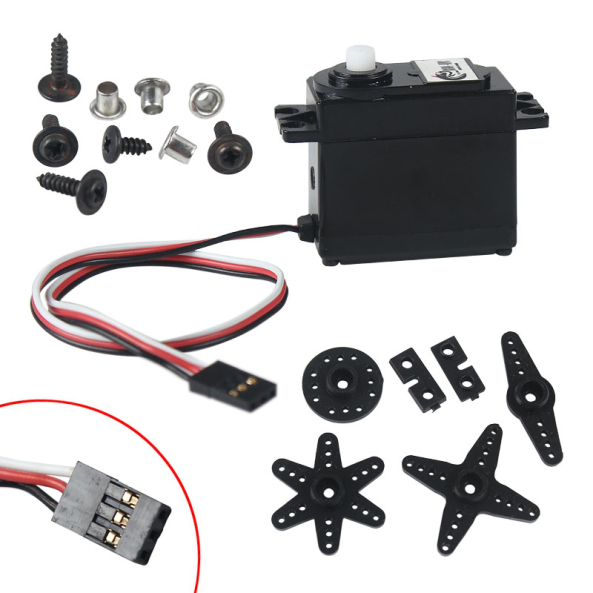

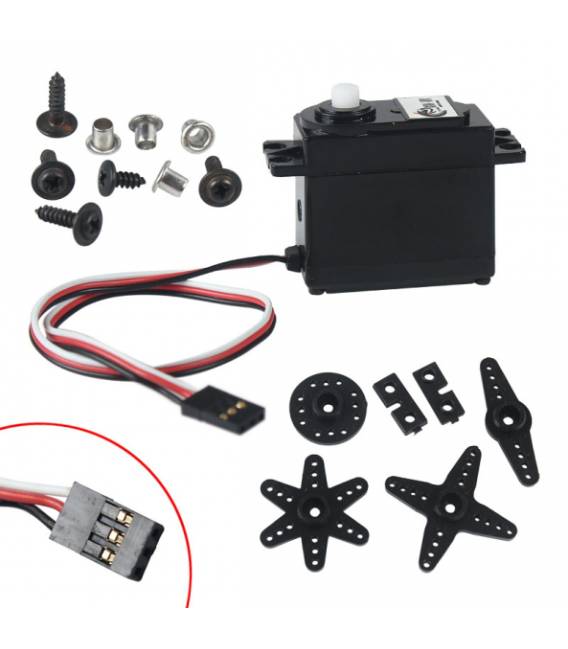

DS04-NFC Continuous Rotation Servo Motor

Description

What is it The DS04-NFC is a continuous rotation servo motor that allows for unlimited circular movement, making it ideal for applications where continuous rotation is essential. Features Continuous rotation of 360° Compatible with Arduino and Raspberry Pi What is it used for The DS04-NFC is suitable for robotic projects, orientation control systems, and automatic antennas. It can be used in combination with Arduino or ESP to manage continuous movements. Tutorial: How to Use DS04-NFC 360° Continuous Rotation Servo Motor This guide shows you how to connect and control it with Arduino. What you need Arduino Uno/Nano USB Cable DS04-NFC 360° Continuous Rotation Servo Motor Steps Connect the servo to the PWM pin of Arduino using a JST cable. Download and install the Servo library for Arduino. Open a new sketch in Arduino IDE. Insert the provided code in step ‘Code’. Upload the sketch to Arduino. Adjust the code parameters if necessary, such as the rotation range or speed. Example Code: “`Servo myServo; void setup() { myServo.attach(9); // Connect the servo to pin 9 } void loop() { for(int pos = 0; pos = 0; pos -= 1) { myServo.write(pos); // Rotate from 180 to 0 degrees in small increments delay(15); } } “` Mini-project Create a continuous rotation system for a WiFi antenna or an orientation control system. Set the DS04-NFC to continuously rotate following the commands from the Arduino. Common errors Connecting the servo to a non-PWM pin. Not loading the Servo library. Setting incorrect parameters in the code that cause abnormal servo behavior. Recommended accessories JST Cable Servo library for Arduino Protection resistor Frequently asked questions Can the DS04-NFC be used with Raspberry Pi? Yes, but a specific library will be needed for controlling servomotors on Raspberry Pi. What is the minimum and maximum voltage supported by the servo? Check the product datasheet.
