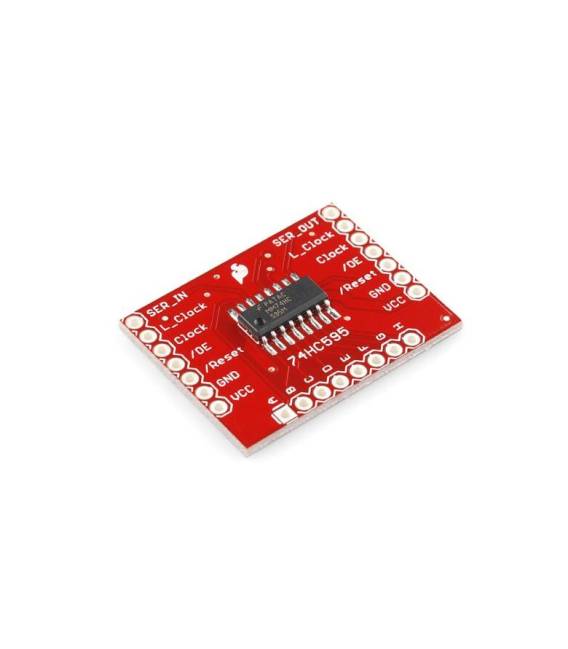

74HC595 Shift Register Breakout

Description

What is it The 74HC595 Shift Register Breakout is a module that expands digital outputs for Arduino, allowing the management of up to 8 digital outputs with a single pin. Ideal for projects requiring multiple output signals. Features Perfectly suited for expanding digital outputs on Arduino; Allows the management of up to 8 LEDs or relays without increasing the number of pins on the microcontroller; What is it used for It is used for projects that require controlling many digital outputs. For example, it can be used to create a warning signal with 8 LEDs that light up one after another. Tutorial: How to use 74HC595 Shift Register The 74HC595 Shift Register is a shift register that allows the management of up to 8 LEDs or relays without increasing the number of pins on the microcontroller. Useful for projects that require controlling many digital outputs. What does it need 74HC595 Shift Register Arduino Resistors (8 pieces) LEDs Cables for power Steps 1. Connect VCC to 5V on Arduino. 2. Connect GND to GND on Arduino. 3. Connect DS to one of D2-D9. 4. Connect SH_CP to one of D10-D13. 5. Connect ST_CP to one of D5-D6. 6. Connect Q0 to an LED and a 220Ω resistor. 7. Repeat step 6 for the other 7 LEDs. 8. Upload the Arduino code. Example code “`void loop() { for (int i = 0; i < 8; i++) { digitalWrite(i + 2, HIGH); delay(500); digitalWrite(i + 2, LOW); }}“` Mini-project Create a warning signal with 8 LEDs that light up one after another. Common errors Incorrectly connecting VCC and GND. Incorrectly connecting the pins DS, SH_CP, and ST_CP to the microcontroller. Forgetting the resistors for the LEDs. Not uploading the correct code. Recommended accessories Relays Sensors 7-segment Displays Batteries Frequently asked questions Can I use other microcontrollers besides Arduino? Yes, the 74HC595 is compatible with various microcontrollers. How many LEDs can I control? You can control up to 8 LEDs. Does the 74HC595 allow inverting the order of LEDs? Check the datasheet. What happens if I connect the wrong pins? The shift register may not function correctly.
