TXB0104 Bidirectional Voltage Level Translator

Description

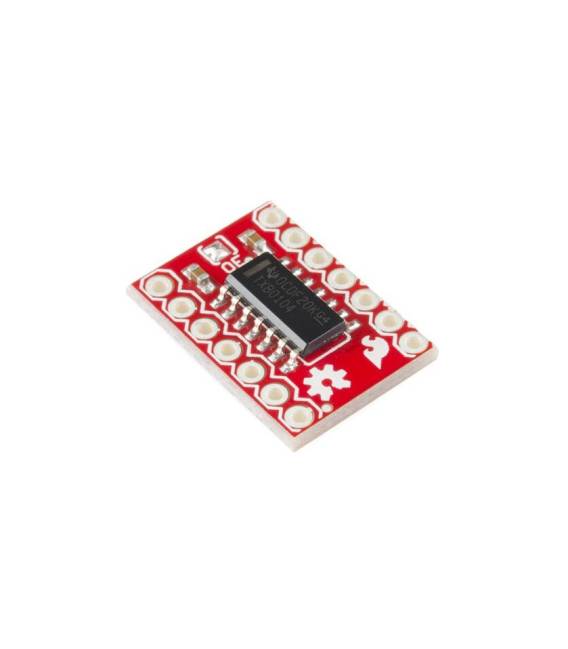

What is the TXB0104? The TXB0104 is an electronic component designed to manage the bidirectional conversion of voltage levels between two circuits. This device allows for safe communication between devices operating on different voltage levels, preventing damage due to voltage mismatches. Features: Handles bidirectional voltage level conversion Ideal for Arduino projects and prototyping Serves to create a bidirectional control system between devices operating on different voltage levels, such as a 3.3V sensor and a 5V LCD display. Using the TXB0104 ensures electrical compatibility without risking damage to components. Tutorial: How to Use the TXB0104 Bidirectional Voltage Level Translator The TXB0104 is a fundamental component for anyone working with electronic circuits that use different voltage levels. It serves to ensure compatibility between devices operating on different voltage levels, without risking damage due to voltage mismatches. What it serves: TXB0104 for Arduino Uno or similar Jumper wires (various colors) 3.3V and 5V power Supply Connect the VCCA pin to the higher voltage level between those to be connected. Connect the VCCB pin to the lower voltage level. Use jumper connectors to connect the TXB0104 to the devices to be transformed. Check the correct signal A and B orientation on the datasheet. Connect the GND pin to a common ground between the two voltage levels. Test bidirectional communication with a simple Arduino sketch. Example code: void setup() { Serial.begin(9600); } void loop() { // Insert code here to test communication } Mini-project Create a bidirectional control system between a 3.3V sensor and a 5V LCD display using the TXB0104 as an interface. Common errors: Connecting VCCA and VCCB to the wrong voltage level. Forgetting to connect the GND pin. Not verifying the A and B signal orientation on the datasheet. Recommended accessories: Arduino Uno R3 Color jumper wires 3.3V sensor 5V LCD display Frequently asked questions: What happens if I connect the TXB0104 backwards? It could damage the component or connected devices, verify the pin orientation on the datasheet. Can I use the TXB0104 to power other components? No, it is designed only for communication between live
