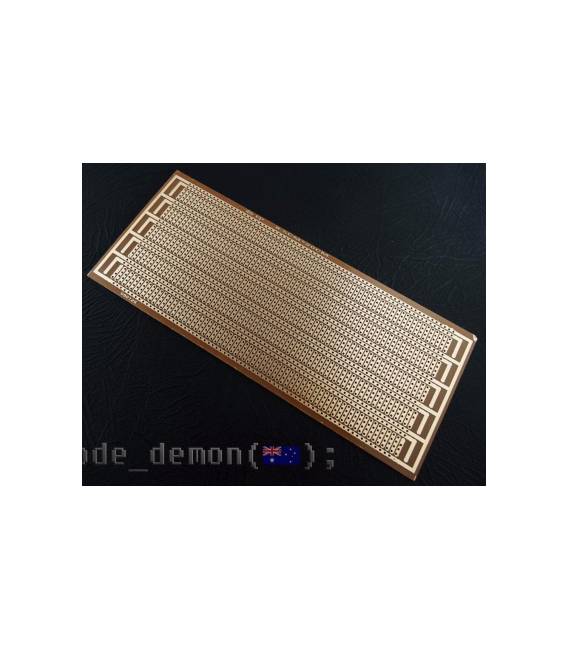

Universal Matrix Prototype PCB 8.5 x 20 cm

Description

What is the Universal Matrix 8.5x20cm PCB? This prototype circuit board is designed for makers and engineers who want to quickly develop Arduino prototypes and projects. It offers great flexibility in developing both simple and complex schematics.

Features:
– Type: Circuit Board Prototyping PCB Universal Matrix
– Dimensions: 8.5 x 20 cm

How to Use the Universal Matrix Prototype PCB?
The prototype PCB is ideal for makers who want to create electronic projects on a flexible base. This universal board provides ample workspace suitable for both simple and complex schematics.

What You Need:
– Arduino Uno or compatible
– Connection for Arduino (Jumpers)
– Punching Tool
– Pinette

Steps:
1. Prepare your schematic design project.
2. Set the PCB dimensions in the circuit board drawing software.
3. Punch holes where components will be inserted.
4. Place components on a part of the PCB using pinette to keep them in place.
5. Check the connection between Arduino and the PCB using jumpers.
6. Test the interface with a simple test sketch.
7. Add further components or connections if necessary.
8. Improve your project by adding sensors or other modules.

Mini Project:
Create a small LED interface that changes colour based on commands from a button.

Common Mistakes:
– Not verifying the connection between Arduino and PCB.
– Omitting to test the project before final assembly.
– Inserting components without using pinette.
– Ignoring datasheet specifications during installation.
