Optocoupler Isolation Module 1 Channel 220V AC

Description

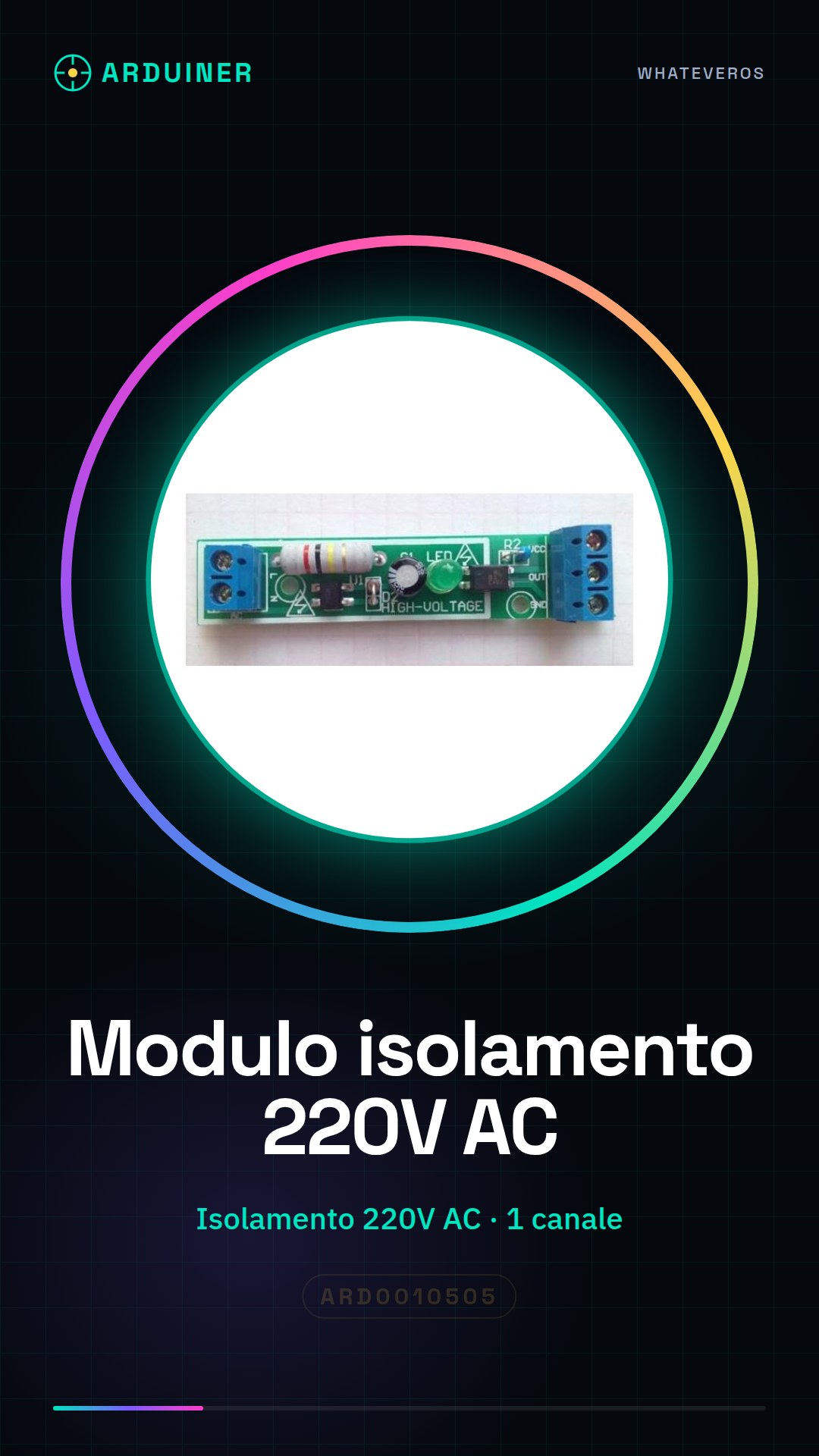

What is the Optocoupler Isolation Module? The optocoupler isolation module ARD0010505 is a critical component to protect sensitive circuits from unwanted currents and to separate high and low voltage zones. This module offers insulation for 220V AC, ensuring safety in projects requiring management of this voltage level.

Features: Isolate 220V AC

What does it do? The module is ideal for projects such as relay or motor control, creating an automatic control system for an outdoor light that turns on and off based on a timer. It is compatible with Arduino and ESP.

How to use the Optocoupler Isolation Module 1 Channel 220V AC: This optocoupler isolation module is a critical component to protect sensitive circuits from unwanted currents and to separate high and low voltage zones. Ideal for projects requiring safe management of 220V AC, such as relay or motor control.

What you need:
– Arduino Uno
– Relay
– Connection cable

Steps:
1. Connect the optocoupler module input to a digital pin on the Arduino.
2. Verify the correct polarity of the connectors and connect the relay to the output of the optocoupler module.
3. Write an Arduino sketch to control the activation of the relay via the optocoupler module.

Example Code:
const int relayPin = 7; // Connect this pin to the opto-isolator module
void setup() {
pinMode(relayPin, OUTPUT);
}
void loop() {
digitalWrite(relayPin, HIGH); // Activate the relay
delay(1000);
digitalWrite(relayPin, LOW); // Deactivate the relay
delay(1000);
}

Mini-project: Create an automatic control system for an outdoor light that turns on and off based on a timer.

Common mistakes:
– Connecting the polarity of the optocoupler module incorrectly
– Not checking the datasheet for relay specifications
– Ignoring electrical insulation requirements
– Using voltages higher than those compatible with the module

Recommended accessories:
– 5V SPDT Relay
– Arduino Uno R3
– Prototype breadboard
– Connection cables

Frequently Asked Questions: Can the optocoupler handle currents above 20mA? Check the datasheet for the maximum current specification.
