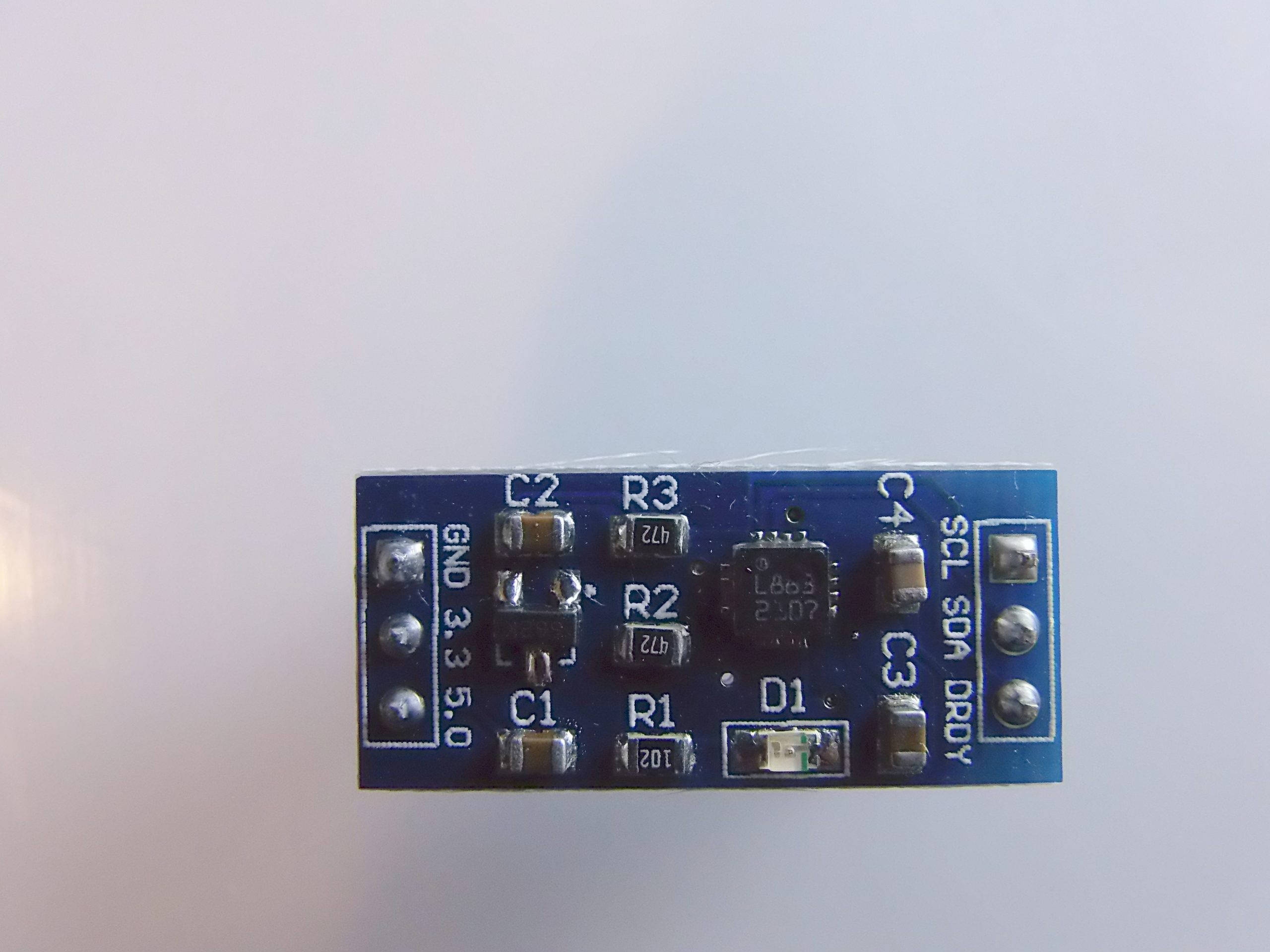

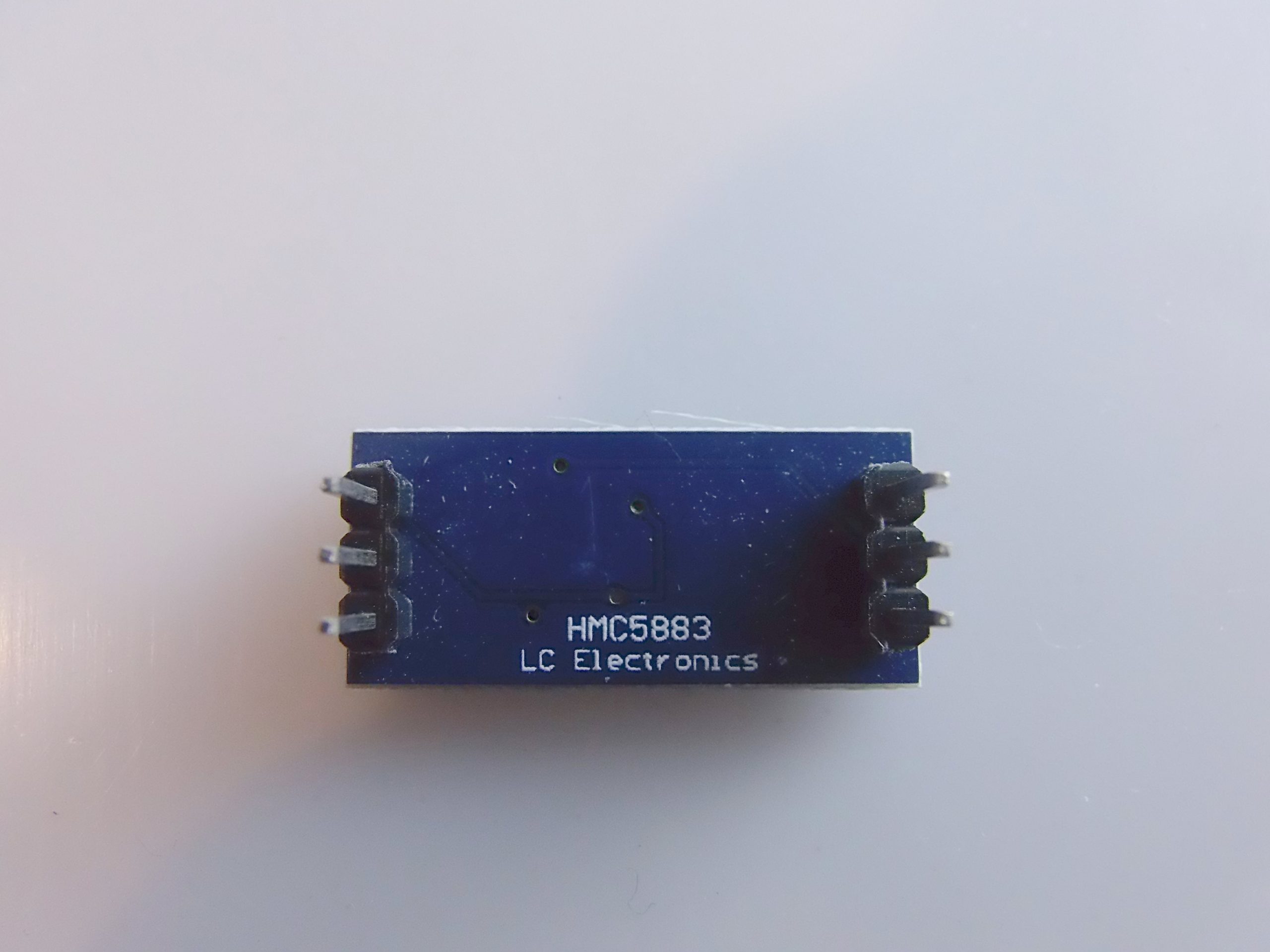

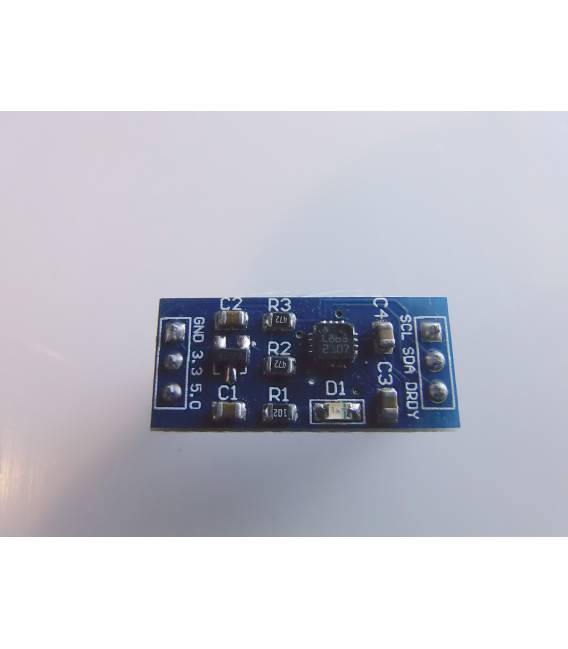

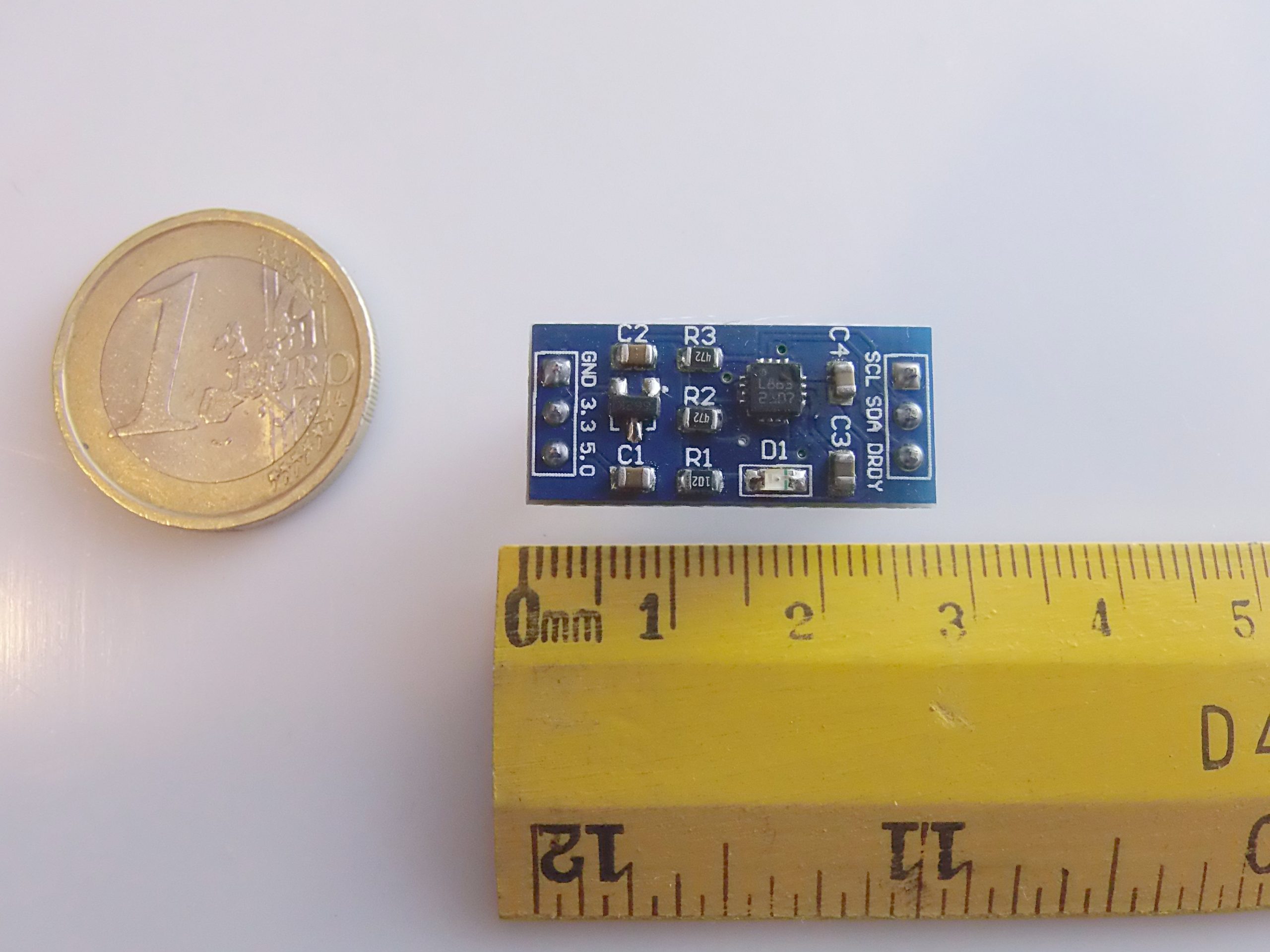

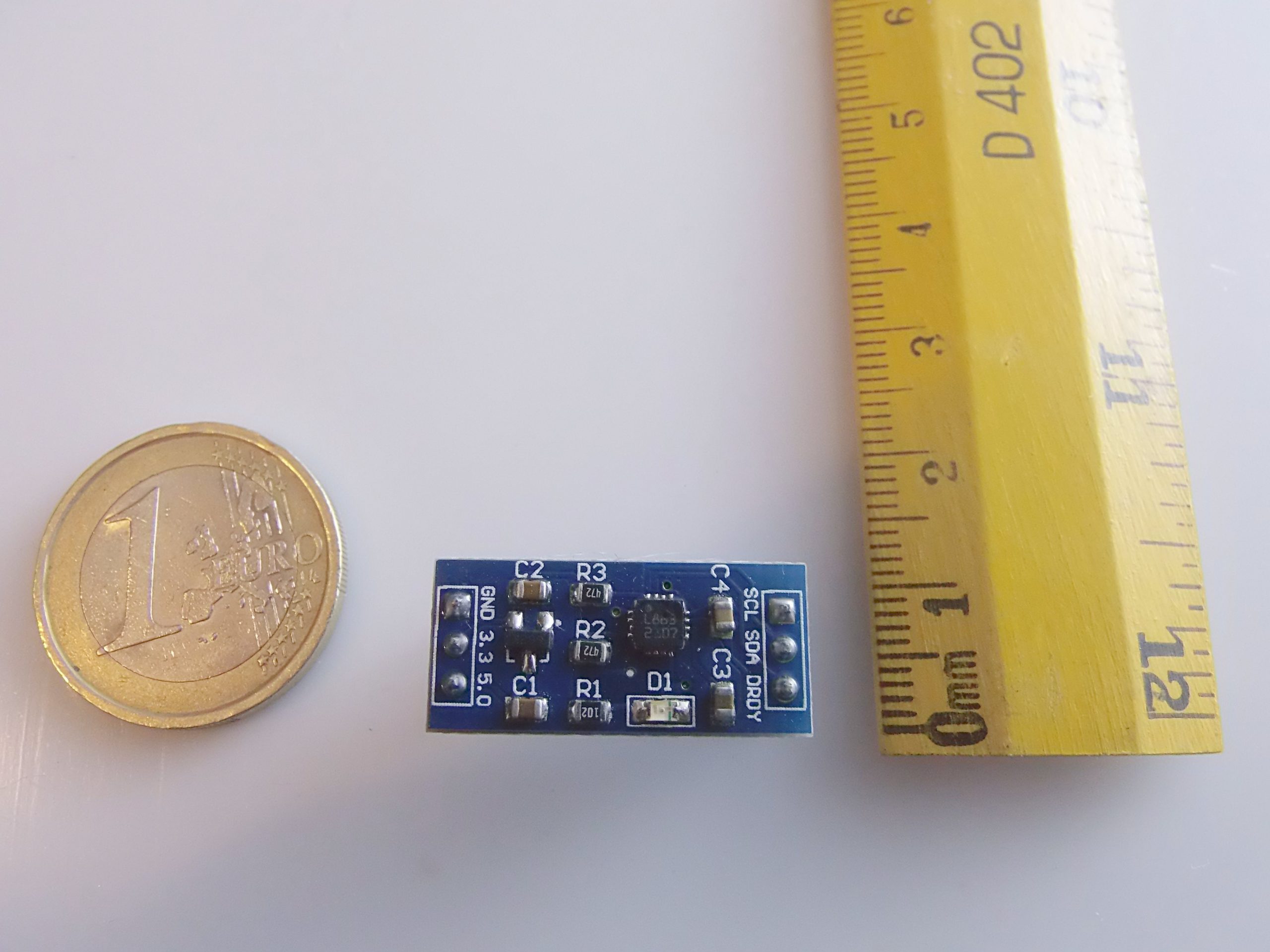

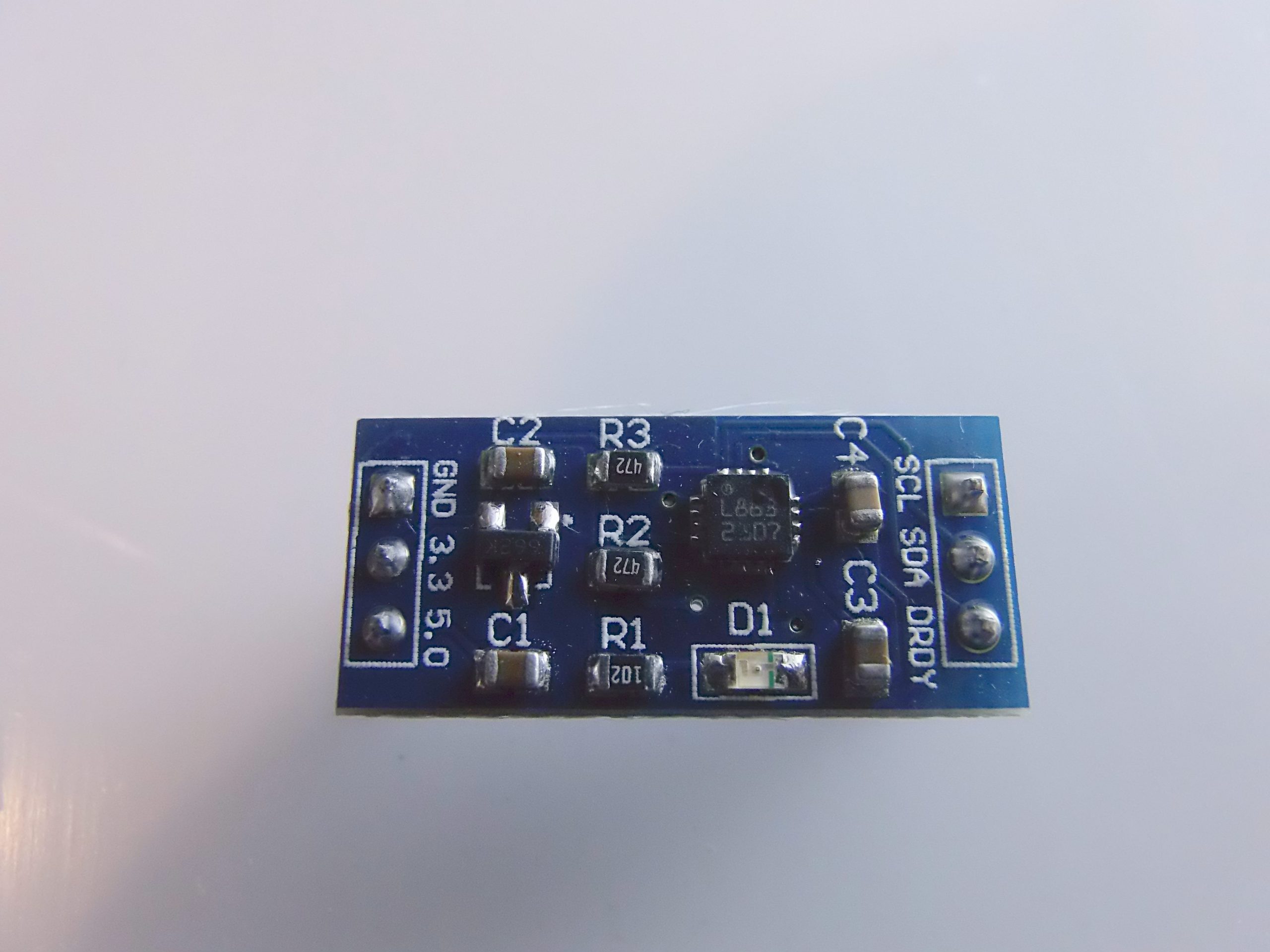

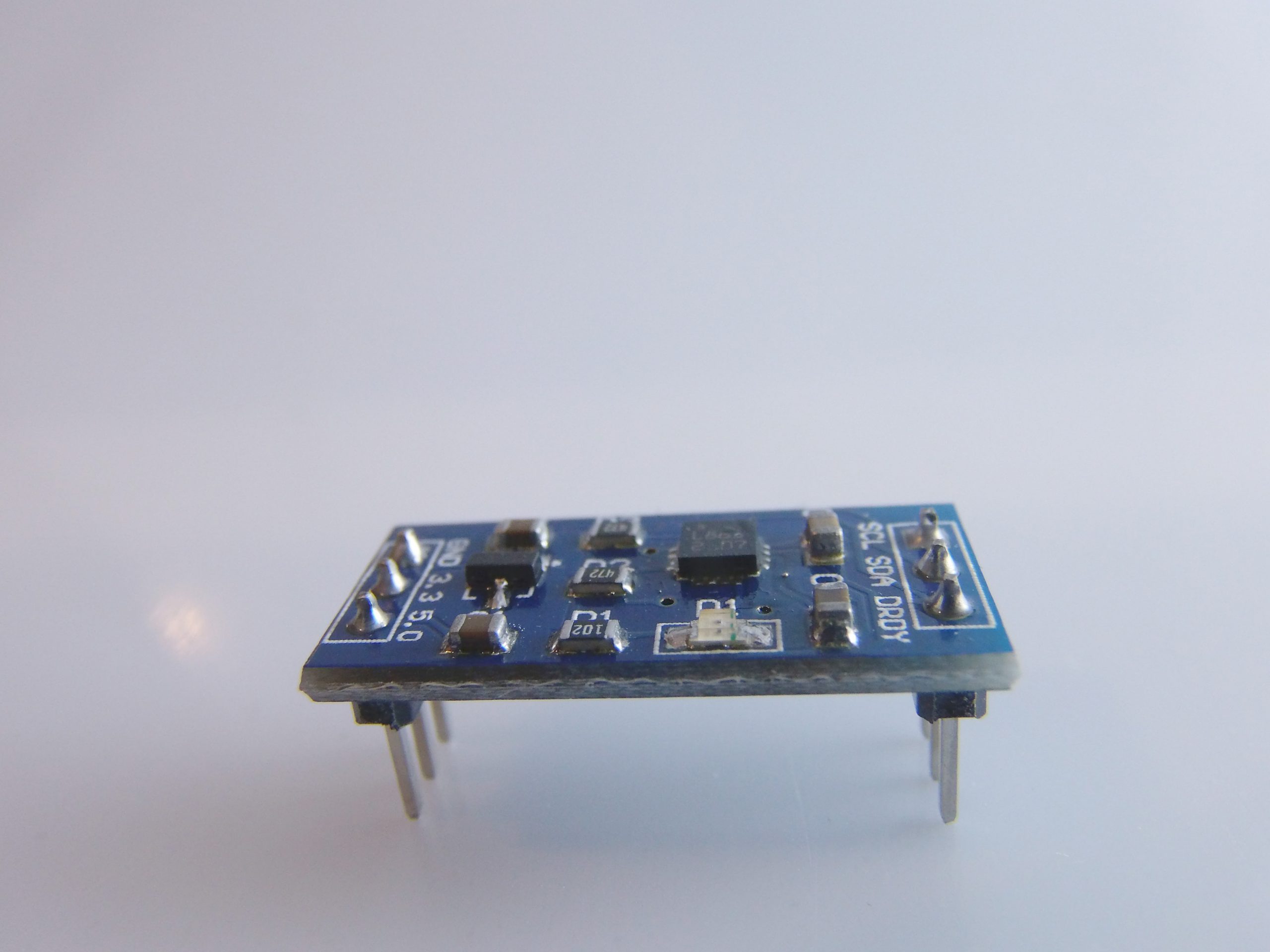

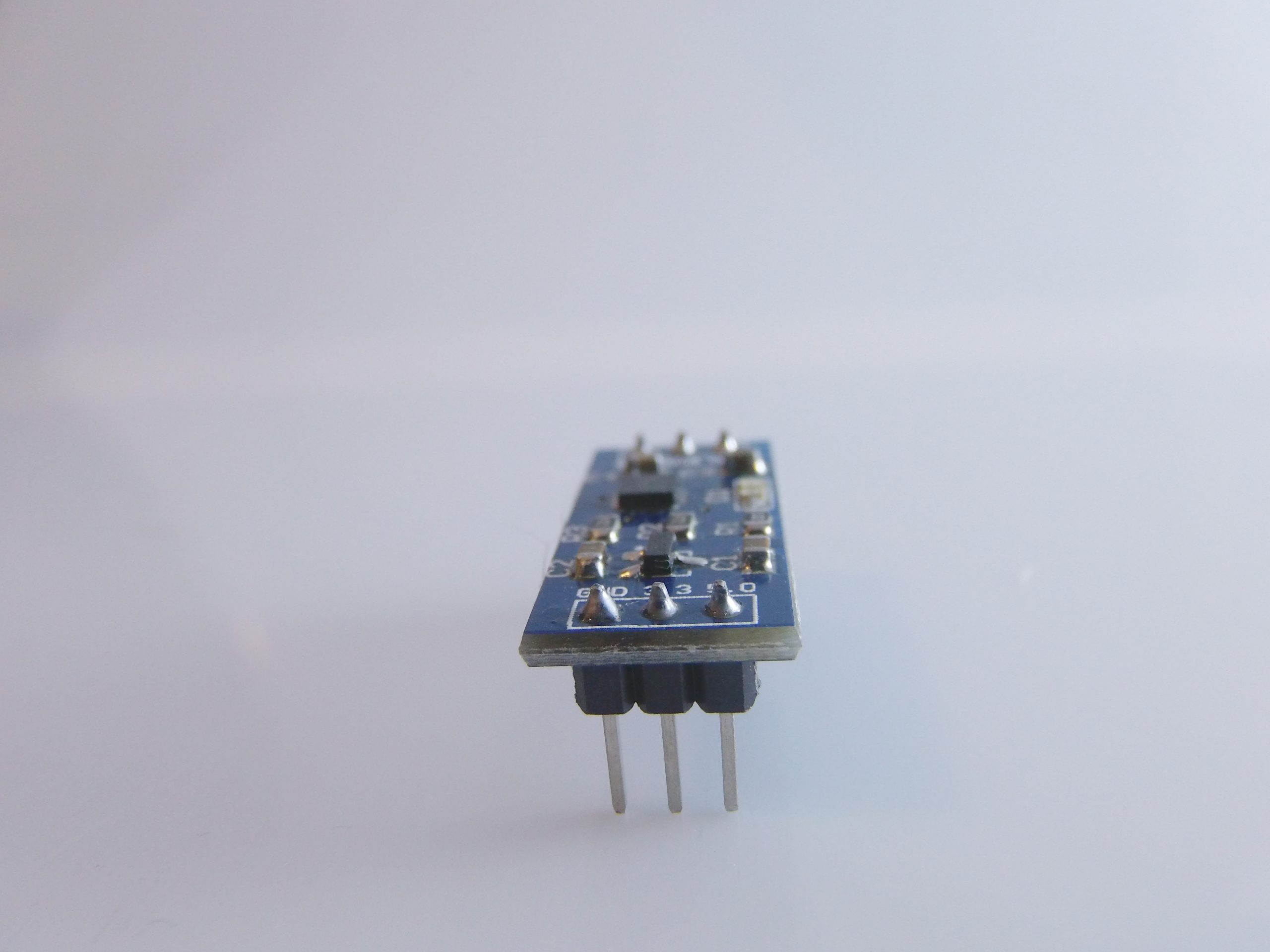

Digital Compass HMC5883L for Arduino

Description

The HMC5883L is a digital compass module for Arduino that allows you to measure the Earth’s magnetic field and determine the direction of north. It is ideal for navigation projects, magnetic field measurements, and applications requiring orientation knowledge. Features: Determines the direction of north. SKU: ARD0011. Price: €5.47. Categories: Gyroscopes / Accelerometers / Magnetometers, Movement. What it’s used for: Useful for projects such as drones, robots, and improved GPS systems. It can be used to create a simple navigation system for a mobile robot that automatically orients itself towards north. Tutorial: How to use the HMC5883L Digital Compass for Arduino The HMC5883L is a powerful digital magnetometer that enables the determination of the direction of north. It is ideal for projects such as drones, robots, and improved GPS systems. What you need: Arduino Uno, USB Type-B cable, Arduino IDE. Steps: Connect the HMC5883L module to the I2C interface of the Arduino (VCC to 3.3V or 5V, GND to GND, SDA to A4, SCL to A5). Install the Adafruit_HMC5883 library via the Arduino IDE. Upload the example sketch provided by the library to your Arduino. Obtain direction data from the HMC5883L module using the library functions. Verify the correct sensor configuration using the begin() method with desired parameters (refer to the datasheet). Monitor the output via Serial Monitor to check if the values are consistent and aligned with geographical coordinates. Adjust any offsets or module sensitivity as needed for your project. Implement the north direction in your project, for example, to orient a drone. Example code: // Include the HMC5883L library #include #include // Initialize the sensor Adafruit_HMC5883_Unified compass = Adafruit_HMC5883U(1); // Check datasheet for correct parameters void setup() { Serial.begin(9600); if (!compass.begin(1)) { while (1) {} } } void loop() { sensors_event_t event; compass.getEvent(&event); Serial.print(event.magnetic.x); Serial.print(
