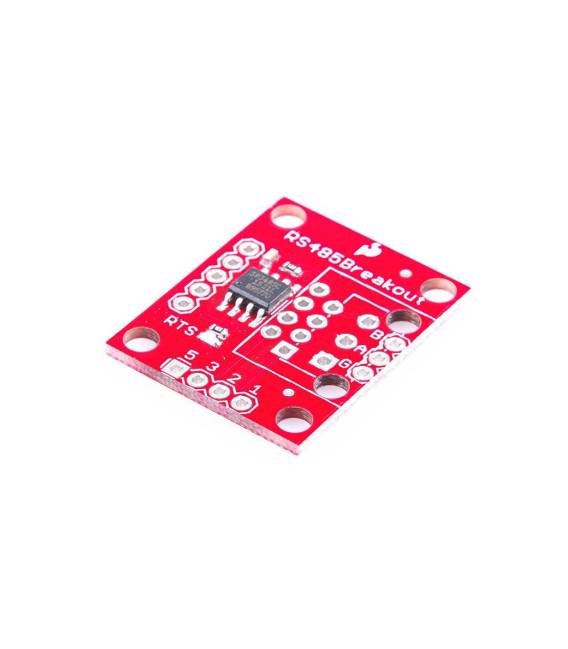

Communication Module Serial to RS485 Converter SP3485 3.3V

Description

What is it The Serial to RS485 Converter SP3485 3.3V is a device that allows the conversion of serial UART communication to RS485 format, using a 3.3V power supply. Features UART to RS485 Converter Voltage: 3.3V Ideal for Arduino modules and embedded systems What is it used for This module is used to connect devices on a network at a distance, making it possible for industrial networks communication. It is useful for remote monitoring projects such as a temperature monitoring system with a sensor and LCD display. Tutorial: How to use SP3485 The SP3485 module converts serial UART communication to RS485, ideal for connecting devices at a distance on industrial networks. Useful for makers and designers. What is needed Arduino or compatible microcontroller RS485 cable SP3485 module datasheet Fuses (optional) Steps 1. Check the module specifications on the datasheet. 2. Connect VCC and GND to 3.3V and GND of the Arduino. 3. Connect TX of the Arduino to RX of the SP3485. 4. Connect RX of the Arduino to TX of the SP3485. 5. If necessary, add a fuse between VCC and GND. 6. Check the correct polarity of the RS485 connectors. 7. Load a simple sketch to test the communication. 8. Test the RS485 connection with another device. Example code “` void setup() { Serial.begin(9600); SP3485.begin(); } void loop() { if (Serial.available()) { SP3485.write(Serial.read()); } } “` Mini-project Create a remote temperature monitoring system with a temperature sensor and an LCD display. Common errors Connecting VCC to 5V instead of 3.3V. Omitting the check of RS485 polarity. Forgetting to add a fuse. Not testing the RS485 connection with another device. Recommended accessories Temperature sensor DS18B20 LCD 16×2 RS485 cable Fuses Frequently asked questions How can I test the RS485 connection? Connect another RS485 device and verify communication using an oscilloscope or serial monitoring software. Does the module support other protocols? Check the datasheet for further information. What are the minimum requirements for the Arduino? The Arduino must support the SP3485 library and have at least 3.3V power. Can I use the module with a different power supply than 3.3V? Check the datasheet for power supply specifications.
