10DOF 9-Axis Gyroscope Accelerometer Magnetometer Pressure Module L3G4200D ADXL345 HMC5883L BMP085

Description

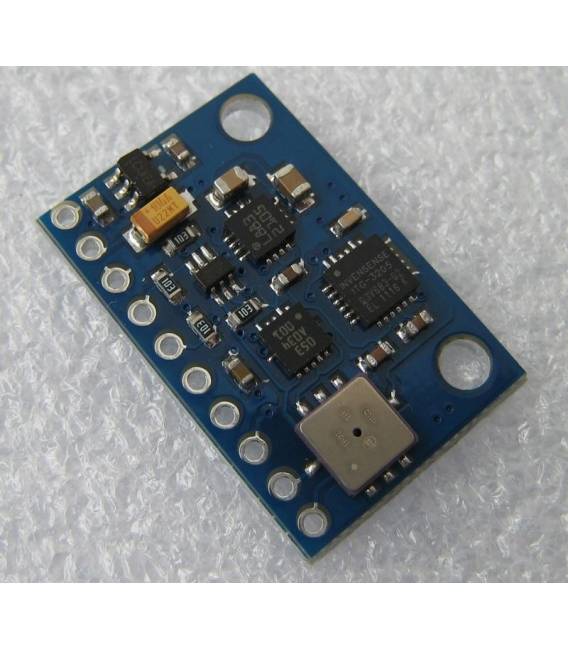

The 10DOF 9-Axis module is a multifunctional sensor integrating gyroscope, accelerometer, magnetometer, and barometer. It is ideal for monitoring movement and orientation in electronics and robotics projects. Features: 9-axis measurement (3 gyroscope, 3 accelerometer, 3 magnetometer) Components: L3G4200D (gyroscope), ADXL345 (accelerometer), HMC5883L (magnetometer), BMP085 (barometer) SKU: ARD00535 Price: €10.43 What it’s used for: The 10DOF module is ideal for robotics, drone, and IoT projects requiring precise position, orientation, and altitude measurement. Examples of use include drone stabilization, robot navigation, and motion sensor creation. Tutorial: How to use 10DOF L3G4200D ADXL345 HMC5883L BMP085 The 10DOF module combines a gyroscope, accelerometer, magnetometer, and barometer to provide position, orientation, and altitude data. Ideal for robotics, drone, and IoT projects. What you need: Arduino Uno, USB A-MicroB cable, Arduino IDE Steps: Connect the module to the I2C port of the Arduino (VCC to 3.3V or 5V, GND to ground). Open the Arduino IDE and install the Adafruit_LSM303 and Adafruit_BMP085 libraries. Upload the 10DOF module example sketch (found in the Adafruit library). Check that the data is correctly displayed in the Arduino IDE serial monitor. If necessary, adjust the module settings according to the datasheet. Experiment with various projects using the data collected by the 10DOF module. Example code: // Include the library #include #include // Initialize the module Adafruit_LSM303_Accel lsm; void setup() { Serial.begin(9600); } void loop() { // Read data from the module and display it in the serial monitor } Mini-project: Build a small drone with the 10DOF module to stabilize orientation during flight. Common errors: Incorrect module power supply. Incorrect Arduino library configurations. Incorrect I2C connection. Incorrect interpretation of sensor data. Recommended accessories: Arduino Uno, 3D printer for building the drone structure, LiPo battery, BLDC motor with propeller
