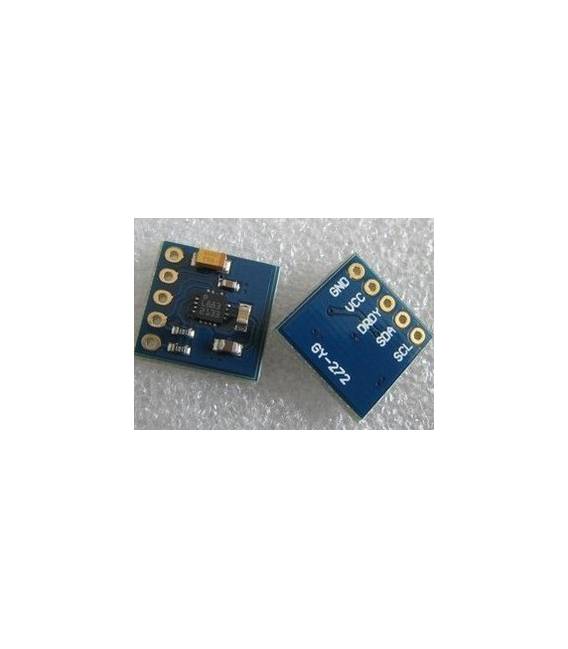

GY-272 3V Digital 3-Axis IIC Compass Module (HMC5883L)

Description

What is the GY-272 HMC5883L Module? The HMC5883L is a 3-axis digital compass module using the IIC interface to measure Earth’s magnetic field. This device is ideal for orientation and movement projects, such as creating digital compasses or drone stabilisers.

Features:
– 3-Axis Digital Compass IIC Module
– Compatible with Arduino and ESP

What does it do? HMC5883L modules are used in projects requiring magnetic direction determination. Applications include digital compasses, drone stabilizers, and general orientation systems.

Tutorial: How to Use the HMC5883L 3-Axis Digital Compass Module The HMC5883L is a 3-axis digital compass module that measures Earth’s magnetic field direction, useful for creating orientation systems like digital compasses and drone stabilizers. This module is ideal for beginner and intermediate maker projects looking to add orientation functionality.

What do you need?
– Arduino or compatible microcontroller
– USB cable
– I2C library

Steps: Connect the VCC of the module to 3V or 5V on the Arduino. Connect GND of the module to the Arduino’s GND. Connect SDA and SCL of the module to respective pins on the Arduino (usually A4 and A5). Open Arduino IDE and install Wire.h or Adafruit_Sensor library. Include HMC5883L library in your code. Create an object of class HMC5883L. Configure the sensor (check datasheet for details). Read and print magnetic field measurements.

Example Code:
/* * Basic example code */ #include #include HMC5883L hmc; void setup() { Wire.begin(); Serial.begin(9600); if (!hmc.init()) { Serial.println(“Error initializing the sensor.”); while (1); // block program } } void loop() { float x, y, z; hmc.getHeading(&x, &y, &z); Serial.print(x); Serial.print(“, “); Serial.print(y); Serial.print(“, “); Serial.println(z); }

Mini Project: Build a digital compass that displays magnetic direction on an I2C OLED display connected to the Arduino.
Common Mistakes: Not verifying proper module power. Omitting necessary sensor library inclusion. Incorrectly configuring sensor registers (check datasheet). Ignoring magnetic data compensation in magnetically disturbed environments.
