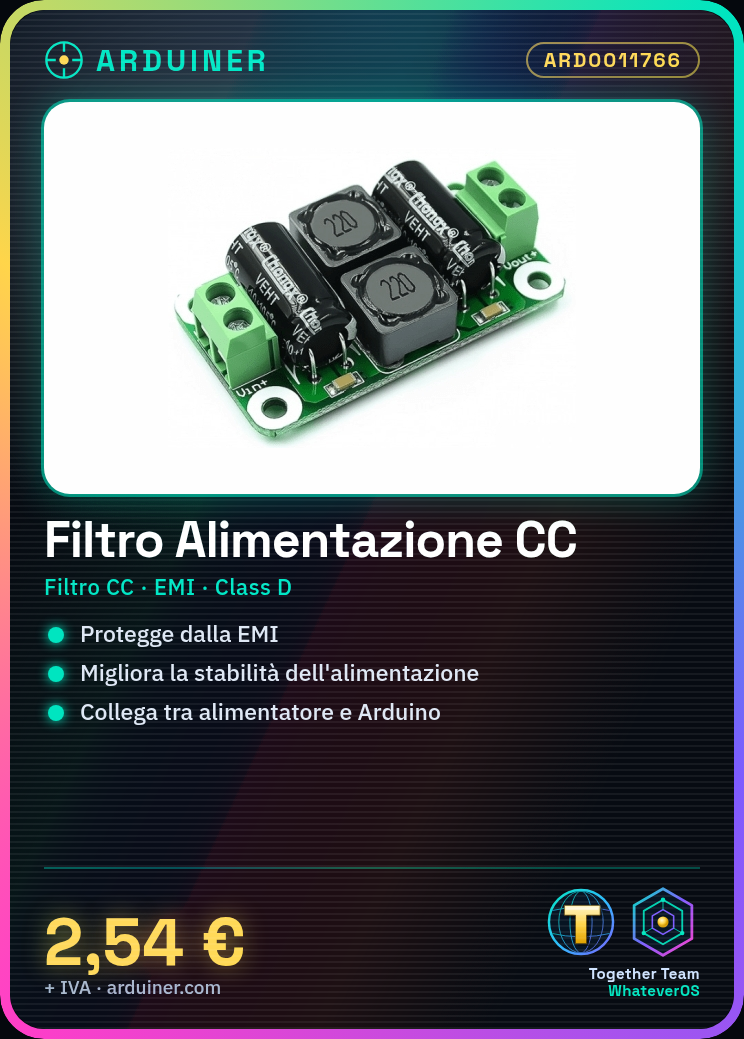

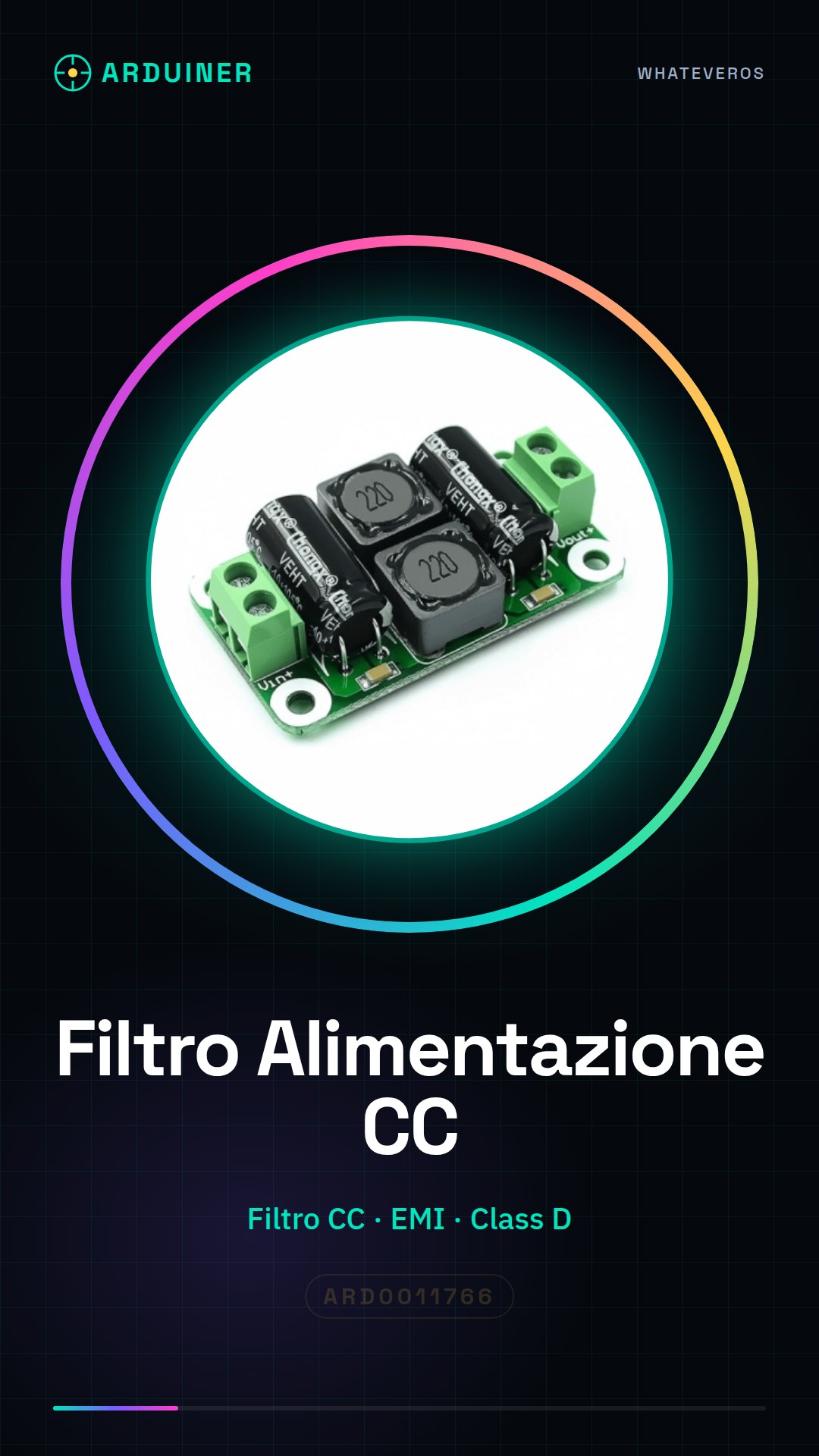

Power Supply Filter Board / Power Supply EMI Suppression Board / Class D Power Amplifier Interference Suppression Board

Description

Designed to suppress electrical interference in class D power amplifiers, this power supply filter board also provides EMI suppression for the power supply. SKU: ARD0011766 Price: £2.27 Type: Power Supply Filter Function: EMI Suppression What it does This filter board is useful for protecting your circuitry from electrical interference, improving power supply stability. It can be used to create a simple class D power amplifier with an Arduino microcontroller and a speaker. Connect the power supply filter board between the power supply and the Arduino to achieve better stability. How to use the power supply filter board The power supply filter board is essential for protecting your circuitry from electrical interference, improving power supply stability. Useful for beginners and intermediates working with electronic circuits. What it serves Power Supply Filter Arduino or electronic circuit Power Supply DC Multimeter Steps 1. Check the maximum current specifications on the datasheet. 2. Connect the DC power supply to the filter board. 3. Connect the filtered power supply to your electronic circuit. 4. Measure the output voltage with a multimeter. 5. Verify the filter’s capture frequency on the datasheet. 6. Install the filter between your power supply and the circuit. 7. Check the power supply stability with an oscilloscope. 8. Verify the output voltage with a multimeter. Mini-project Build a simple class D power amplifier with an Arduino microcontroller and a speaker. Connect the power supply filter board between the power supply and the Arduino to improve stability. Common errors Connecting the filter after the Arduino. Forgetting to check the output voltage. Not using an oscilloscope to check stability. Not following the specifications on the datasheet. Recommended accessories Oscilloscope Multimeter DC Power Supply Arduino Microcontroller Frequently asked questions Does the filter affect the output voltage? Check the maximum output voltage on the datasheet. Can I use the filter with any DC power supply? Check the maximum current specifications on the datasheet. Is the filter necessary for all projects? Recommended for projects requiring stable power supply.
