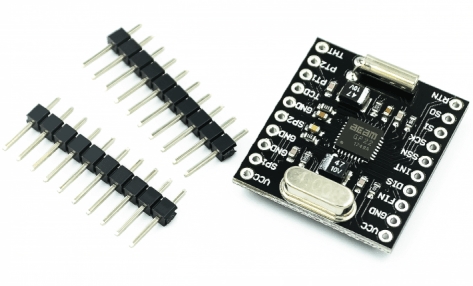

TDC-GP22 Universal 2-Channel Time to Digital Converter Breakout

Description

What is the TDC-GP22 2-Channel Breakout? The TDC-GP22 2-Channel Breakout is a universal time-to-digital converter. It allows for precise timing measurements in various electronic projects. Features: 2 channels, Universal time-to-digital converter, High measurement precision. What does it do? Ideal for projects requiring accurate temporal measurements such as frequency counters or impulse analysis. Can be used to create an accurate frequency counter that measures the frequency of an electronic signal or measure the time between two impulses and calculate the frequency. Tutorial: How to use TDC-GP22 Breakout The TDC-GP22 Breakout is a module for measuring trace times with high precision, ideal for projects requiring accurate temporal measurements such as frequency counters or impulse analysis. What you need: Arduino Uno or similar, USB cable, Arduino IDE software, connection cable Steps: Connect the TDC-GP22 module to the Arduino using appropriate connectors. Open the Arduino IDE and install the necessary library for the TDC-GP22. Write and upload a test sketch to verify correct installation. Configure the input/output pins of the TDC-GP22 in the Arduino code. Measure the time between two events using the time-to-digital conversion method. Display results on the Arduino serial monitor. Obtain high-resolution trace times. Verify results with external measurement tools for validation. Example Code: /* Example code for the TDC-GP22 Breakout */ #include TDCGP22 tdc; void setup() { Serial.begin(9600); tdc.begin(); } void loop() { float time = tdc.measureTime(); Serial.println(time); } Mini-project: Build an accurate frequency counter that measures the frequency of an electronic signal. Use the TDC-GP22 to measure the time between two impulses and calculate the frequency. Common mistakes: Not verifying correct library installation, Incorrectly configuring input/output pins of the TDC-GP22, Not validating accuracy with external measurement tools, Using a wide variety of signals without checking module specifications. Recommended accessories: Arduino Uno, USB cable, Arduino IDE software, connection cable Frequently Asked Questions: What is the time resolution of the TDC-GP22? Check the TDC-GP22 datasheet. How can I optimise measurement accuracy? Use a stable reference signal and reduce noise.
