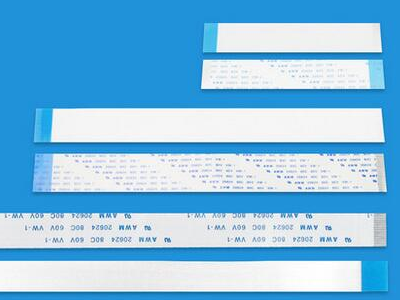

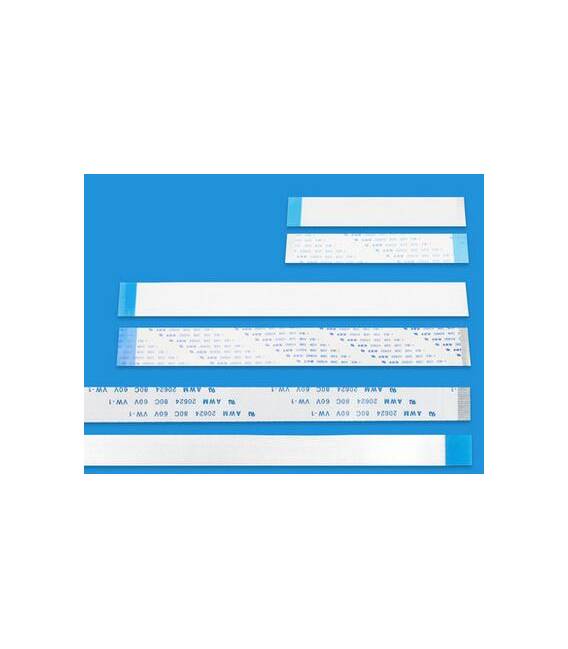

Flexible Flat Ribbon Cable FFC/FPC 15P 1.0 Pitch 1 Meter A-B Cable

Description

The FFC/FPC ribbon cable is designed for connecting printed circuit boards to external components in electronic and hardware projects. It features 15 pins with a 1.0mm pitch and measures 1 meter in length. This cable is ideal for applications requiring flexible and reliable connections between components. Here’s a quick guide on how to use it:

**Steps**
1. Measure and mark 1 meter of the ribbon cable.
2. Refer to the datasheet to confirm the correct pitch (1.0mm).
3. Use a precision cutter to make a clean cut.
4. Prepare the components for connection.
5. Connect the ribbon to the components using the appropriate contacts.
6. Test the connection with a multimeter.
7. If necessary, cover the connections to protect them.

**Mini-project**
Build a simple LED power circuit by connecting the circuit board to a potentiometer with the FFC/FPC ribbon cable.

**Common Mistakes**
– Connecting the wrong contacts.
– Not verifying the pitch before use.
– Not testing the connection.
– Not covering the connections.

**Recommended Accessories**
– Precision cutter
– Multimeter
– Test connections

**FAQ**
– Can the FFC/FPC ribbon be folded? Yes, but avoid tight folds to prevent damage to the contacts.
– What components can be connected with this ribbon? You can connect printed circuit boards to external components, such as microcontrollers, sensors, or displays.
– Is the FFC/FPC ribbon water-resistant? No, it is not water-resistant. Use it in dry environments.
– Can I use the FFC/FPC ribbon to connect components on different planes? Yes, but ensure the planes are aligned to avoid incorrect connections.
