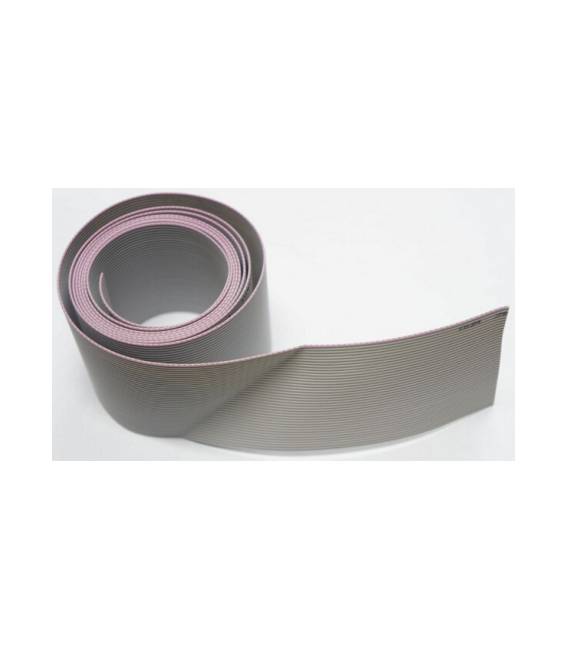

Flat Cable 1m FC-40P 40 Pins 2.54mm Pitch

Description

Tutorial: How to Use FC-40P Flat Cable. The 1m FC-40P flat cable with 2.54mm pitch is perfect for connecting electronic components on a breadboard or between different boards, ensuring a solid signal integrity. What You Need: Arduino Projects, Circuit Connections, Screen Printing, Prototype Testing. Steps: Verify compatibility of the flat cable with the connectors or boards you wish to connect. Insert one end of the cable into the starting connector or board. Connect the other end of the cable to the recipient, ensuring that the contacts are well inserted and secure. Test the continuity of the connection using a multimeter in continuity mode. If necessary, repeat the process to connect other components or boards. Mini-Project: Create a Sensor Network with Arduino: Connect various sensors to an FC-40P flat cable and send the collected data to a central microcontroller. Common Errors: Inserting the cable without verifying connector compatibility. Not checking the continuity of the connection after installation. Using the cable in extreme environmental conditions that may damage it. Recommended Accessories: IDC 40 Pin Connector, Large Breadboard, Colored Signal Multi-External, Connector Insulation Rings. Frequently Asked Questions: Is the FC-40P flat cable compatible with all connectors? Check the connector datasheet to ensure compatibility. How can I protect the cable from environmental damage? Use a protective coating or cable sleeve.
