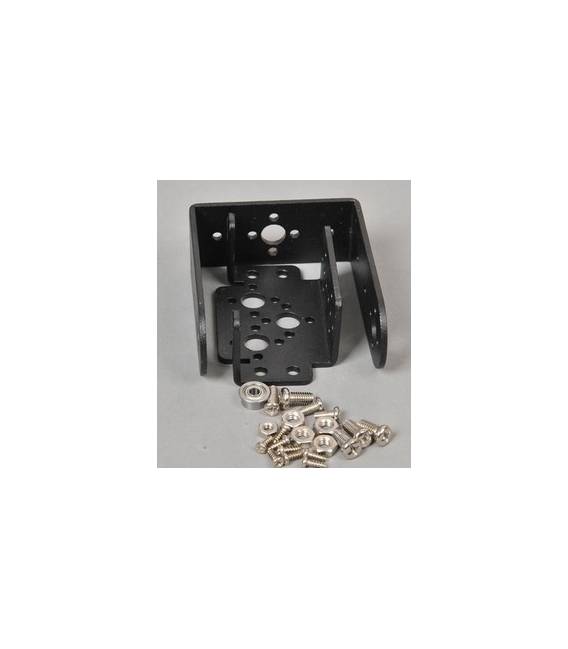

DIY Bracket with Base for MG99X Motor Connection for Robots

Description

What is it? The bracket with base for MG99X motor connection is a crucial component for building robots and mechanical prototypes. This element simplifies the integration of the MG99X servo motor into various types of projects, making installation and joint movement easier. Features Dedicated to the MG99X motor Ideally suited for robots and mechanical prototypes What does it do? It facilitates the installation of the MG99X servo motor in various types of robotic joints, allowing for smooth and precise movement. Ideal for projects like robotic arms with three joints controlled by MG99X servo motors. Tutorial: How to use Bracket with base for MG99X motor connection This bracket is designed to facilitate the installation of the MG99X servo motor in various types of robots. Ideal for beginners and intermediate makers who want to create or improve their mechanical creations. What is needed Servo motor MG99X Connection to a microcontroller (e.g., Arduino) Power supply 5V-6V Steps Check the compatibility of the servo motor with the bracket. Connect the servo motor to the bracket base, ensuring a stable and secure position. Connect the servo motor wires to the power and control pins of the microcontroller according to the specifications of the Arduino or other microcontroller used. Check the datasheet for the servo motor’s range of motion to set the rotation instructions correctly in the code. Load the Arduino sketch that controls the servo motor and test its functionality. Adjust the sketch parameters as needed based on project requirements. Example code void setup() { pinMode(9, OUTPUT); } void loop() { myservo.write(45); // rotate the servo motor to 45 degrees delay(1000); myservo.write(90); // rotate the servo motor to 90 degrees delay(1000); } Mini-project Build a robotic arm with three joints (joints) controlled by MG99X servo motors. Each joint uses a bracket to facilitate installation and movement. Common mistakes Incorrect wiring of the servo motor. Insufficient or inadequate power supply. Code settings not matching the servo motor’s range of motion. Recommended accessories Servo motor MG99X Arduino Uno R3 5V Battery for Arduino Frequently Asked Questions Is this bracket compatible with other types of servo motors? Check the dimensions and connection type of your servo motor. An adapter may be necessary. How can I adjust the speed of the servo motor? Modify the values in the Arduino code.
