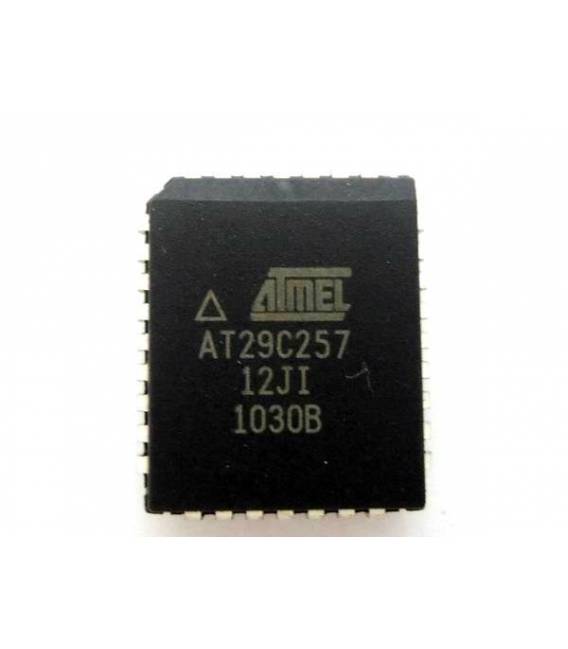

AT29C257-12JI ATMEL NOR Flash Memory Parallel 5V 256Kbit 32K x 8bit 120ns PLCC IC

Description

What is it The AT29C257-12JI is a parallel NOR flash memory produced by ATMEL. This component offers non-volatile data storage in a PLCC (Plastic Leaded Chip Carrier) package. Features: Type: Parallel Flash Memory Voltage: 5V Capacity: 256Kbit (32K x 8bit) Bandwidth: Check datasheet Temporal Speed: 120ns What is it used for The AT29C257-12JI flash memory is suitable for electronic projects like Arduino to save configurations, sensor data, or software code. It is ideal for makers who want to integrate a large storage capacity at a low cost into their prototypes. How to use it AT29C257-12JI Flash Memory This component is useful for makers who want to add a large storage capacity at a low cost to their projects. This memory can be used to save configurations, sensor data, or software code. Required Components Arduino or compatible microcontroller PLCC connector 5V power Supply Verify the compatibility of your microcontroller with the AT29C257-12JI chip. Connect the 5V power supply to the Vcc and GND pins of the PLCC connector. Connect the data signals (D0-D7) to the microcontroller’s data bus. Connect the address lines (A14-A16) to the microcontroller’s address bus. Connect the OE (Output Enable) pin to a microcontroller control pin to select the memory. Verify the connections with a multimeter or oscilloscope. Load a sketch that reads and writes data to the flash memory. Test the reading and writing of data to a variable or temporary file. Example Code // Example Arduino code to access the AT29C257-12JI flash memory void setup() { // Initialize pins connected to the memory } void loop() { // Read and write data to the flash memory } Mini-project Create a data collection device that saves sensor measurements to this flash memory. Common Errors Incorrect data signal connections. Accidental disabling of the memory during access. Incorrect cell formatting. Insufficient or incorrect power supply. Recommended Accessories PLCC connector Digital oscilloscope Multimeter JTAG cable Frequently Asked Questions How can I verify if the data has been saved correctly? Read the data from the memory and compare it with what you wrote. Which microcontrollers support this flash memory? Check the datasheet for specific compatibility.
