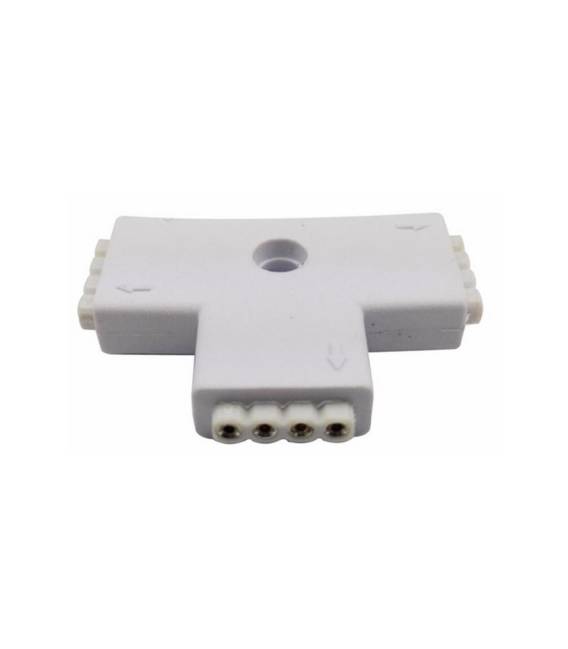

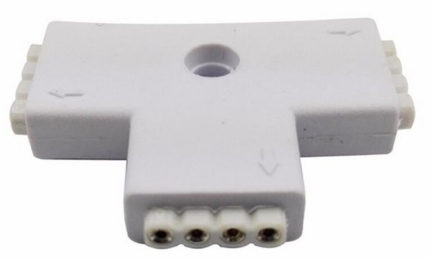

T-Shaped LED Strip Connector 4 Pin 3528/5050

Description

Tutorial: How to use T-shaped LED strip connector 4-pin 3528/5050. This T-shaped connector allows easy connection of 3528 or 5050 LED strips. Ideal for DIY lighting projects. What you need: 3528 or 5050 LED strips, Scotchlock cable clip or clips, cutting tools. Steps: 1. Ensure the connector has 4 pins compatible with LED strips. 2. Cut the power cable to the right length. 3. Attach the cable to the connector using Scotchlock or clips. 4. T-shaped connector: insert the LED strips into the central pin. 5. T-shaped connector: connect the LED strips to the side pins. 6. Check connections with a multimeter. 7. Mount the connector on a holder. 8. Test the connector with a simple LED circuit. Mini-project: Build a small warning signal with 5050 LED strips and a T-shaped connector. In 30 minutes, you can have a light signal that turns on when connected. Common errors: Not checking connections before mounting the connector. Connecting LED strips to only one pin, not two. Skipping the multimeter test. Using unsuitable Scotchlock or clips, risking unstable connections. Recommended accessories: Scotchlock, clips, multimeter, connector holders. Frequently asked questions: Why don’t the LED strips light up? Check the datasheet to ensure the connector supports 3528 or 5050 LED strips. Can I use 2835 LED strips? Check the datasheet to see if the connector supports 2835 LED strips as well. How many LEDs can I connect? Check the datasheet for the maximum current supported.
