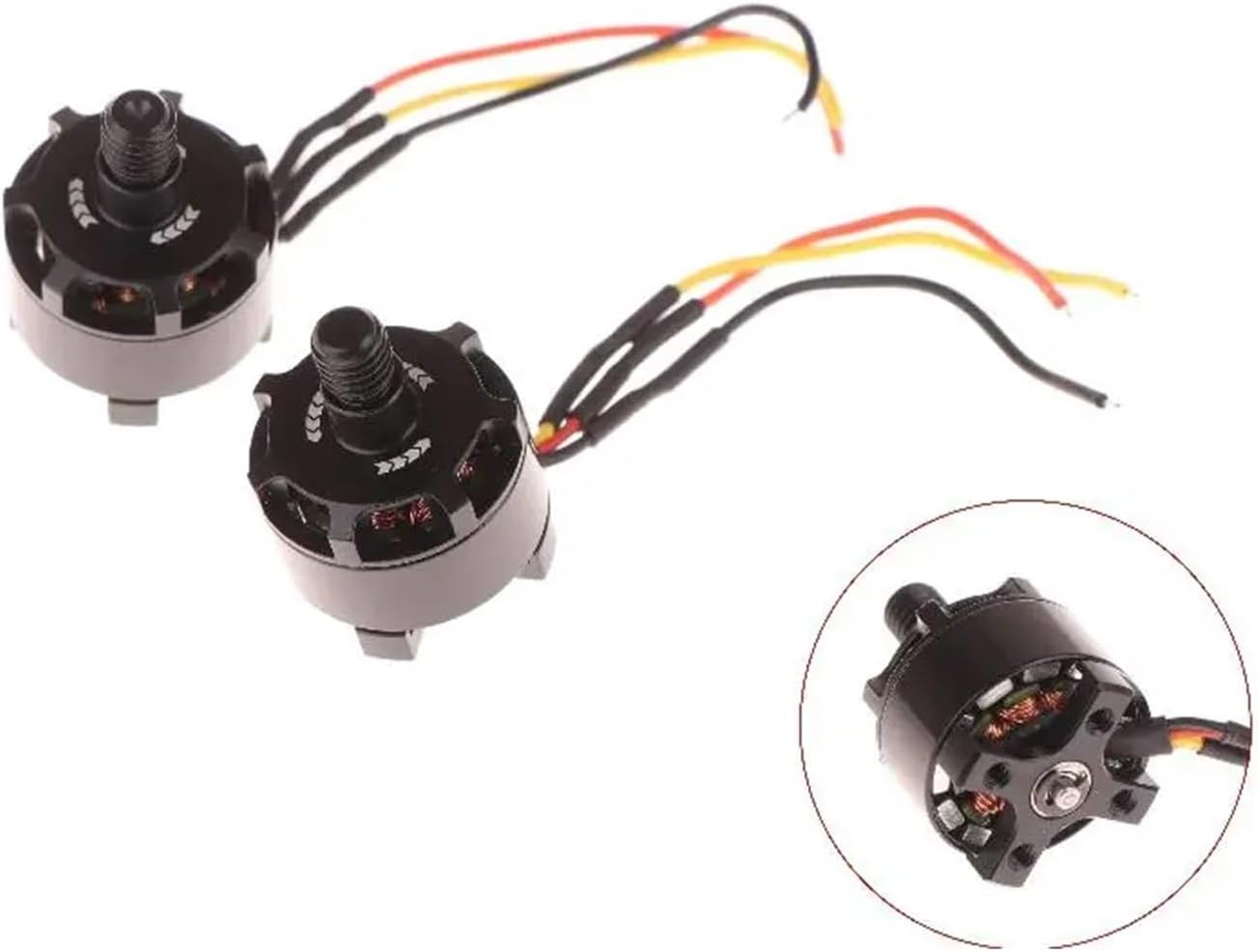

PM 1306 Brushless Drone Motor 3000KV CCW

Description

• KV: 3000KV (RPM per volt).
• Rotation: CCW (Counter-Clockwise – typically indicated by the thread of the propeller shaft).
• Structure: 1306 (Stator dimensions 13mm x 6mm), typically outer rotor design.
• Battery Compatibility: Optimized for LiPo 2S-3S (some models support up to 4S, but 3S is common for this KV).
• Material: Often made of aluminum or composite reinforced materials (like in the PM series of EMAX) to balance weight and durability.
• Shaft: M5 (standard for 3-4 inch propellers).
• Ideal Usage: Small-sized quadcopters (micro FPV) like 130, 150 or 180mm.



Tutorial: How to Use Brushless Drone Motor PM 1306 3000KV CCW

The brushless motor PM 1306 3000KV CCW is ideal for small and medium-sized quadcopters and drones. This motor offers high power in relation to its weight, making it suitable for pilots seeking high performance and maneuverability.

What you need

• Quadcopter or drone
• LiPo battery 2S-3S
• Flight controller
• CCW propeller

Steps

1. Install the motor on the quadcopter, ensuring that the propeller’s thread is CCW (counterclockwise)
2. Connect the motor to the flight controller, verifying correct polarity
3. Connect the battery to the flight controller and the motor
4. Install the CCW propeller on the motor, ensuring a secure attachment
5. Configure the flight controller for the PM 1306 3000KV CCW motor
6. Test the motor with a simulation software or in a safe environment
7. Calibrate the motor to optimize performance
8. Check the balance of rotation between the four motors of the quadcopter

Mini project

Build a small quadcopter test model in 30 minutes using the PM 1306 3000KV CCW motor, a compatible flight controller, and a LiPo 2S battery.

Common mistakes

• Connect the motor with reversed polarity
• Use a CW propeller instead of CCW
• Fail to properly configure the flight controller
• Fail to balance the rotations between the motors

Recommended accessories

• LiPo 2S-3S battery
• Flight controller ESC
• CCW propellers
• Quadcopter frame

Frequently asked questions

What is the KV of this motor?
The KV of this motor is 3000KV, meaning the motor spins 3000 times per volt of voltage.

Which batteries are compatible?
This motor is optimized for LiPo 2S-3S batteries.

How do you install the propeller?
The CCW propeller must be installed on the motor so that it rotates counterclockwise.
