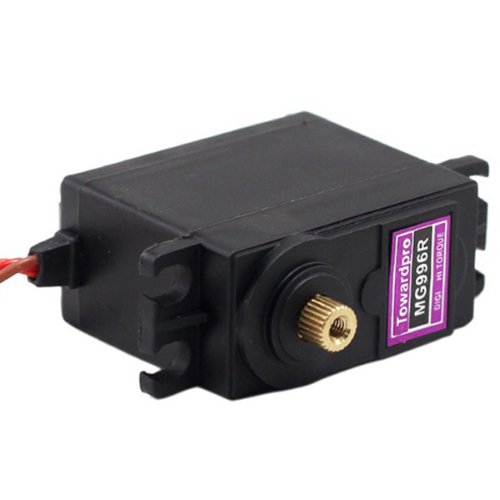

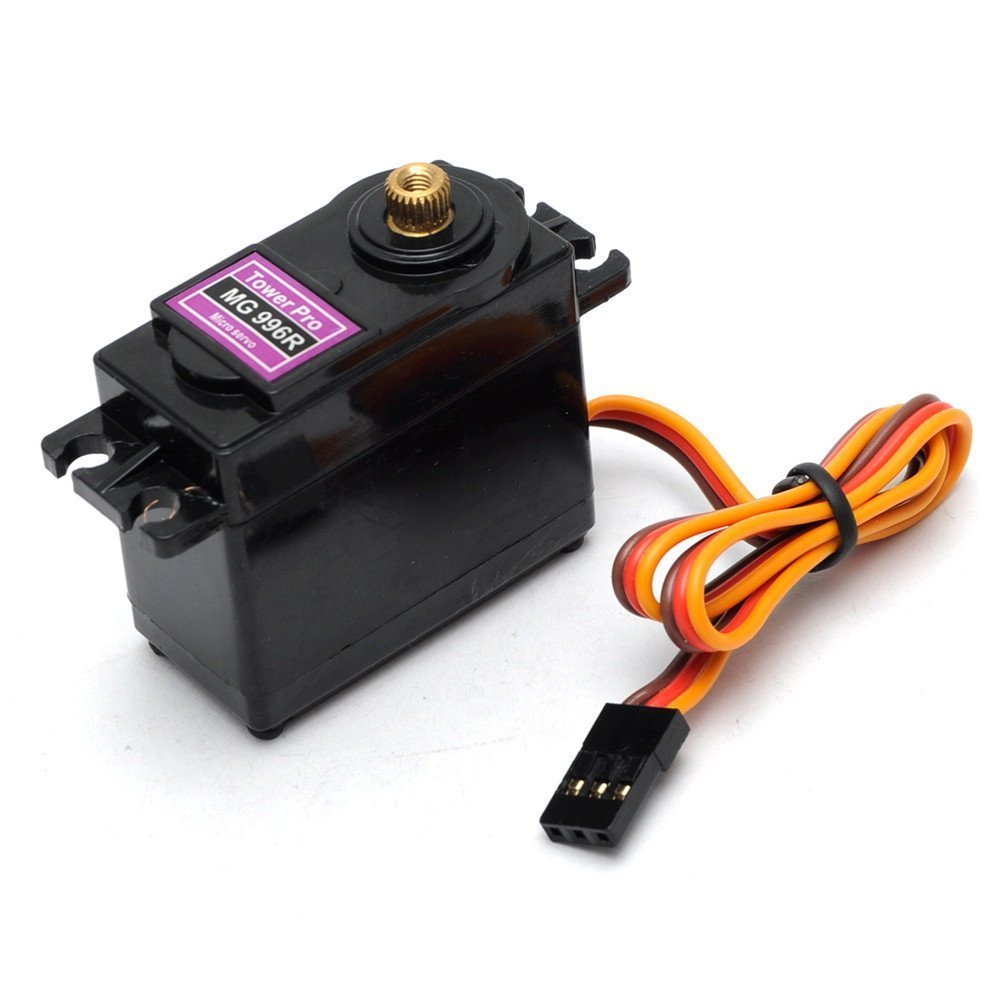

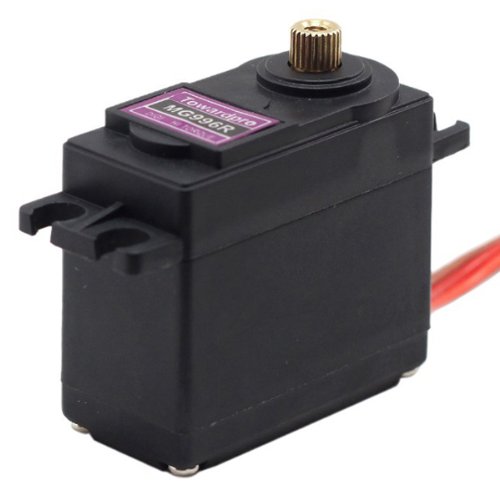

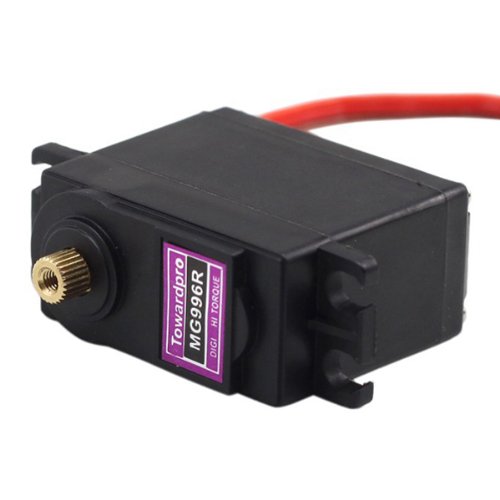

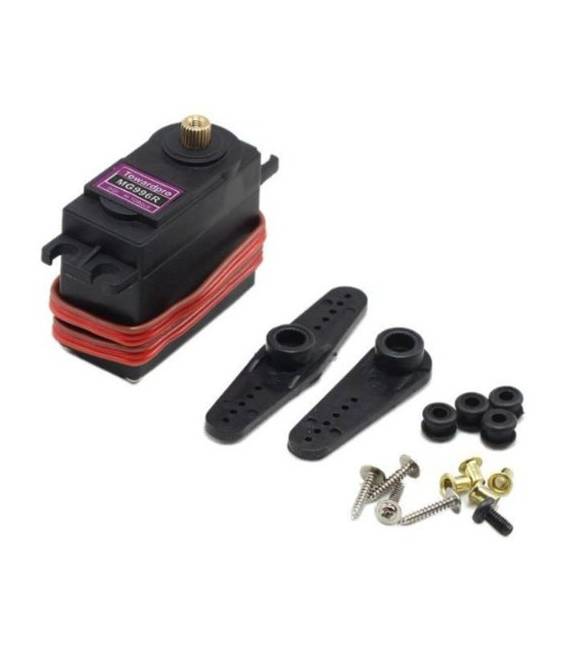

MG996R Digital Metal Gear Servo Motor, 58g, 13Kg-cm Torque for Arduino

Description

MG996R digital metal gear servo motor with a torque of 13kg-cm and weighing 55 grams. Compatible with most standard receiver connectors: Futaba, Hitec, Sanwa, GWS, etc… Ideal for trucks, boats, race cars, helicopters, and planes. Power supply via external adapter. Stable and impact-resistant. – Coreless motor – Metal gears – Double ball bearing – Connector wire length 300 mm Dimensions: 40mm x 19mm x 43mm Weight: 55g Operational speed: 0.17 sec / 60 degrees (4.8V no load) Operational speed: 0.13 sec / 60 degrees (6.0V no load) Stall torque: 13 kg-cm (208.3 oz-in) at 4.8 V Stall torque: 15 kg-cm (208.3 oz-in) at 6V Operating voltage: 4.8 – 7.2 Volts Gear type: all metal gears Wire connector: Heavy Duty, 300mm We have datasheets for all components; if not available in the product download sheet, contact us via the contact form and we will publish it as soon as possible on our website. Tutorial: How to use MG996R The MG996R is a robust digital servo motor ideal for robotics and automation projects. Useful for beginners and intermediates. What you need Arduino Power cable 1kΩ resistor Wire conductors Steps 1. Mount the servo on a stable base. 2. Connect the power cable to the servo. 3. Connect the wires to the servo (red +, blue -). 4. Connect the resistor between the 5V pin and the control pin. 5. Upload code to Arduino. 6. Control the servo movement with the code. 7. Test the maximum and minimum rotation angles. 8. Adjust the servomotor for your project. Example Code “` #include Servo myservo; void setup() { myservo.attach(9); } void loop() { myservo.write(90); delay(1000); myservo.write(0); delay(1000); } “` Mini-project Build a simple robotic arm with MG996R that moves a piece of wood. Common mistakes Incorrect pin connections. Omitting the resistor. Improperly adjusting the servomotor. Not testing movement before using the servomotor. Recommended accessories Arduino UNO Wire conductors 1kΩ resistor Mounting base Frequently Asked Questions How can I adjust the rotation angle? Check the datasheet for exact values, but generally use values between 0 and 180. Does the servo work with batteries? Check the datasheet for power supply voltage. Can I connect multiple servomotors? Yes, but ensure you have
