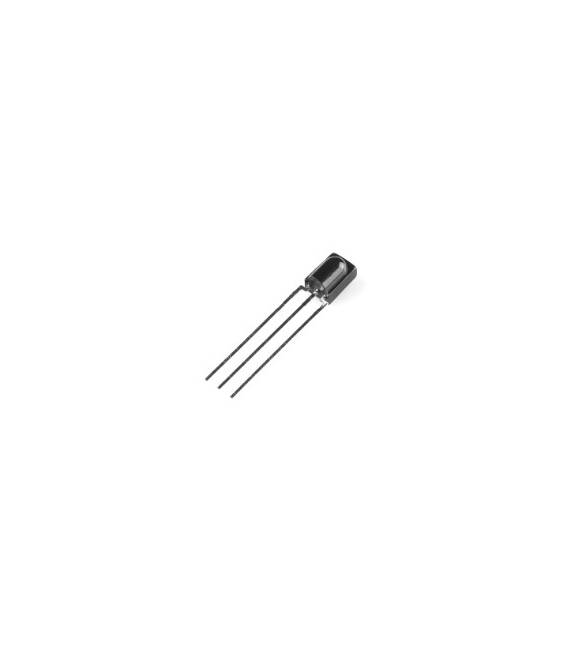

Integrated Universal IR Receiver Module 0038 – 38kHz for Remote Controls

Description

This integrated universal IR receiver module is designed to receive 38kHz infrared signals commonly used in remote controls. It is particularly useful for decoding messages sent from remote controls and can be easily integrated into various electronic devices. Frequency: 38kHz Ideal for Arduino projects. What it’s used for: This module is used to create remote control systems, such as electric device control via remote. It can be connected to a relay or other actuators to control lighting or other functions remotely. It is compatible with Arduino and can be used in projects requiring IR signal decoding. Tutorial: How to Use Universal 38kHz IR Receiver Module This IR receiver is ideal for decoding 38kHz remote control signals. Useful for remote control projects. What it’s used for: Arduino or compatible. Resistance: 1kΩ Connections: Power supply wire (optional) Steps: 1. Installation: Download and install the latest version of Arduino IDE. 2. Connection: Connect the IR module to Arduino pin 9 with a 1kΩ resistor in series. 3. Power Supply: Power the IR module with 5V Vcc and GND. 4. Code: Upload the provided Sketch code. 5. Test: Use a remote control to send signals. 6. Decoding: Check the received code on the serial monitor. 7. Debug: If it doesn’t work, refer to the datasheet. 8. Final Installation: Integrate the module into a project. Example Code: “`int irPin = 9; IRrecv irrecv(irPin); void setup() { Serial.begin(9600); irrecv.enableIRIn(); } void loop() { if (irrecv.decode(&results)) { Serial.println(results.value); delay(1000); irrecv.resume(); } } “` Mini-project: Create a remote lighting system. Connect the IR module to a relay controlling a lamp. Common errors: Check that the remote control is compatible with 38kHz. Ensure the resistor is correct. Check the correct power supply. Verify the physical connection. Recommended accessories: Relay, Lamp, 38kHz Remote Control, Test wire (for connections) Frequently asked questions: Does the module work with remote controls other than 38kHz? No, the module is configured for 38kHz. Which Arduino pins should I use? Use pin 9 for the IR module. Does the module require specific code? Yes, upload the provided Sketch code. How can I test the module? Use a
