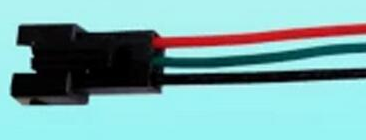

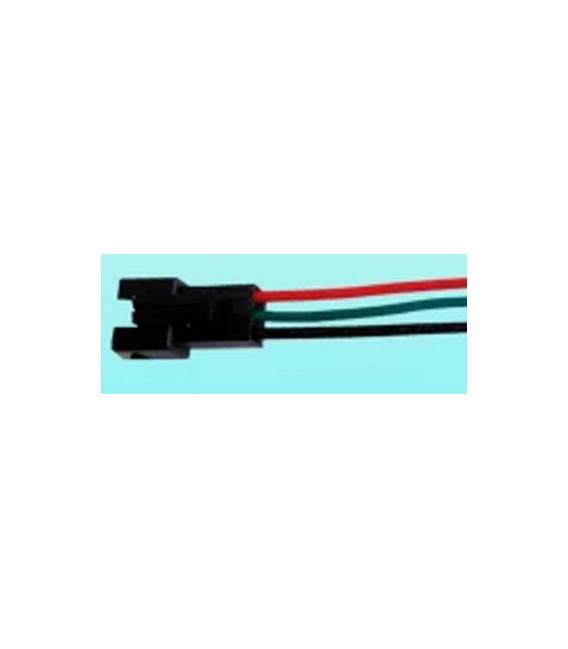

Female 3P Connector Cable for WS2812B/WS2811 LED Strip – Pair

Description

Tutorial: How to Use a Female 3P Connector Cable for WS2812B/WS2811 LED Strip – Pair This connector cable is ideal for connecting WS2812B/WS2811 LED strips to an Arduino controller. Useful for beginners and intermediate makers. What you need: WS2812B/WS2811 LED strip, Arduino or compatible controller, power supply cable, Arduino IDE software Steps Check the datasheet for your LED strip specifications. Prepare two power cables. Connect the power cable to +5V and GND of the LED strip. Connect the data cable to pin D2 on the Arduino. Connect the female connector cables to pins D2, +5V, and GND of the LED strip. Mount the connector cables on supports for easy connection. Load the Arduino code to control the LED strips. Verify the operation of the LED strips. Mini-project Create an LED strip with a colour-changing effect. Common mistakes Connecting the connector cable to the wrong pin. Omitting verification of specifications in the datasheet. Not following correct connection steps. Using an incompatible controller. Recommended accessories Cable support, soldering iron, power supply cable, Arduino IDE software Frequently asked questions Can I use this cable with another type of LED strip? Check the datasheet if the cable supports the type of LED strip you are using. Which pin on the Arduino should I use? Use a digital pin such as D2, D3 or D4 based on your configuration. Do I need specific software to control the LED strips? Use the Arduino IDE software to upload control codes. Can I use this cable with a different controller? Check the compatibility of the controller with the WS2812B/WS2811 protocol.
