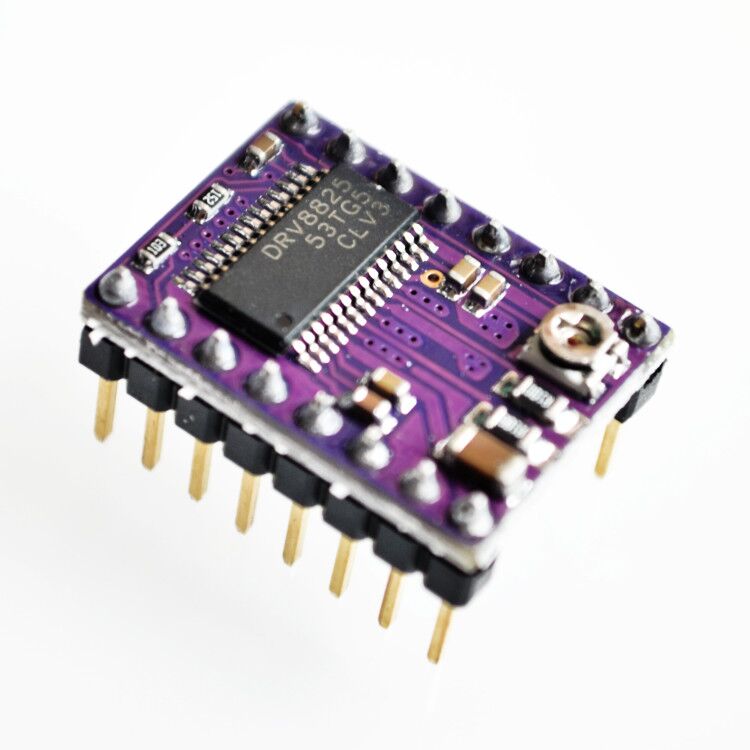

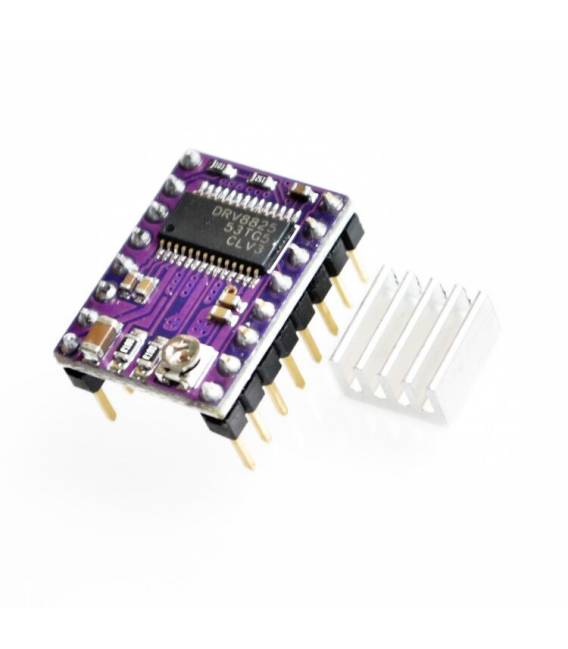

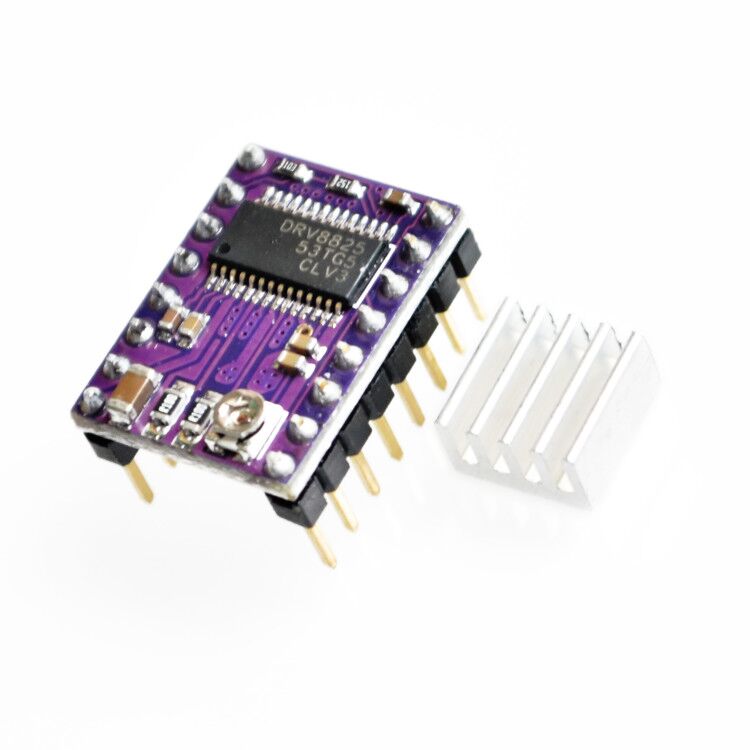

DRV8825 Driver for Stepper Motors Compatible with Reprap Ramps 1.4 Sanguinololu Pololu

Description

What is the DRV8825 Driver? The DRV8825 is a crucial component for managing stepper motors in RepRap-based 3D printers. This device is designed to be compatible with Ramps 1.4 and Sanguinololu boards, ensuring reliable and accurate performance. Features Compatible with Reprap Ramps 1.4 and Sanguinololu Compatible with Pololu What is it for? The DRV8825 is used to control stepper motors in 3D printers, improving movement precision and reducing noise. It is ideal for those building or upgrading a RepRap-based 3D printer. Tutorial: How to Use DRV8825 Driver for Stepper Motors The DRV8825 driver is essential for anyone building or upgrading a RepRap-based 3D printer. It allows for precise control of stepper motors, making movement operations more accurate and quieter. What is needed? Arduino Uno/Ramps Jumper connections Compatible stepper motors Adequate power supply Slicer software (e.g., Cura) Steps Connect the DRV8825 to the Arduino Ramps using the appropriate connectors. Configure the driver settings in the 3D printer firmware (M907). Verify the correct configuration of the control pins on the circuit. Test the stepper motor operation with a simple Arduino sketch that moves the motor forward and backward. Install the 3D printer firmware (e.g., Marlin or Repetier). Configure temperature and speed settings in the slicer software. Print a test object to verify the accuracy of motor movement. Further optimise the configuration based on the results obtained. Example Code // Example Arduino Sketch #include const int stepsPerRevolution = 200; // Check the motor stepper datasheet Stepper myStepper(stepsPerRevolution, 8, 9, 10, 11); void setup() { myStepper.setSpeed(60); // Speed in RPM } void loop() { myStepper.step(50); // Forward 50 steps delay(500); myStepper.step(-50); // Backward 50 steps delay(500); } Mini Project Print a small sculpture or custom object to test your system’s capabilities with the DRV8825. Common Errors Unoptimised electrical current settings Incorrect pin control connections Incomplete or inappropriate firmware configuration Lack of synchronisation between the driver and stepper motors Recommended Accessories A4988 Driver for comparison Endstop sensors High-power external power supply
