Brushless CW Emax MT2204 2300KV CW Motor for Multirotor QAV250

Description

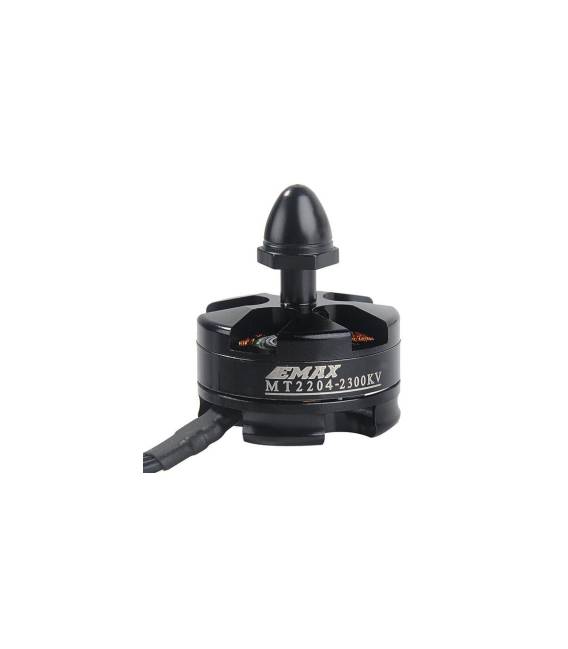

EMAX MT2204 is a professional and practical 2300KV brushless motor, mainly made of durable aluminum alloy material, suitable for most multi-rotor helicopters, especially for QAV250.

Tutorial: How to use MT2204 2300KV CW

The Emax MT2204 2300KV CW brushless motor is ideal for building small multirotors. It is suitable for beginner and intermediate pilots who want a powerful and reliable motor.

What you need

• EMAX MT2204 2300KV CW brushless motor
• Compatible voltage regulator (ESC)
• Alkaline cells or LiPo batteries
• Quadcopter QAV250
• Assembly tools

Steps

1. Check the datasheet for motor specifications.
2. Mount the motor on the quadcopter QAV250 following the manufacturer’s instructions.
3. Attach the screws to the motor and the quadcopter.
4. Connect the ESC to the motor and the quadcopter control system.
5. Charge the batteries and ensure the protection system is active.
6. Check the motor operation with the configuration software.
7. Test the motor safely before launching the quadcopter.
8. Adjust the motor power to optimize flight.

Mini project

Mount the MT2204 2300KV motor on a QAV250, connect the ESC, charge the batteries, and check the motor operation.

Common mistakes

• Do not follow the mounting instructions correctly.
• Use incompatible batteries.
• Do not test the motor safely.
• Do not adjust the motor power correctly.

Recommended accessories

• Voltage Regulator (ESC) Emax
• 3S LiPo Batteries
• Assembly Tools
• Quadcopter Protection Kit

Frequently asked questions

How can I adjust the motor power?
Adjust the power through the ESC using the configuration software.

Which batteries can I use?
Use 3S LiPo batteries compatible with the motor’s maximum current.

Is the motor compatible with the QAV250?
Yes, the motor is designed to be used on QAV250.

What are the steps to mount the motor?
Follow the manufacturer’s instructions for proper installation.
