ATMEGA328P-PU IC Circuitos Integrados

Description

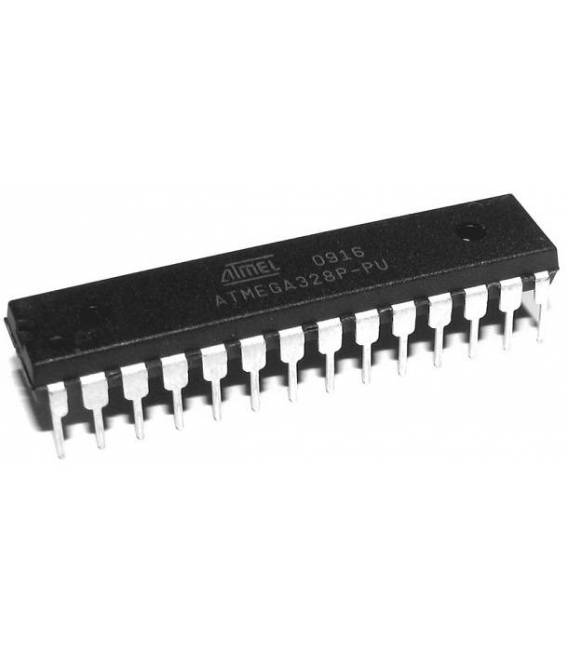

What is the ATMEGA328P-PU IC? The ATMEGA328P-PU is a low-power microcontroller commonly used in Arduino projects. This component serves as the heart of the system to create interactive electronic devices.

Features:
The ATMEGA328P-PU is primarily used for programming and controlling various devices in Arduino projects. It can be used to create a step counter by integrating infrared sensors and displaying data on an LCD screen.

How to use ATMEGA328P-PU IC? The ATMEGA328P-PU is a low-power microcontroller ideal for Arduino projects, serving mainly as the system’s core to create interactive electronic devices.

What do you need:
Arduino Uno R3 Breadboard USB Adapter Arduino Development Program
Steps: Mount the ATMEGA328P-PU on the breadboard. Connect the board to your laptop via a USB adapter. Open Arduino IDE and install the library for ATMEGA328P-PU. Upload the example sketch to Arduino Uno R3. Verify that the LED connected to pin 13 turns on and off correctly.

Example Code:
void setup() { pinMode(13, OUTPUT); }
void loop() { digitalWrite(13, HIGH); // Turn on LED delay(1000); // Wait for a second digitalWrite(13, LOW); // Turn off LED delay(1000); // Wait for a second }

Mini-project: Create a step counter with ATMEGA328P-PU. Use an infrared sensor to detect movements and display the count on an LCD screen.

Common Errors:
Incorrect power connection. Using incorrect clock frequency. Forgetting to upload sketch to microcontroller. Using incompatible Arduino firmware with ATMEGA328P-PU.
