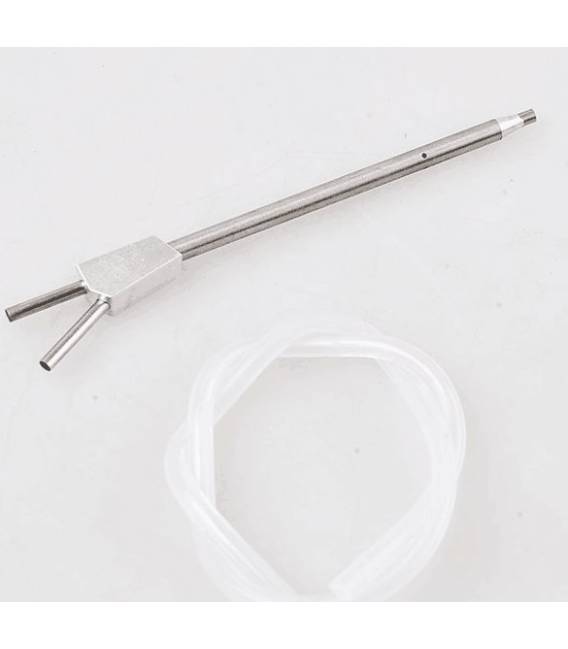

APM2.52 / 2.6 Breakout Board Connector Tube MPXV7002DP

Description

The APM2.52 / 2.6 Breakout Board Connector Tube MPXV7002DP is a crucial component for connecting the APM2.52 / 2.6 breakout board to the MPXV7002DP pressure module. This tube facilitates the installation and connection between the APM2.52 / 2.6 breakout board and the MPXV7002DP module, essential for drones and aerial robot cars requiring atmospheric pressure monitoring.

How to use the APM2.52 / 2.6 Breakout Board Connector Tube MPXV7002DP:
This tube allows you to connect the APM2.52 / 2.6 breakout board to the MPXV7002DP pressure module, essential for drone pilots and makers in Rende.

What does it serve:
– APM2.52 / 2.6 Breakout Board
– MPXV7002DP Pressure Module
– Connection Wires

Steps:
1. Verify electrical compatibility on the datasheet between APM2.52 / 2.6 and MPXV7002DP.
2. Disconnect the drone or device from any power source.
3. Connect the tube to the APM2.52 / 2.6 breakout board connector.
4. Connect the tube to the MPXV7002DP module connector.
5. Ensure the connections are secure.
6. Reactivate power to the device.
7. Verify the correct operation of the system.
8. If necessary, perform a calibration test on the MPXV7002DP module.

Mini-project:
Build an atmospheric pressure monitoring system for a drone using APM2.52 / 2.6 and MPXV7002DP in 30 minutes.

Common errors:
– Connecting the tube without verifying electrical compatibility.
– Omitting the functionality test.
– Incorrectly calibrating the MPXV7002DP module.
– Not following the datasheet safety instructions.

Recommended accessories:
– Connection wires
– Multimeter
– Screwdriver
– APM2.52 / 2.6 and MPXV7002DP datasheet manual

Frequently asked questions:
– How can I verify electrical compatibility?
Verify electrical values on the datasheet.
– Is the tube necessary for every connection?
No, only for specific connections between APM2.52 / 2.6 and MPXV7002DP.
– Can I use another pressure module?
Check the compatibility of the module with APM2.52 / 2.6.
