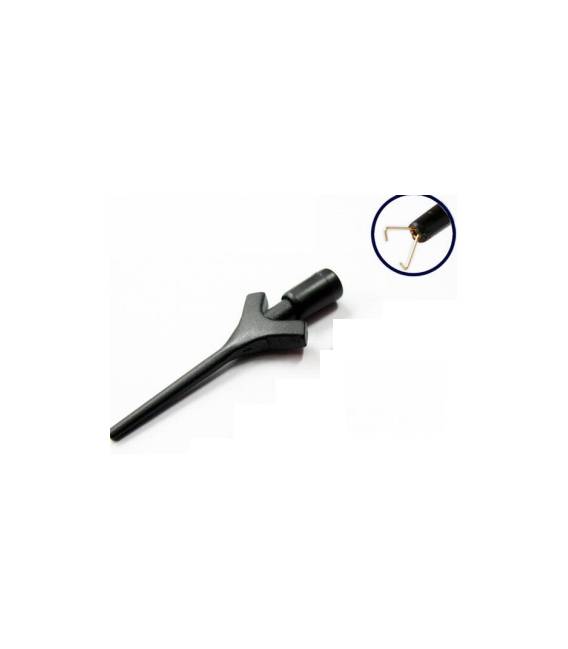

Aerial Test Clips

Description

Tutorial: How to Use Aerial Test Clips Aerial test clips are indispensable for electronic projects on prototyping boards like breadboards. They are useful for both beginner enthusiasts and more experienced makers, offering a quick and efficient connection between different components. What you need Arduino Uno Breadboard Other sensors or electronic components Power supply USB cable Steps Connect the aerial clip to the desired pin on the Arduino. Check the connection with a pocket multimeter to ensure proper current flow. Connect the other end of the aerial clip to other electronic components such as sensors or resistors. Repeat the above steps to connect multiple components in series or parallel. Verify the connection with a pocket multimeter Write an Arduino sketch that reads the value of the sensor connected to the aerial clip. Upload the sketch to the microcontroller and check the received data via Serial Monitor. Repeat these steps to test different sensors or components with the aerial test clips. Mini-project Create a light sensor that sends data to the microcontroller. Connect a photodiode to the aerial test clips and write an Arduino sketch to read ambient light levels. Common errors Connecting the aerial clip incorrectly, with the polarity reversed. Not properly checking connections before uploading the sketch. Using clips that are too small or large for the breadboard. Inserting the aerial clip without first checking the required electrical voltage of the component. Recommended accessories Breadboard Arduino Uno R3 Photodiode LDR USB power cable Frequently asked questions What are the advantages of aerial test clips over traditional wires? Aerial test clips offer a quick and stable connection, allowing easy disassembly and reassembly for evolving projects. Can I use aerial test clips with any type of component? Yes, but it’s important to check the datasheet of the component to ensure the electrical voltage is compatible.
