5kg Mini Load Cell Sensor

Description

What it is

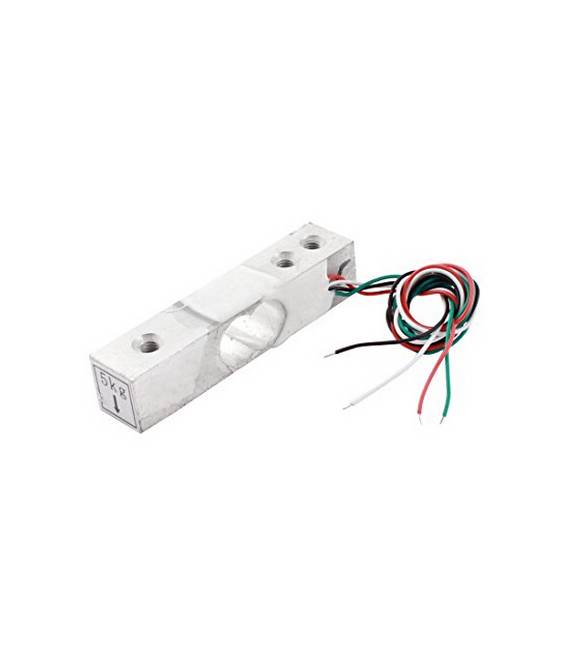

The 55 * 12,7 * 12,7 3 holes 5 kg rectangle aluminum mini load weight pressure sensor is an electronic component that measures applied pressure and load.

Features

• Dimensions: 55 x 12,7 x 12,7 mm
• 3 mounting holes
• Maximum capacity: 5 kg
• Material: aluminum alloy
• SKU: ARD005982
• Price: 3.3 €

What it is for

This sensor is ideal for 3D printer, CNC, and pressure control system applications. It can be used to measure the weight of small objects, for example during the 3D printing process. The load cell can be integrated with a microcontroller like Arduino or ESP to create custom weighing systems.

Tutorial: How to use the ARD005982 load cell

The ARD005982 load cell is ideal for measuring the weight of small objects. Useful for 3D printers, CNC, and pressure control systems.

What you need

• ARD005982 load cell
• Arduino or compatible microcontroller
• Connector for the load cell
• Protection cables (optional)

Steps

1. Check the datasheet for the load cell specifications.
2. Connect the load cell to the microcontroller using the connector.
3. Install an Arduino sketch to read weight values.
4. Calibrate the load cell following the datasheet instructions.
5. Verify the connection and weight reading.
6. Test the load cell with various objects of known weight.
7. Install a protection cable to protect the connection.
8. Save weight data in a CSV file for future reference.

Example code

```void loop() {  int peso = analogRead(A0);  Serial.println(peso);  delay(1000);}

Mini project

Build a 3d printer weighing system using the load cell and an Arduino to control the weighing process during printing.

Common mistakes

• Do not calibrate the load cell correctly.
• Connect the load cell to an inappropriate pin.
• Omit reading the datasheet.
• Do not test the load cell with known weight objects.

Recommended accessories

• Arduino UNO
• Safety cables
• Load cell connector
• Data monitoring software

Frequently asked questions

How to calibrate the load cell?
Follow the specific instructions in the datasheet.

Can I use this load cell with a Raspberry Pi?
Check compatibility on the datasheet.

How long does the load cell last?
Check the datasheet for the load cell lifespan.
