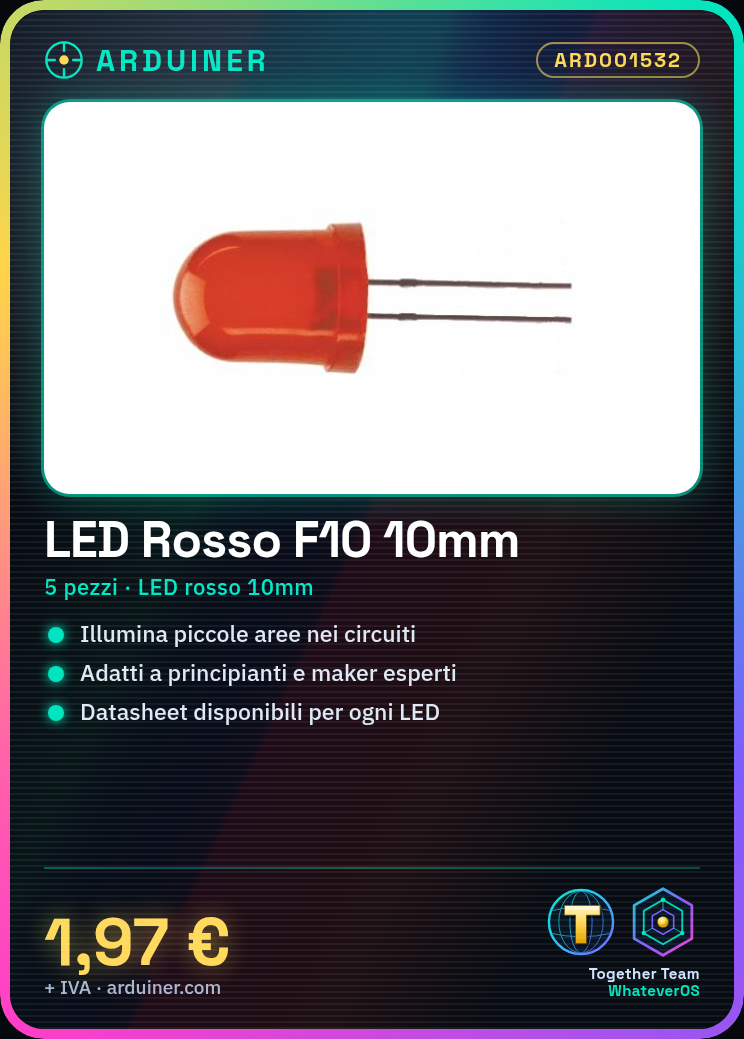

5 Pieces F10 Red LED Diodes 10mm

Description

5 Pieces F10 Red LED Diodes 10mm. If datasheets for any components are not available on the product page, please contact us via the contact form and we will publish them as soon as possible on our website. Tutorial: How to Use F10 Red LED Diodes. F10 red LEDs are ideal for indexing or illuminating small areas in electronic projects. They are perfect for both beginners and more experienced makers. Required Components: Arduino Uno, 5 resistors of 330 ohms, and a breadboard (optional). Steps: Connect one end of the resistor to a digital output pin on the Arduino. Connect the other end of the resistor to the anode pin of the LED (the longer leg). Connect the cathode pin of the LED (the shorter leg) to the Arduino’s ground. Write and upload the Arduino sketch to turn the LED on and off. Verify that the LED lights up when the digital pin is high and turns off when it is low. Example Code: void setup() { pinMode(13, OUTPUT); } void loop() { digitalWrite(13, HIGH); // Turns the red LED on delay(1000); digitalWrite(13, LOW); // Turns the red LED off delay(1000); } Mini-Project: Create a simple LED clock that indicates the time using 6 F10 red LEDs (3 red and 3 green) connected to an Arduino. Common Errors: Incorrect LED polarity connection, resistor value too small or too large, ignoring the datasheet specifications. Recommended Accessories: Arduino Uno R3, Resistor Kit, Custom PCB Printer, Universal Dupont Connectors. Frequently Asked Questions: Which resistor should I use? Check the LED datasheet, but a 330 ohm resistor generally works well. Can I connect the LED to a battery? Yes, but ensure you do not burn it with too high current.
