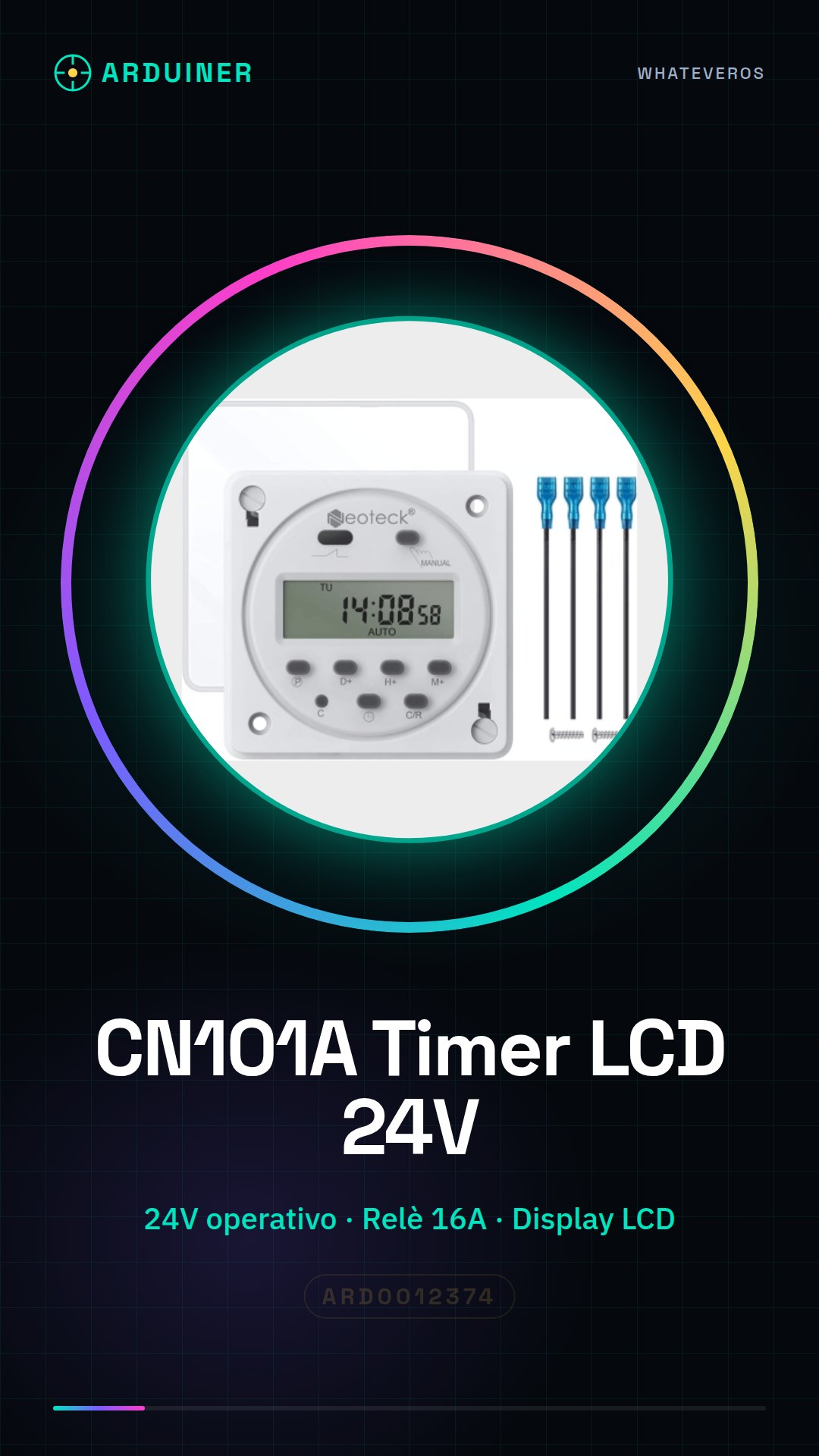

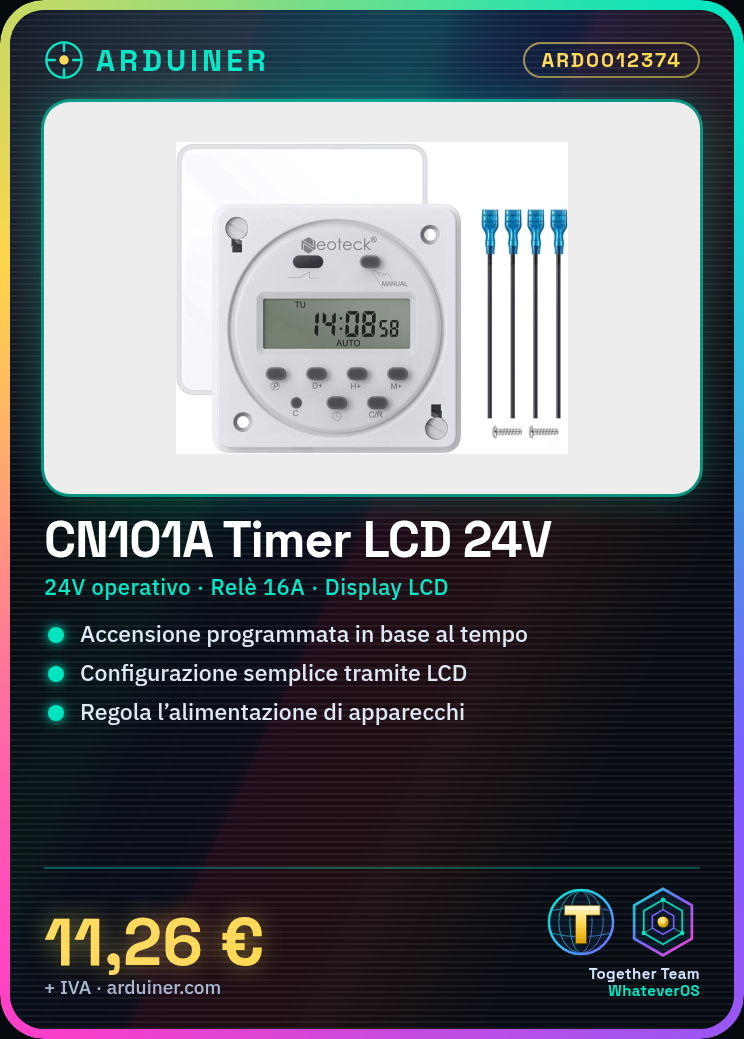

24V CN101A Programmable LCD Digital Timer Power Switch Relay 16A

Description

What is the Programmable LCD Timer Switch CN101A? The programmable timer power switch CN101A is an electronic device that allows controlling electrical devices based on timed programs. With an LCD display, it enables easy configuration of turn-on and turn-off times. Features Operating Voltage: 24V Device Type: Programmable timer power switch with relay Relay Capacity: 16A What for? Ideal for Arduino projects and automatic controls, the CN101A timer can be used to create programmable night lighting systems or manage electrical device power based on predefined times. Check the datasheet for further information on compatibility with Arduino or ESP. Tutorial: How to Use Programmable LCD Relay Timer 24V CN101A The programmable LCD relay timer 24V CN101A is a useful device for managing electrical device power based on timed programs. Ideal for makers who want to automate processes without writing complex code. What you need CN101A Relay 24V Arduino (optional) Electrical Connection Steps Connect the relay to the desired electrical circuit, verifying the supply voltage. If necessary, connect an Arduino for software control of the timer. Configure turn-on and turn-off times through the device’s LCD screen. Protect electrical connections with appropriate insulation. Test the timer functionality by programming a simple timed cycle. Ensure that the relay turns on and off correctly based on set times. Mini-project Create a programmable night light: Set the timer to turn lights on at 8 PM and off at 6 AM. Common mistakes Not verifying supply voltage before connection. Setting incorrect times in the programmable timer. Omitting insulation of connections. Using an incompatible electronic device with the relay. Recommended accessories Arduino Uno R3 PIR motion sensors 5V relays for Arduino Frequently Asked Questions How can I control the timer remotely? You can connect it to an Arduino and send commands via a Wi-Fi network. Can I use this relay with 230V AC devices? Check the datasheet for voltage compatibility.
