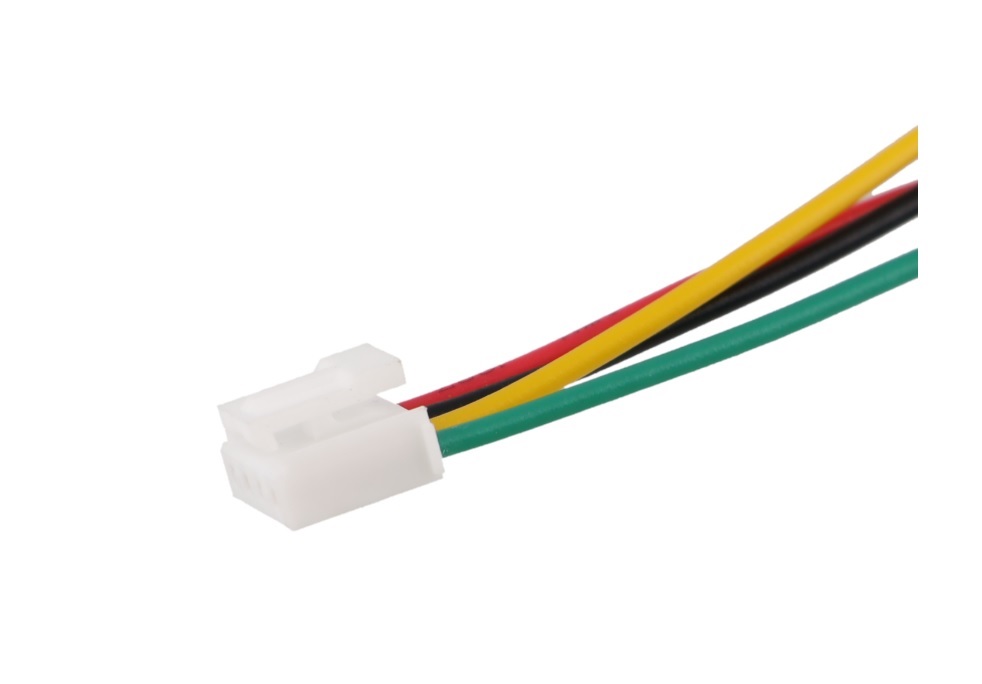

2 x Grove HY2.0-4P 20CM A-B Inverted Head Cable

Description

Tutorial: How to use Grove HY2.0-4P 20CM A-B Inverted Head Cable This cable is ideal for connecting two Grove modules together or extending existing cables. It is particularly useful in Arduino and open-source electronics projects where ease of connection and compatibility are crucial.

What you need:
Arduino Uno or compatible
Grove Modules
HY2.0-4P Cable

Steps:
Check the compatibility of your Grove modules with the HY2.0-4P cable.
Connect one end of the cable to the source module.
Insert the other end of the cable into the destination module.
Ensure that the contacts are properly inserted and there is no short circuit.
If necessary, use a multimeter to check for continuity in the cables.

Mini-project:
Create an environmental monitoring system with a Grove temperature and humidity sensor and an OLED display. Connect the sensor to the display via the HY2.0-4P cable to view real-time data.

Common mistakes:
Ensure that connectors are clean and properly inserted.
Check signal correctness and avoid inversions.
Avoid excessively extending cables to prevent connection issues.
Use appropriately sized cables to prevent electrical resonance problems.

Recommended accessories:
Grove Base Shield Module
Temperature and Humidity Grove Sensor
OLED Grove Display

Frequently Asked Questions:
The cable can be used with other connectors? Check the datasheet for compatibility with other connectors.
What is the recommended maximum length? Check the datasheet for the recommended maximum length.
Can it be used to power modules? Check the datasheet for powering capabilities.
