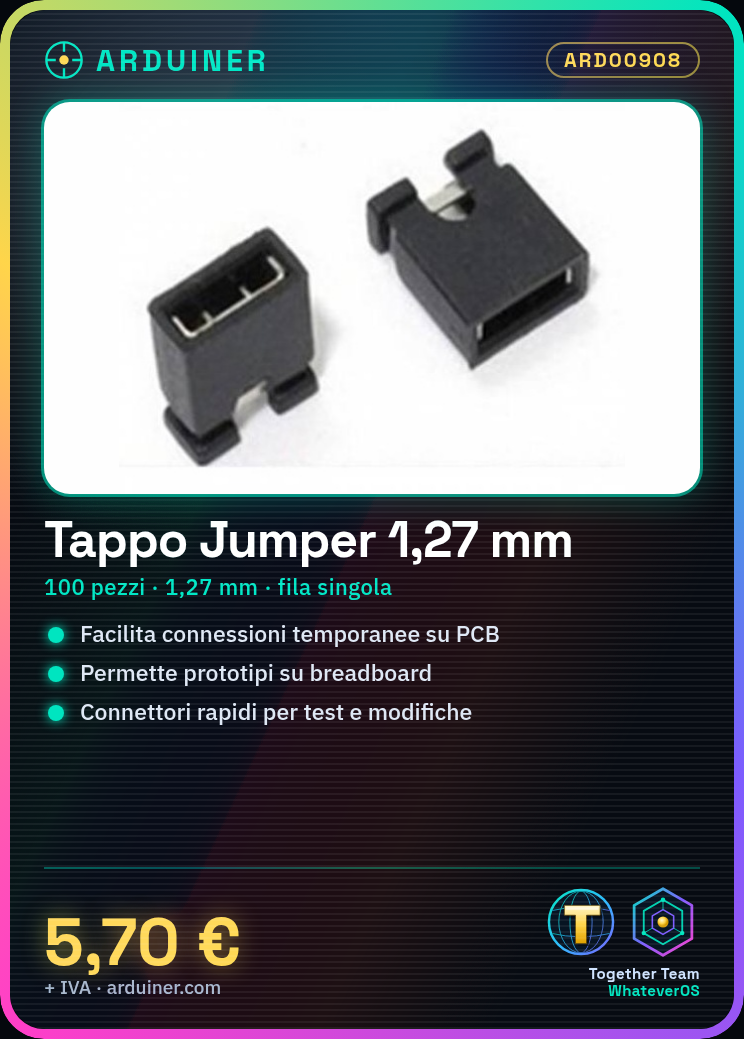

100 Piece 1.27mm Single Pin Jumper Block Caps, Short Circuit and Connection Blocks

Description

What are 1.27mm single pin jumper block caps? These 1.27mm single pin jumper block caps are an essential component for makers and electricians working on PCB boards. This set of 100 pieces is perfect for creating temporary or permanent connections between various points on the board, making work more flexible and secure. Features Number of pieces: 100 Pin diameter: 1.27mm What is it used for Jumper block caps are used to create a simple prototype circuit on a breadboard with various sensors and components. They allow for quick connections to an Arduino board or any other device that requires temporary connections. Tutorial: How to use Single pin jumper block caps Jumper block caps are indispensable for makers and electricians working on PCB boards. They allow for temporary or permanent connections between various points on the board, making work more flexible and secure. What is it for Prototype circuit creation Modification of existing schematics Component testing on a breadboard Steps Check the datasheet for compatibility of the jumper block caps with your PCB board paths. Position the pin of the jumper block cap in the desired location on the board, ensuring it is centered and does not obstruct other components. Gently press the cap until you hear a click, indicating it is inserted correctly. Check the connection with a testing tool like a multimeter pen or LED tester. If necessary, use appropriate tools to remove the cap without damaging the board paths. Mini-project Create a simple prototype circuit on a breadboard with various sensors and components. Use the jumper block caps to connect them to the Arduino board. Common mistakes Inserting the cap without first checking the path compatibility. Forcing the insertion of the cap, causing damage to the board paths. Not checking the connection after inserting the cap. Recommended accessories Breadboard Arduino Uno R3 Multimeter test kit Electronic tools kit Frequently asked questions How can I remove a jumper block cap? Use appropriate tools like pliers or disassembly tools without damaging the board paths. Can they be used on any type of PCB? Check the datasheet for compatibility of the jumper block caps with your type of PCB.
