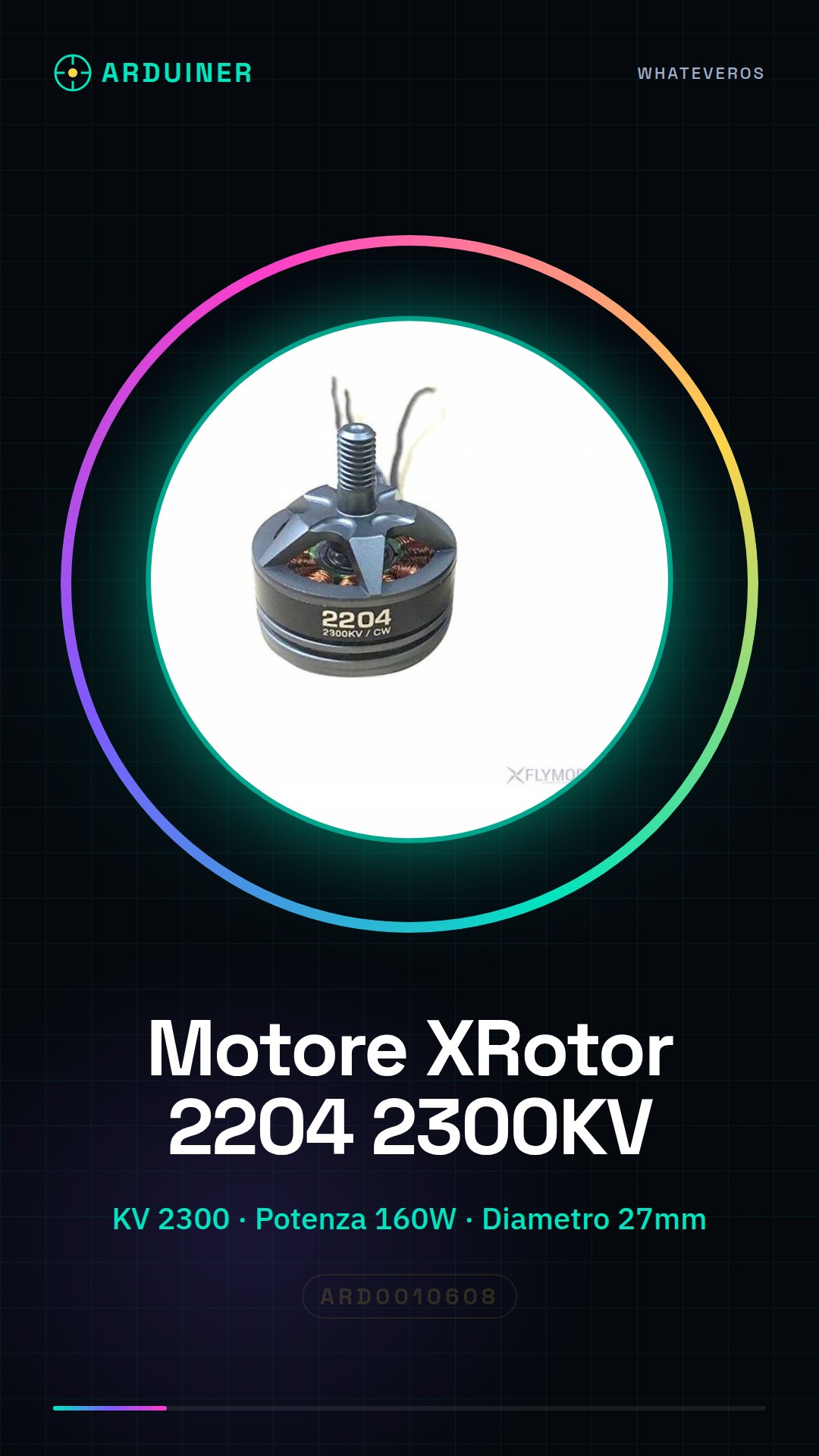

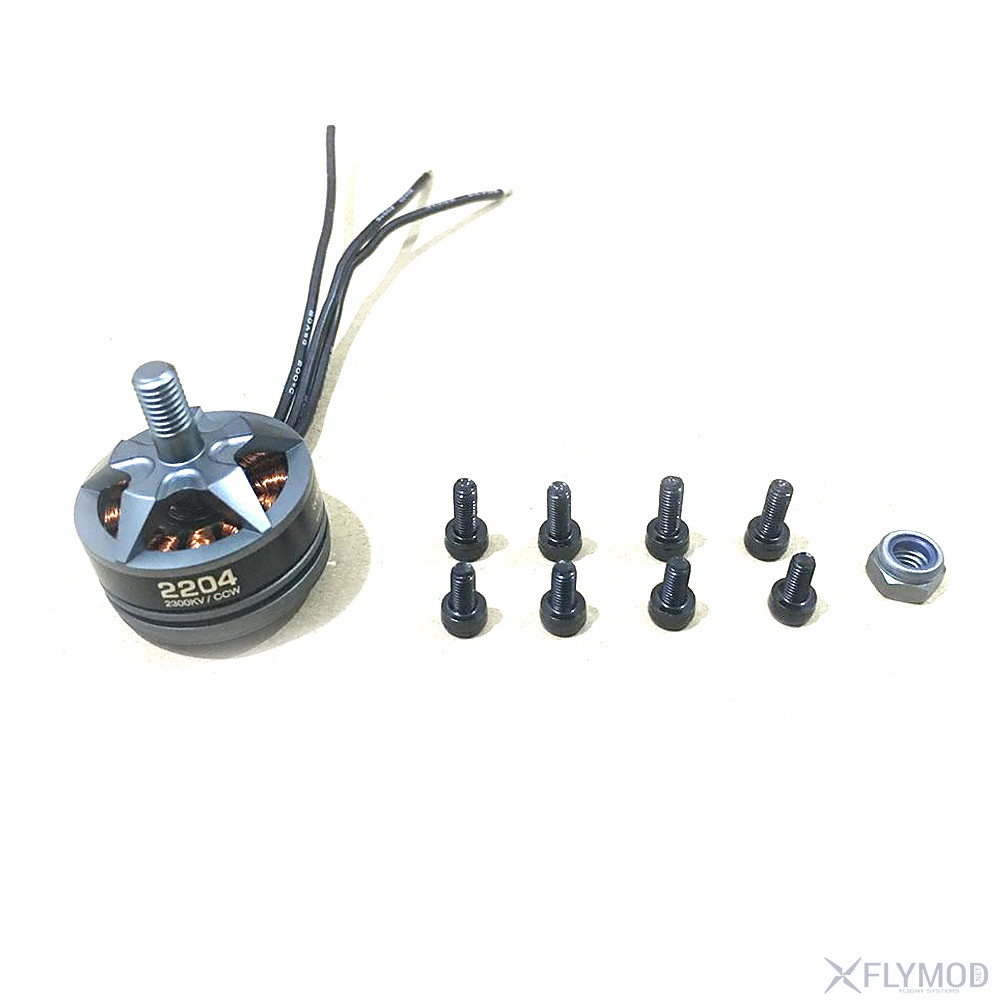

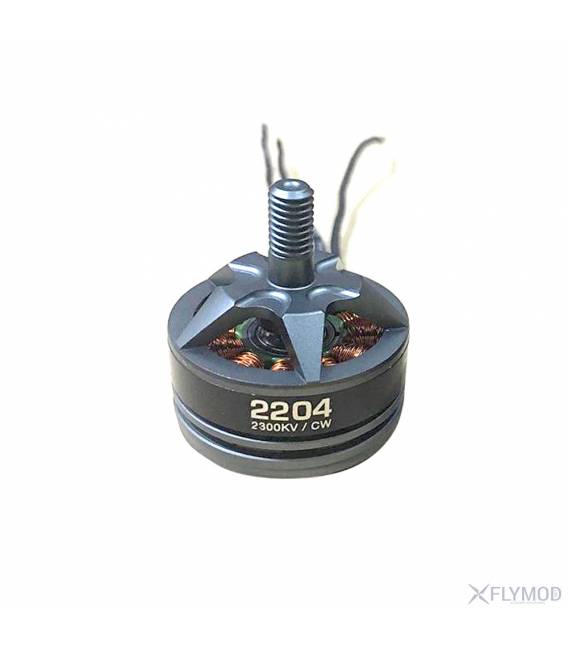

XRotor 2204 2300KV Titanium CW Brushless Motors

Description

XRotor 2204 2300KV Titanium CW Brushless Motors

– Nominal speed: 2300KV
– Ideal for FPV and acrobatic flyers
– Suitable for beginners
– Reversible motor with CW threading
– Stator diameter: 22mm
– Stator height: 4mm
– Motor diameter: 27mm
– Voltage per RPM (KV): 2300
– Propeller diameter: 3mm
– Mounting hole for transmission shaft: M5
– Technology: 12N14P (14 magnets, 12 stator sections)
– Suitable for 2-4S LiPo batteries
– Maximum power: 160W
– Mounting holes: M3 – 16mm x 19mm
– Cabling length: 7mm

Tutorial: How to use XRotor 2204 2300KV
– Ideal for beginners and intermediate FPV and air racing enthusiasts
– Known for its power and reliability
– Perfect for quadcopters

What you need:
– Compatible 250mm frame
– 2200mAh LiPo battery
– ESC (Electronic Speed Controller)
– Cords

Steps:
– Check the motor specifications on the datasheet
– Choose a frame compatible with the motor diameter (27mm)
– Mount the motor on the frame using M5 props
– Connect the motor to the ESC
– Verify the correct polarity of the motor wires
– Connect the motor wires to the ESC
– Connect the ESC to the LiPo battery
– Verify the correct voltage regulation on the ESC
– Test the motor with the remote control

Mini-project: Build a test quadcopter using the XRotor 2204 2300KV, a 250mm frame, and a 2200mAh LiPo battery in 30 minutes

Common errors:
– Connecting the motor to the remote control without testing it first
– Omitting the wire polarity check
– Using an incompatible frame
– Ignoring ESC voltage regulation

Recommended accessories:
– Compatible 250mm frame
– 2200mAh LiPo battery
– ESC
– Cords

Frequently asked questions:
– How do I check the wire polarity? Check the motor or datasheet instructions; inductors are usually color-coded to indicate polarity.
– What types of frames are compatible? Choose a frame with a diameter of 27mm or less.
– Can I use a 3S LiPo battery? Check compatibility with the ESC; some ESCs support 3S, others only 2S.
– Which remote controls are compatible? Ensure the remote control supports the voltage of your LiPo battery.
