STC15L204 Wireless Scheda di Sviluppo For NRF905 Modulo

Description

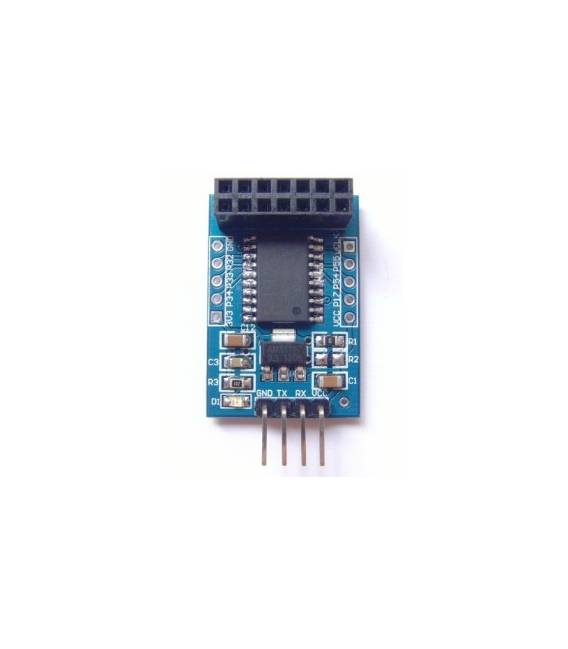

Development board STC15L204 for NRF905 module 1, onboard STC15L204EA single chip, this microcontroller is 5V power supply 2, integrated wireless module for NRF905 2 * 7 row female connector Onboard 3 UART interfaces for serial communication 4, onboard 5V to 3.3V AMS1117-3.3 chip 5, spare I/O all leads, and label I/O names 6, PCB size: 32.1 (mm) x 21.8 (mm) We have available the technical specification of all components, if not present in the product download sheet, send us a message from the contact us module and we will publish as soon as possible on our website. Tutorial: How to use STC15L204 Wireless Development Board For NRF905 Module This module allows you to create simple wireless devices. Useful for beginners and basic projects. What you need Arduino IDE STC15L204 Wireless Development Board For NRF905 Module USB cable 10kΩ resistor (check the datasheet) Steps Connect the module to your Arduino using the pins indicated in the datasheet. Install the NRF905 library in your Arduino IDE. Create a new sketch. Include the necessary headers: `#include ` and `#include `. Configure the SPI pins using `SPI.begin();`. Initialize the module with `nRF905_begin(1);`. Write the code to send and receive messages. Upload the sketch to your Arduino. Example code “`cpp #include #include nRF905 nRF905(1); void setup() { SPI.begin(); nRF905.begin(); } void loop() { nRF905.send((uint8_t*)”Hello”, 5); delay(1000); } “` Mini-project Create a device that sends the message ‘Hello’ every second. Common mistakes Do not use unsupported pins. Forget to load the library. Connect the module correctly. Omit the declaration of the nRF905 module. Recommended accessories Arduino UNO LCD 16×2 Buttons 10kΩ Resistor Frequently asked questions How do I connect the module correctly? Follow the pin connection instructions in the datasheet. Which pins do I use for sending and receiving? Check the datasheet for the SPI pins used. What are the minimum requirements for the code? Include the necessary headers and initialize the nRF905 module. Why doesn’t the module work? Check the connection and configuration of the module.
