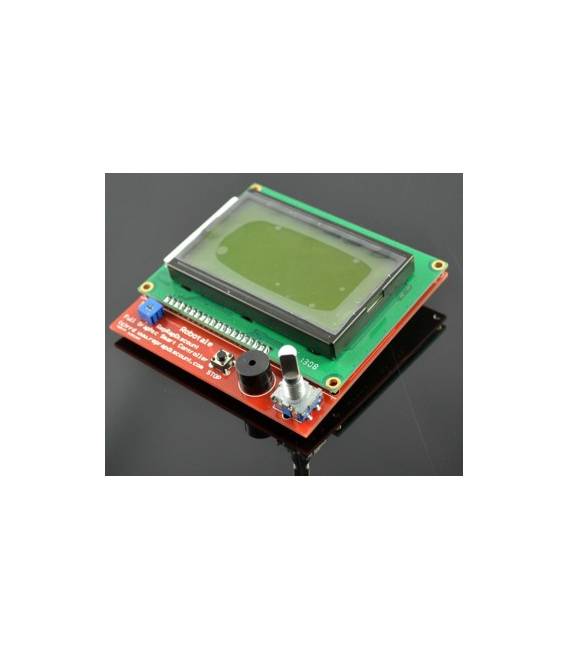

Smart Controller RAMPS 1.4 with LCD 12864

Description

What is the Smart Controller RAMPS 1.4 with LCD 12864? This essential accessory for 3D printers and CNC systems allows intuitive control of spool movement and worktable. Features Compatible with Arduino LCD 12864 display for graphical interaction RAMPS 1.4 controller for motor management What is it used for Ideal for both beginners and experts, this controller enables configuration and control of 3D printers and CNC systems. Can be used with various models of Arduino. Tutorial: How to use the Smart Controller RAMPS 1.4 with LCD 12864 The RAMPS 1.4 controller with an LCD display is a key component for 3D printers and CNC systems, allowing control of spool and worktable movement. Ideal for both beginners and experts, this controller offers easy interaction through the display. What you need Arduino Mega Connection to 3D printer or CNC system Connecting wire Steps Step 1: Connect the RAMPS 1.4 controller to the Arduino Mega following the datasheet specifications. Step 2: Verify correct wiring connections between Arduino and RAMPS 1.4 controller. Step 3: Install necessary drivers for controlling 3D printers or CNC systems on your computer. Step 4: Download and install Marlin library in Arduino IDE, configuring specific settings for RAMPS 1.4 with LCD 12864 (check datasheet). Step 5: Upload the Marlin sketch to the Arduino Mega. Step 6: Connect the controller RAMPS to a 3D printer or CNC system following instructions from the datasheet. Step 7: Test connection and operation through the control LCD interface. Step 8: Configure additional options via the Marlin sketch, such as melting temperature and print speed. Mini-project Set up a 3D printer base with the RAMPS 1.4 controller to print a simple cubic object in PLA plastic. Common mistakes Failing to verify correct connection between Arduino and RAMPS controller. Using incompatible drivers for RAMPS 1.4. Omitting configuration of specific LCD control settings from the datasheet. Ignoring the importance of proper system power supply. Recommended accessories Arduino Mega Compatible 3D printer with RAMPS 1.4 Electrical protection filters Extended connections for 3D printers Frequently Asked Questions What is the difference between RAMPS 1.4 and other versions? The RAMPS 1.4 supports more motors and has an integrated LCD display.
