Optical Endstop for 3D Printers and CNC

Description

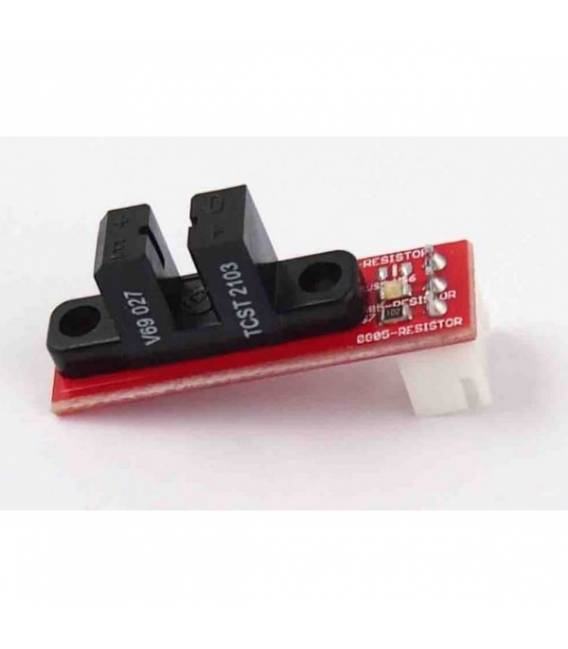

What is the optical endstop ARD001316? The optical endstop ARD001316 is a crucial component for 3D printers and CNC systems. It signals the reaching of a specific position, ensuring the accuracy of movement. Features Optical endstop for 3D printers and CNC Sku: ARD001316 What does it do? The optical endstop is used to configure and test simple CNC systems, serving as a reference point. It is essential for ensuring precision and repeatability in operations. Tutorial: How to use Optical endstop The optical endstop is an essential component for 3D printers and CNC systems. It signals the reaching of a specific position, ensuring the accuracy of movement. What is it for? 3D Printer CNC System Workbench with connectors Steps Install the optical endstop on the fixed support of the printer or CNC system. Connect the optical endstop cables to the motherboard or controller. Configure the optical endstop position in the control software (check the datasheet for specifics). Test the optical endstop operation with a test movement (check the datasheet for necessary commands). Mini-project Configure and test a simple CNC system using a single optical endstop as a reference point. Common errors Damaged or incorrectly connected cable Incorrect optical endstop position Incorrect configuration settings Recommended accessories Motherboards compatible with optical endstops Mounting support for optical endstop Specific connection cables Frequently Asked Questions How can I verify if my optical endstop is working correctly? Perform a movement test and check that the indicator changes state when it reaches the optical endstop position. What is the optimal distance between the sensor and the target? Check the datasheet for product specifications.
