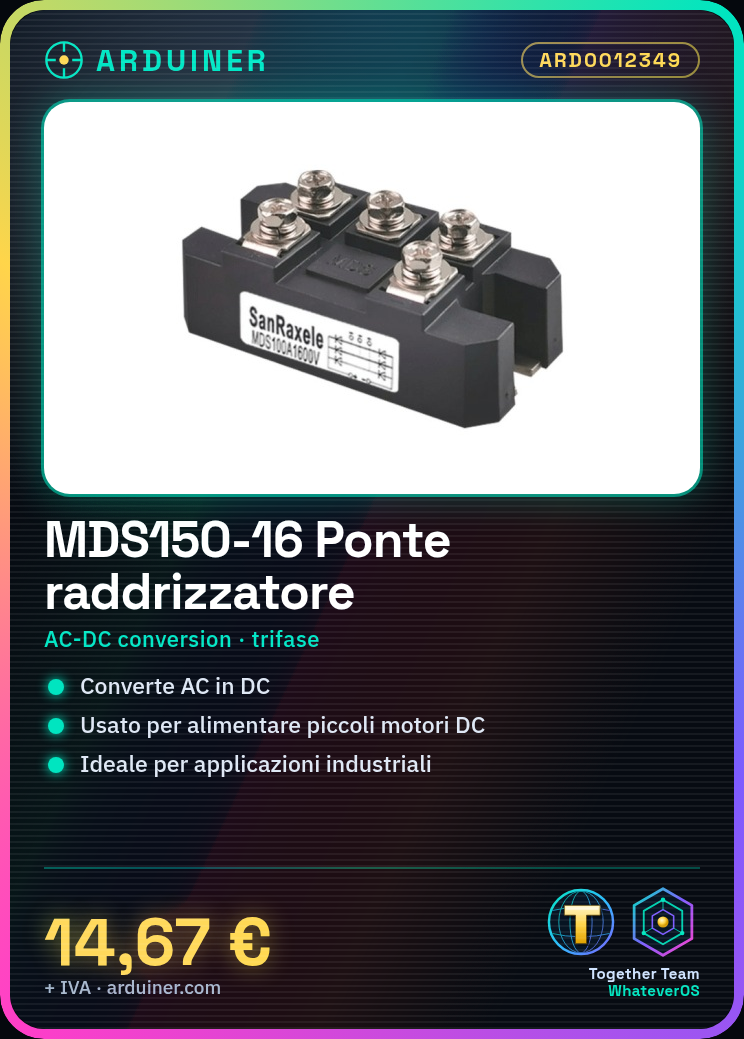

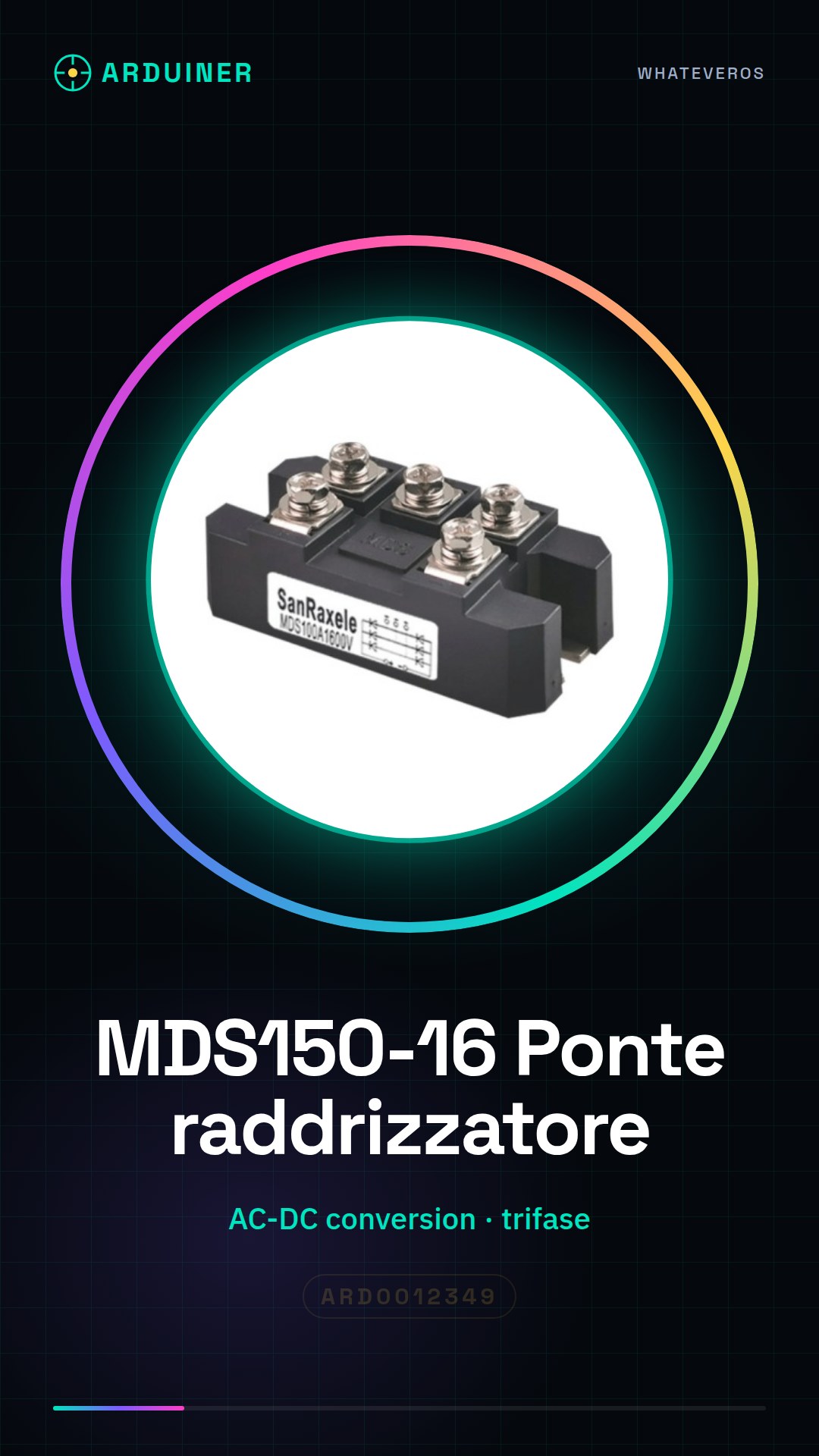

MDS150A1600V MDS150-16 Three-Phase Bridge Rectifier

Description

What it is

The MDS150A1600V MDS150-16 is a three-phase rectifier bridge designed to convert alternating current (AC) to direct current (DC). This component is primarily used in power applications where an effective and reliable current conversion is needed.

Features

• Three-phase rectifier bridge
• Developed for AC-DC conversion

What it is for

The MDS150A1600V MDS150-16 is ideal for industrial and electronic applications that require good current rectification quality. It can be used by beginners and intermediates to build an AC/DC converter to power small DC motors.

Tutorial: How to use MDS150-16

The three-phase rectifier bridge MDS150-16 is ideal for converting alternating current to direct current in industrial and electronic applications. Useful for beginners and intermediates.

What you need

• Three-phase rectifier bridge MDS150-16
• AC power supply
• Multimeter
• Alignment Leads

Steps

1. Verify the datasheet specifications of the rectifier bridge.
2. Connect the three AC wires to the rectifier bridge through the three inputs.
3. Connect the output of the rectifier bridge to a suitable load.
4. Measure the AC current with the multimeter before connecting the rectifier bridge.
5. Measure the DC current output from the rectifier bridge.
6. Verify the DC power supply with the load.
7. Check the power supply with a multimeter.
8. Verify the power supply with the load.

Mini project

Build an AC to DC current converter to power a small DC motor.

Common mistakes

• Do not verify the AC current before connecting the rectifier bridge.
• Connect the rectifier bridge to an inadequate load.
• Omit the verification of the power supply with the load.
• Do not use a multimeter to check the power supply.

Recommended accessories

• AC Power Supply
• Multimeter
• Alignment pairs
• Compact load

Frequently asked questions

Does the rectifier bridge work with all AC current frequencies?
Check the datasheet frequency specifications.

Can I use this rectifier bridge to power electronic devices?
Ensure the load is compact and that the DC power supply is adequate.

What are the power limits of the rectifier bridge?
Check the datasheet power specifications.
