Linear Bearing Support

Description

What it is

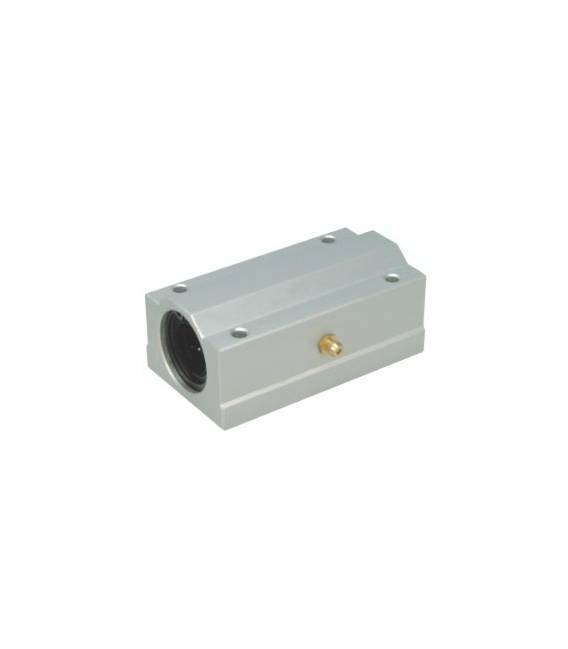

The SC10LUU linear bearing support is a mechanical component designed to ensure precision and stability in applications such as 3D printers, CNC machines, and laser cutters. This essential element contributes to improving the performance of your electronic projects.

Features

• Measure SC10LUU
• Ideally suited for 3D printers, CNC machines, and laser cutters

What it is for

The SC10LUU linear bearing support is used for projects that require precise and smooth movements. It is ideal for building small home 3D printers or improving mechanical performance in general.

Tutorial: How to Use SC10LUU Linear Bearing Support

The SC10LUU linear bearing support is an essential element for projects that require precise and smooth movements. Ideal for 3D printers, CNC, and laser cutters, this component helps improve the mechanical precision of your creations.

What you need

• Linear bearing support SC10LUU
• Work tools (5mm wrench)
• Lubricant spray gun

Steps

1. Check that the support is compatible with your project configuration.
2. Lubricate internally and externally the linear bearing using a lubricant spray gun.
3. Install the support in the device frame using a 5mm wrench to secure it firmly.
4. Check that the movement of the bearing is smooth without friction or squeaking.
5. If necessary, adjust the position and tension of the support to ensure optimal performance.
6. Test the complete device with the new support to ensure everything works correctly.

Mini project

Design a small home 3D printer using the linear bearing support SC10LUU as a key part of the movement system.

Common mistakes

• Do not lubricate the bearing properly.
• Use incompatible equipment to secure the support.
• Omit the final check for smooth movement.
• Solder too tight or too wide the support, compromising the mechanical balance.

Recommended accessories

• Linear bearing lubricant
• Tools (5mm key)
• 3D printer repair kit

Frequently asked questions

Is the SC10LUU support compatible with all 3D printers?
Check the datasheet of your printer model.

How can I clean the linear bearing if it jams?
Use a metal disinfectant and then lubricate it again.
