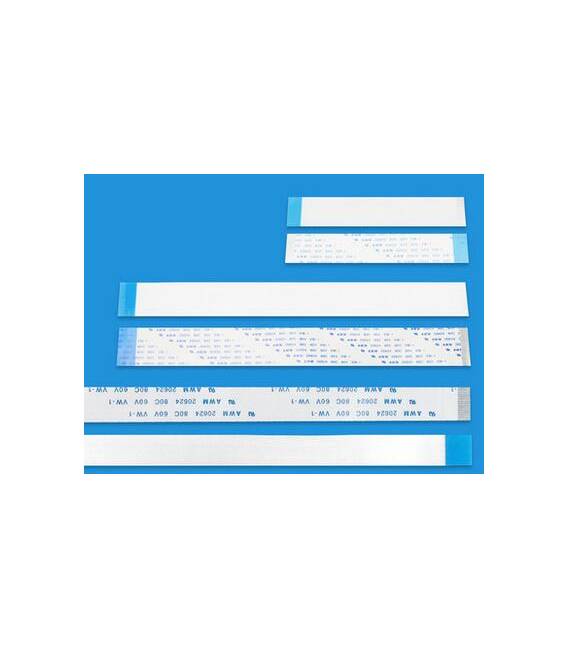

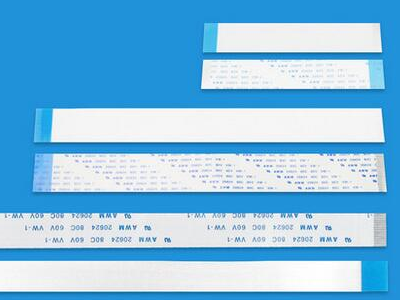

Flexible Flat Cable (FFC/FPC) 40P 0.5 Pitch 30cm A-A

Description

Tutorial: How to use Flexible Flat Cable (FFC/FPC) 40P 0.5 Pitch 30cm A-A
This flexible cable is used to connect PCB circuits to high-density components like microcontrollers or displays. Useful for electronic projects requiring a flexible connection between components.
What you need: Flexible Flat Cable (FFC/FPC), PCB connectors, microcontroller or display, electronic cutting tools.
Steps: Check the pin count (40P) on the datasheet. Cut the cable with electronic cutters. Connect one end of the cable to a microcontroller pin. Test the electrical contact with a multimeter. Connect the other end of the cable to a PCB pin. Test the electrical contact again. Try running a simple Arduino sketch. Check the circuit operation.
Mini-project: Build a simple LED lighting circuit with a button, connecting the FFC/FPC to the microcontroller.
Common errors: Cutting the cable too short or too long. Not testing the electrical contact before testing the circuit. Connecting the cable to the wrong pins. Not using appropriate cutting tools.
Recommended accessories: PCB connectors, microcontrollers, LEDs, buttons.
Frequently asked questions: How do I cut the cable? Use electronic cutters for precise cutting. Which pins to use for the microcontroller? Check the datasheet for the appropriate pins. Does the cable work with all microcontrollers? Check compatibility on the cable and microcontroller datasheets. How to test the contact? Use a multimeter to check continuity between the microcontroller and PCB pins.
