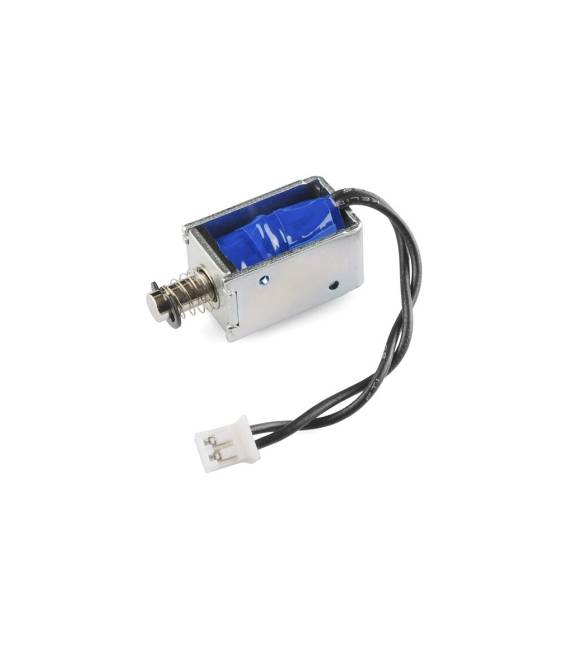

Electromagnetic Pull Solenoid HCNE1-1039, 10mm, 100g, 12VDC

Description

What is the electromagnetic solenoid HCNE1-1039? This electric pull-type solenoid is used for linear motion applications. Ideal for robotics, automation and Arduino prototypes. Features Operating Voltage: 12VDC Diameter: 10mm Weight to lift: 100g Uses This solenoid is suitable for controlling valves, automatic door locks and other linear movement applications. Compatible with Arduino or ESP projects. Tutorial How to use a 10mm Electromagnetic Solenoid The 10mm electromagnetic solenoid is ideal for controlling valves, access keys and other applications requiring linear motion. Suitable for beginner and intermediate makers. What you need 10mm Electromagnetic Solenoid Arduino or logic controller Power supply cable 12V Resistor (check the datasheet) Steps 1. Check the solenoid specifications on the datasheet. 2. Connect the solenoid to the logic controller or Arduino. 3. Attach a 12V power supply cable to the solenoid. 4. Connect a resistor between the solenoid and 12V (check the datasheet). 5. Load a simple sketch to turn on/off the solenoid. 6. Check that the solenoid moves when current is applied. 7. Test the functionality of the solenoid. 8. Install the solenoid in your final project. Example code “`cpp int solenoidPin = 9; void setup() { pinMode(solenoidPin, OUTPUT); } void loop() { digitalWrite(solenoidPin, HIGH); delay(2000); digitalWrite(solenoidPin, LOW); delay(2000); } “` Mini-project Build an automatic drawer lock. Common mistakes Forgetting to connect the resistor. Powering the solenoid with a voltage other than 12V. Connecting the solenoid to the wrong pin. Omitting the delay for testing functionality. Recommended accessories Arduino UNO Resistor 1kΩ Power supply cable 12V Electrical enclosure Frequently Asked Questions How can I control the solenoid with a button? Connect the button between the solenoid and 12V, with a series resistor. Does this solenoid work with voltages other than 12V? Check the datasheet for operating voltages. How long can the solenoid run without interruption? Check the datasheet for operational duration. Can I use this solenoid to control a valve? Check the datasheet if the solenoid supports your intended load.
