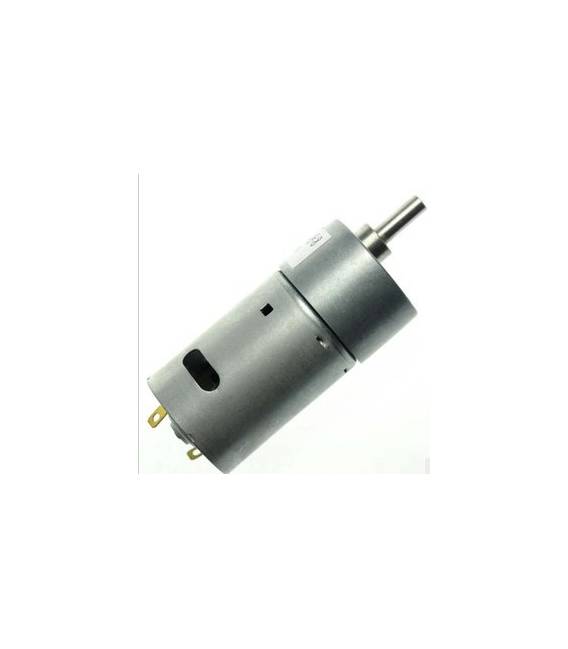

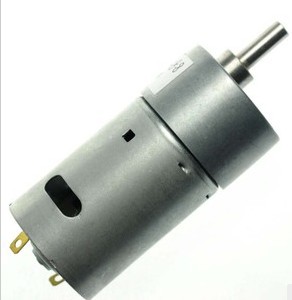

DC Motor 540 with Gearbox 12v/24v High Torque

Description

What is the DC Motor 540 with Gearbox? The DC Motor 540 with Gearbox operates at 12V or 24V and is designed for applications requiring high torque. Suitable for high-power projects such as robotic carts or other mechanical devices. Features Voltage: 12v/24v Ideal for robotics and Arduino projects How to use This motor can be used to build a remote-controlled cart controlled by an Arduino. You can integrate the motor as the main drive and use a distance sensor to regulate the vehicle’s speed. Tutorial DC Motor 540 is perfect for high-power, precise control projects suitable for beginners and intermediate makers. What you need DC Motor 540 Power cable (12V or 24V) Protection resistor (check datasheet) Gearbox (optional) Steps 1. Check the motor’s functionality with a multimeter. 2. Connect the power cable to the motor. 3. Install the protection resistor between the power cable and the motor (check datasheet). 4. If using a gearbox, connect it to the motor. 5. Verify polarity of connectors. 6. Test the motor with a DC signal generator (check datasheet). 7. Adapt the motor to your project, e.g., mounting a wheel. 8. Ensure everything works correctly. Mini-project Build a simple remote-controlled cart controlled by an Arduino. Use the DC Motor 540 as the drive motor and a distance sensor to control speed. Common mistakes Connecting power cable without protection resistor. Omitting polarity verification. Not testing the motor before final installation. Not adapting the motor to the initial project design. Recommended accessories Gearbox Protection resistor Distance sensor Arduino Frequently Asked Questions Does the motor only work at 12V? Check the datasheet for supported voltage range. How can I protect the motor? Connect a protection resistor between the motor and power supply. Can I use this motor for 3D printing projects? Check the datasheet for 3D printer compatibility. Does the motor have speed control? The DC Motor supports speed control, check the datasheet for details.
