CRIUS PDB Multicopter Power Distribution Board

Description

What it is

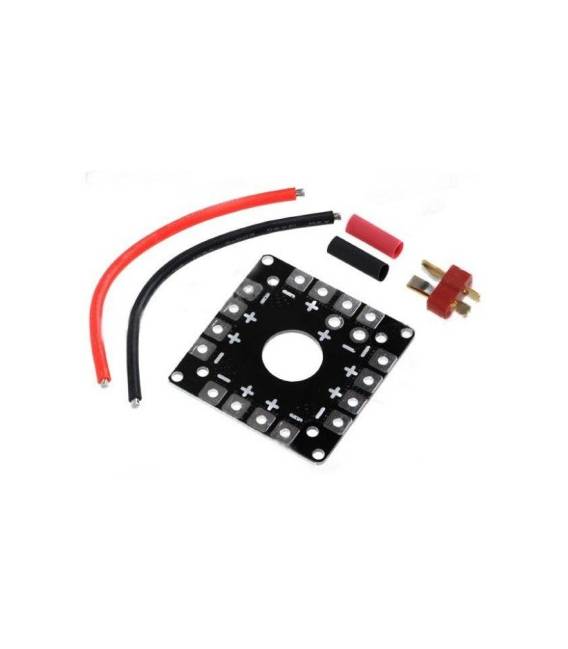

The CRIUS PDB (Power Distribution Board) is an electrical distribution board designed for multi-copter and multi-rotor drones. It distributes power from the battery to the ESC (Electronic Speed Controllers) that control the motors.

Features

• Product Name: CRIUS Power Distribution Board PDB MultiCopter Multi-Tri Copter Power Battery ESC Connection Board
• SKU: ARD001216
• Price: 2.54 €
• Categories: Drones, Robots / Vehicle

What it is for

The CRIUS PDB is essential for the proper functioning of a multi-copter. It allows the battery to be connected to the ESC and distributes power efficiently to the motors. It can be used to build multi-rotor systems with 2 or more motors. Compatibility with Arduino or ESP is not specified.

Tutorial: How to Use CRIUS Power Distribution Board

The CRIUS Power Distribution Board (PDB) is essential for multi-copters and multi-rotor systems. It distributes power from the battery to the motor ESCs.

What you need

• CRIUS Power Distribution Board PDB 13251
• LiPo Battery
• Motors ESC
• Connection Lead

Steps

1. Check the datasheet for your battery and PDB specifications.
2. Connect the battery to a charging port.
3. Connect the PDB to the battery with the power lead.
4. Connect the ESC filters to the corresponding terminals on the PDB for your motors.
5. Ensure all connections are secure.
6. Power up the PDB and check the current reaching the motor ESCs.

Mini project

Build a simple multi-rotor with 2 motor ESCs and a CRIUS PDB. Connect the PDB to the battery and the motor ESCs. Ensure everything works correctly.

Common mistakes

• Connect the PDB to a charging port not intended for power supply.
• Omit checking the connections.
• Do not check the current going to the motor ESC.
• Use a battery with a different voltage than specified.

Recommended accessories

• LiPo battery
• Motors ESC
• Connection wire
• Multimeter

Frequently asked questions

Can I use this PDB with different batteries?
Check the datasheet for your battery compatibility.

How long does the PDB last?
The PDB does not have a battery, it distributes power from your battery.

What are the ESC signals?
Check the datasheet for the required ESC signals.

Can I use this PDB with different multi-tri copters?
Check the datasheet for compatibility with your multi-tri copter.
