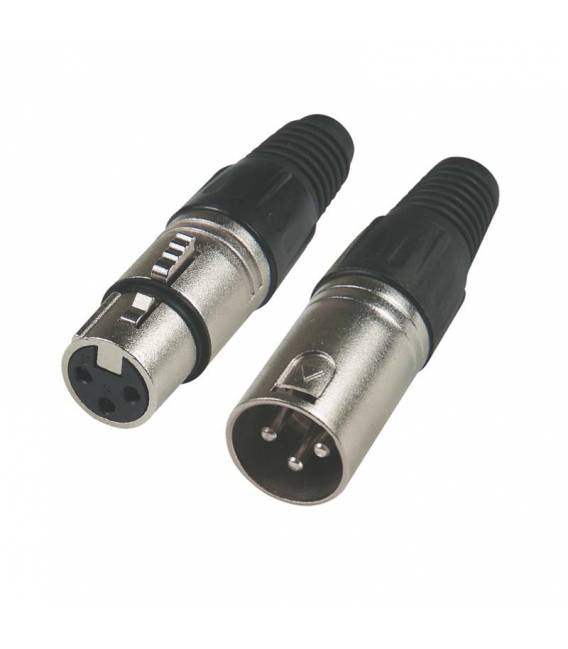

Cannon XLR 3 Pin Female/Male Audio Jack Connector

Description

Tutorial: How to Use Cannon XLR 3 Pin Female Male Connector The Cannon XLR 3-pin connector is a crucial component for professional audio cable assembly. It securely and efficiently connects devices such as microphones, preamplifiers, and mixers.

What you need:
– Microphone Cable Audio XLR Male Connector
Steps:
1. Verify that the female XLR connector is compatible with the male XLR cable.
2. Check wire colours (green, white, black) and corresponding contact positions.
3. Cut the audio cable to a suitable length for your desired connection.
4. Use pliers or a soldering iron to strip wires from the XLR cable.
5. Connect each wire to its respective contact in the female XLR connector as specified (green to ground, white to positive signal and black to negative signal).
6. Test the connection with a multimeter or continuity tester.
7. Neaten up the contacts of the XLR cable to avoid short circuits.
8. Insert the cable into the connector and close it according to manufacturer instructions.
9. Use any provided clips or locks to secure closure.
10. Check stability before using in professional audio systems.

Mini-project:
Create a custom XLR cable from scratch by connecting a microphone to a preamplifier.
Common mistakes:
– Incorrect wire connections
– Poorly filed contacts
– Missing connector closure
– Using inadequate materials for filing
Recommended accessories:
– Electrical pliers
– Soldering iron
– Multimeter or continuity tester
– Tool for filing contacts
Frequently Asked Questions:
How can I verify the quality of the connector?
Use a multimeter to test continuity between the cable and connector.
Can I use this connector with any type of microphone?
Check the microphone’s datasheet to see if it supports XLR interface.
