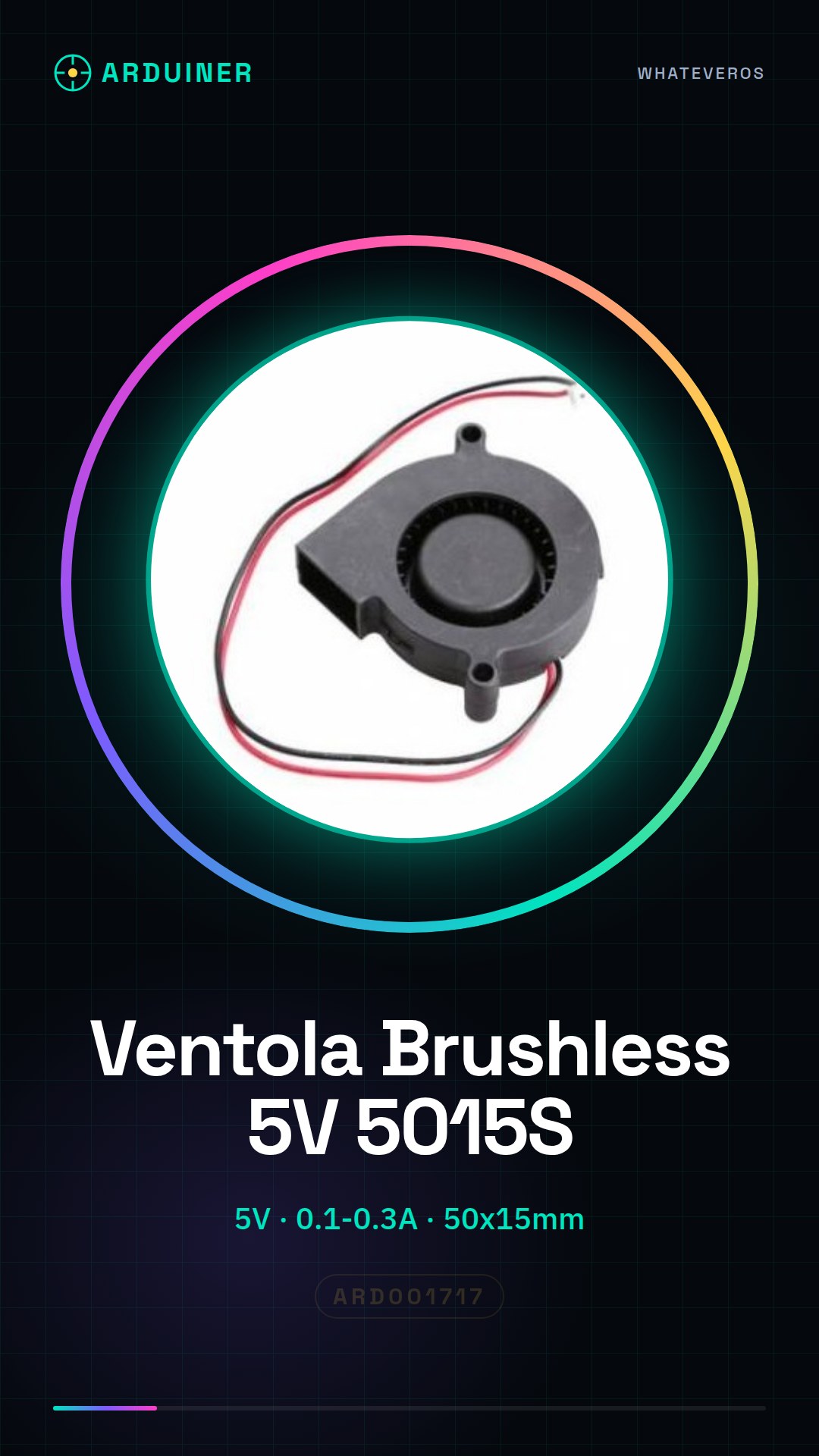

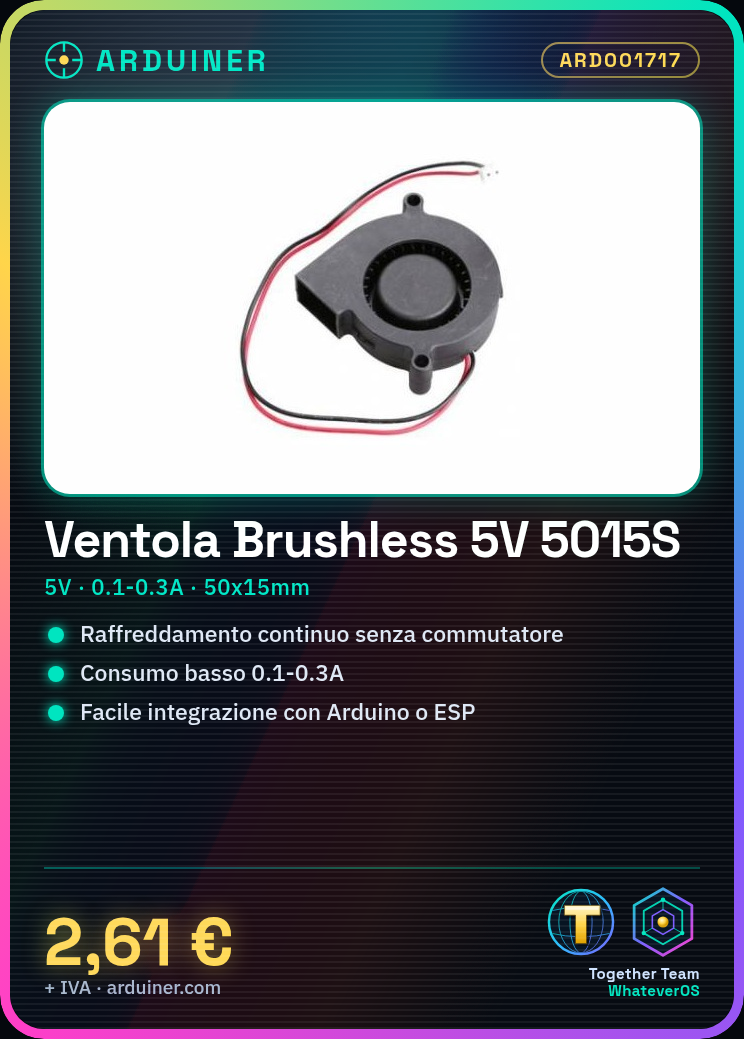

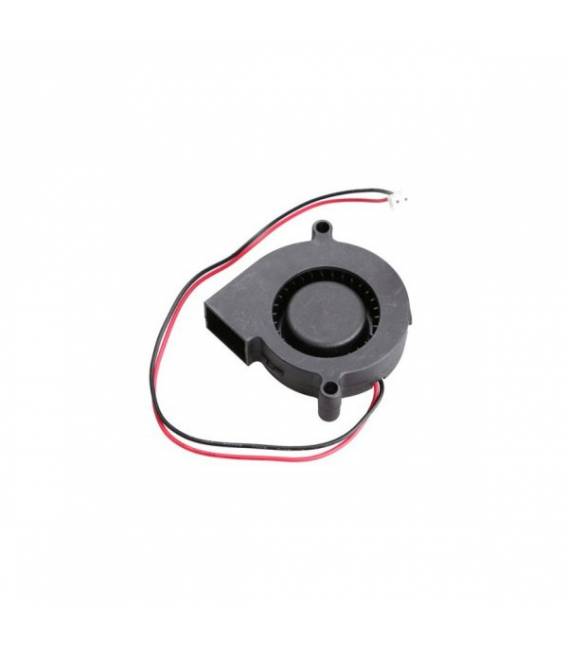

5V 0.1-0.3A 50x15mm Brushless DC Fan 5015S

Description

What is the Brushless DC Fan 5015S? The Brushless DC Fan 5015S is an electronic component designed to provide an efficient and cost-effective cooling solution. This fan operates at a continuous voltage (DC) without the need for a mechanical commutator, ensuring greater durability and reduced friction. Features Operating Voltage: 5V Operating Current: 0.1-0.3A Diameter: 50mm Blade Length: 15mm What is it for? The Brushless DC Fan 5015S is ideal for cooling 3D printers, CNC machines, and lasers. It can be used to create an automatic cooling system that activates the fan when the temperature exceeds a certain threshold (e.g., 50°C). It is easy to integrate into Arduino or ESP projects. Tutorial: How to Use Brushless DC Fan 5015S The Brushless DC Fan 5015S is perfect for balancing cooling and energy efficiency in 3D printer, CNC, or laser projects. It is suitable for both beginners and experts. What You Need Arduino Uno Brushless Motor Driver Stable Power Connection Steps Verify the compatibility of the brushless motor driver with the 5015S fan and 5V power supply. Connect the driver to the Arduino Uno microcontroller according to the datasheet specifications. Connect the fan wires to the driver terminals, respecting the wire colours (check the datasheet). Verify the operating current between 0.1A and 0.3A with an ammeter. Write an Arduino sketch to control the fan power through the driver. Test the project with the fan in continuous or intermittent operation mode. Ensure there are no electrical heat or abnormal vibrations during operation. Optimise the fan performance to balance energy efficiency and cooling. Example Code void setup() { pinMode(9, OUTPUT); // Set the PWM pin for fan speed } void loop() { analogWrite(9, 128); // Adjust fan speed to half power } Mini Project Create an automatic cooling system for a 3D printer that activates the fan when the temperature exceeds 50°C. Common Mistakes Connecting the fan without an appropriate driver. Ignoring power supply and current specifications. Not testing the system before continuous use. Using an incompatible fan for the project requirements. Recommended Accessories Brushless Motor Driver Arduino Uno Digital Thermometer Ammeter Frequently Asked Questions What is the power supply voltage? 5V. How much
