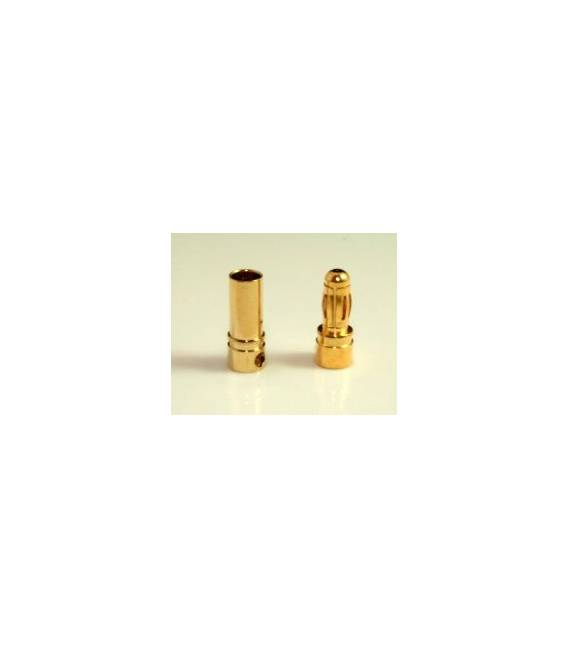

3.5mm 4.0mm Gold Bullet Banana Connector Plug for ESC Battery Motors

Description

The Gold Bullet Banana connector, available in 3.5mm and 4.0mm sizes, is used to connect batteries and ESC (Electronic Speed Controller) motors in drones and robots. These connectors are essential for ensuring a reliable connection between the battery and the ESC. They are commonly used with 3S (11.1V) batteries and can be directly connected to the ESC.

How to use the 3.5mm 4.0mm Gold Bullet Banana Connector Plug for ESC: This connector is fundamental for connecting the battery to the ESC of your drone or robotic vehicle. Useful for beginners and intermediates.

What it serves: 3.5mm 4.0mm Gold Bullet Banana Connector Plug for ESC.

Supporting connections (optional):
1. Check that the connector has the correct size (3.5mm x 4.0mm).
2. Verify the ESC and battery specifications on the datasheet.
3. Turn on the battery and ESC.
4. Connect the connector to the battery, ensuring correct polarity.
5. Connect the other end of the connector to the ESC.
6. Verify the connection and wire order (colors may vary).
7. Test the connection: the ESC should recognize the battery.
8. If necessary, add a support connection to prevent vibrations.

Mini-project: Connect the connector to an ESC and a 3S battery. Check the correct connection and wire order.

Common errors: Connecting the connector with reversed polarity. Not verifying ESC and battery specifications. Omitting the connection test. Not using support connections to prevent vibrations.

Recommended accessories: Support connections, Multimeter, Cutting and stripping tools, 3S battery.
