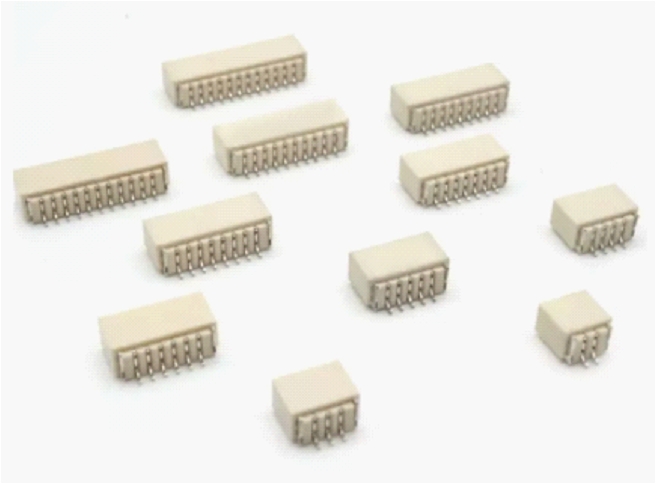

20 Pieces Horizontal PCB Connector 10P SH1.0

Description

What is the Horizontal PCB Connector 10P SH1.0? This connector is used to connect electronic circuits in a stable and clean manner. It’s suitable for projects requiring multiple board connections such as those based on Arduino or 3D printing.

Features:
– Number of pins: 10
– Connector type: SH1.0
– Position: Horizontal
– Quantity: 20 pieces

What does it do?
The Horizontal PCB Connector 10P SH1.0 is useful for creating modular connections between different boards and electronic components, ideal for 3D printing and drone projects, allowing to connect various functionalities in a simple and secure way.

How to use the Horizontal PCB Connector 10P SH1.0?
The connector is essential for electronic projects requiring multiple board connections, suitable for beginners and intermediate makers who want to create stable and clean connections between components.

What you need:
– Motherboard
– Daughter boards
– Mounting pins
– Soldering iron
– Pliers
– Screws

Steps:
1. Verify the connector’s compatibility with the desired boards.
2. Cut daughter boards to fit the connector without interference.
3. Use pliers to apply the connector to the motherboard side.
4. Insert the connector into the cut of daughter boards.
5. Ensure contacts are well aligned and no protrusions exist.
6. Secure the connector to the motherboard with screws.
7. Verify connection with a multimeter.
8. Repeat steps for additional connectors.

Mini-project:
Create a modular board system for 3D printing or drone projects, using Horizontal PCB Connector 10P SH1.0 to connect various functionalities.

Common mistakes:
– Not checking contact alignment before securing the connector.
– Using incompatible screws or pliers with the connector.
– Omitting multimeter verification of connection.
– Ignoring connector size during board design.

Recommended accessories:
– Screw and plier kit for connectors
– PCB cutter
– Multimeter
– Electronic test kit
