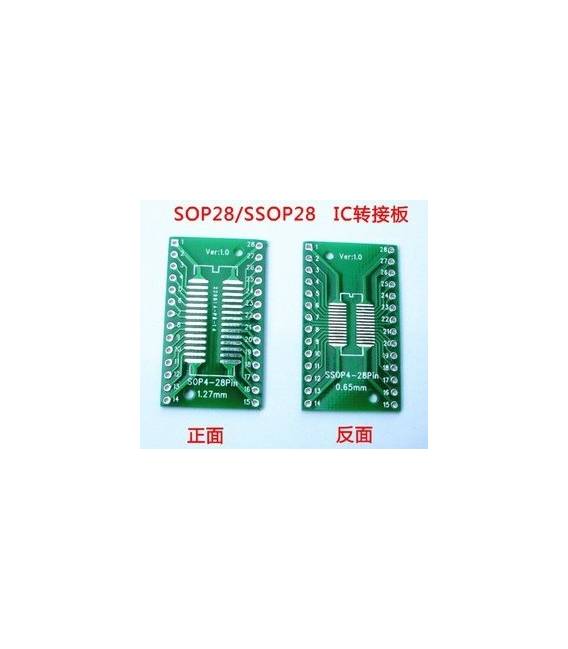

2 Pieces SOP28 SSOP28 TSSOP28 SMD to DIP 0.65 DIP 1.27mm Adapter Board

Description

Tutorial: How to Use SOP28 SSOP28 TSSOP28 to DIP Adapter Board This adapter board is ideal for makers working with SOP28, SSOP28, and TSSOP28 SMD components. It allows converting the SMD format to an easier-to-manage DIP connector. What You Need Arduino Uno DIP pin connection Soldering tweezers Steps Check the component specifications above the adapter board (refer to the datasheet). Prepare the DIP connector on the opposite side of the board, ensuring it matches the SMD pins. Solder the SMD component contacts delicately to the adapter board (refer to the datasheet). Verify the soldering with a pocket multimeter. Connect the DIP connector to the opposite side of the board, ensuring the pins match the SMD component pins (refer to the datasheet). Verify the soldering of the DIP connector contacts with a pocket multimeter. Connect the circuit to the power supply and microcontroller. Test the interconnection between the SMD pins and those of the DIP connector. Mini-project Create a small motherboard prototype with various SSOP28/TSSOP28 components connected via adapter boards to an Arduino Uno. Test the functionality of the components. Common Errors Insufficient or excessive soldering on the SMD component pins. DIP pins not corresponding to the SMD component pins (refer to the datasheet). Interrupted connections between the DIP connector and the adapter board. Use a pocket multimeter to verify soldering. Recommended Accessories Arduino Uno (SKU: ARD00123) Soldering tweezers (SKU: TOOLS456) Pocket multimeter (SKU: TEST789) Frequently Asked Questions How can I verify that the adapter board is installed correctly? Check the soldering with a pocket multimeter and ensure the DIP connector pins correspond to the SMD component pins (refer to the datasheet). Can I use this adapter board for all SOP28, SSOP28, and TSSOP28 components? Always check your component specifications on a datasheet before installing the adapter board. What is the advantage of using this adapter board compared to directly soldering SMD pins? The adapter board makes working with SMD components easier and safer, especially for beginners.
