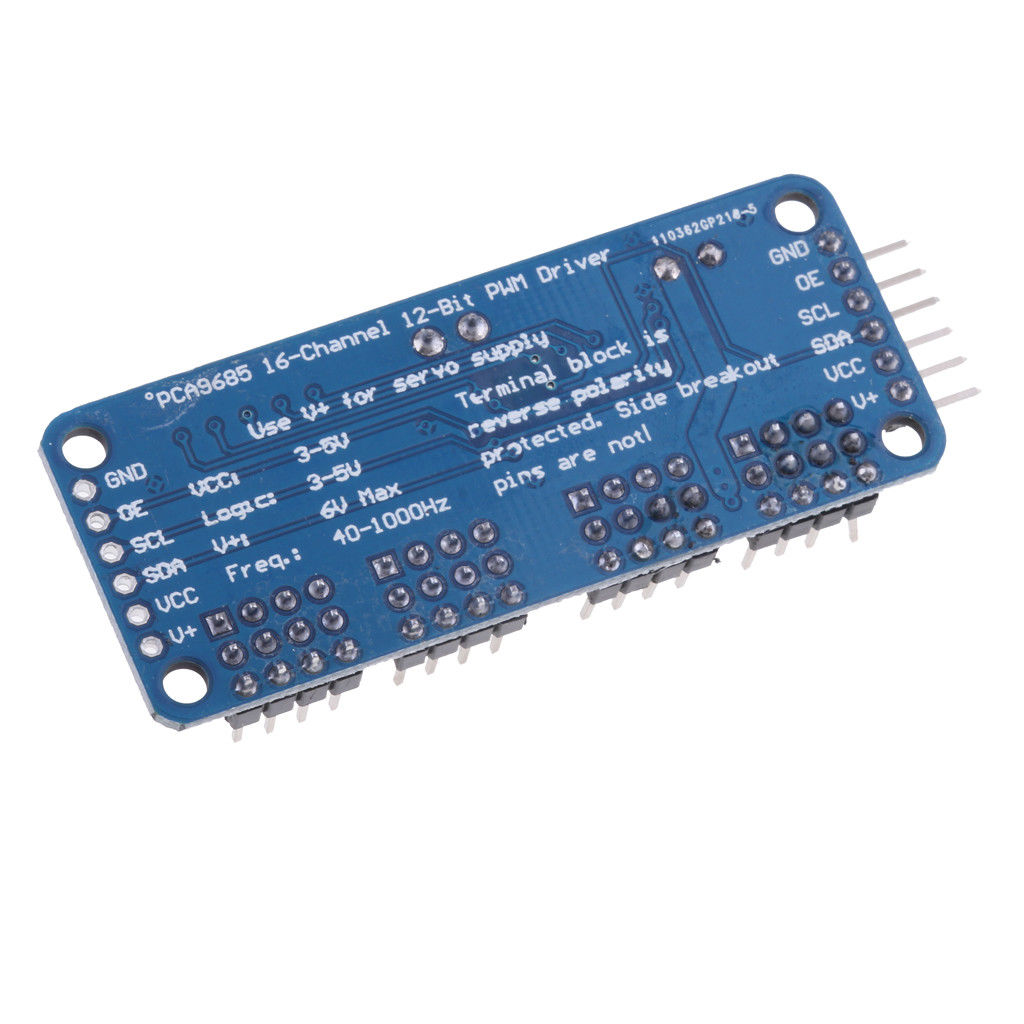

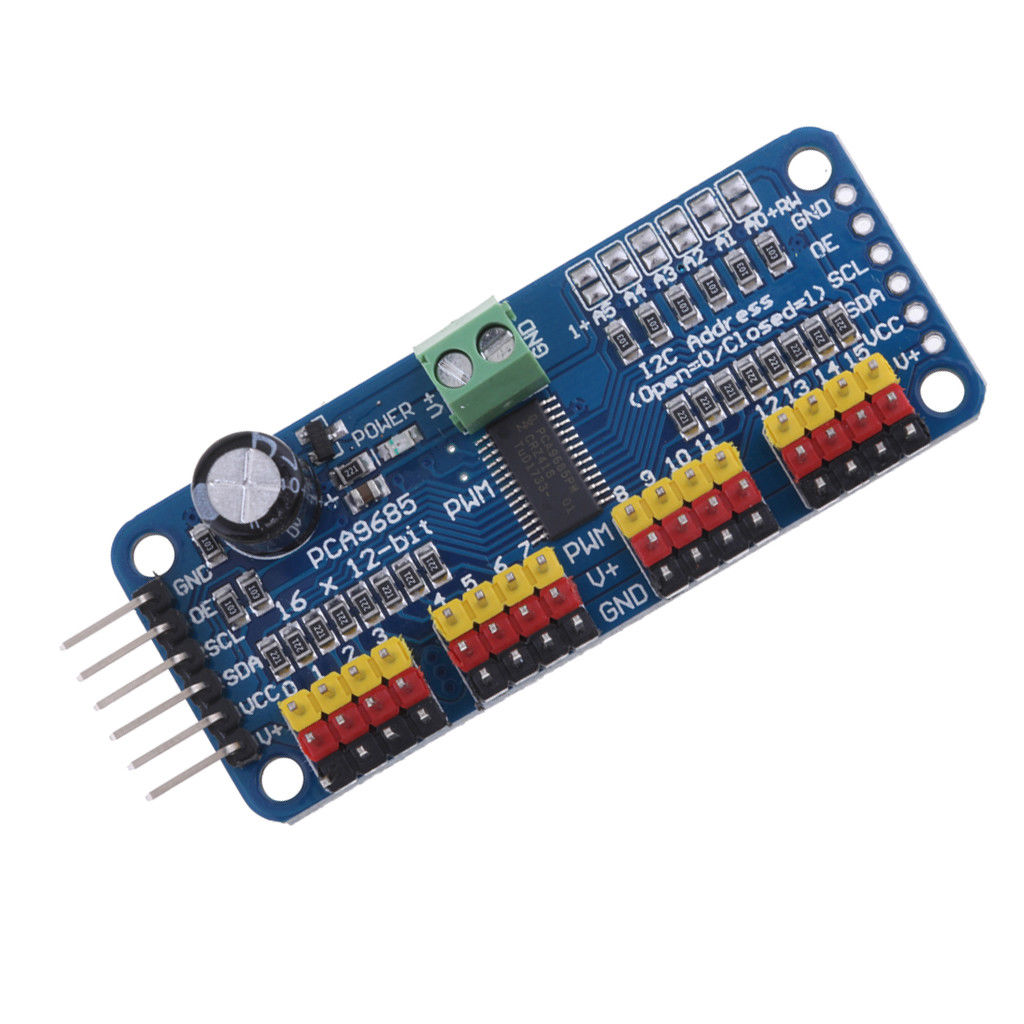

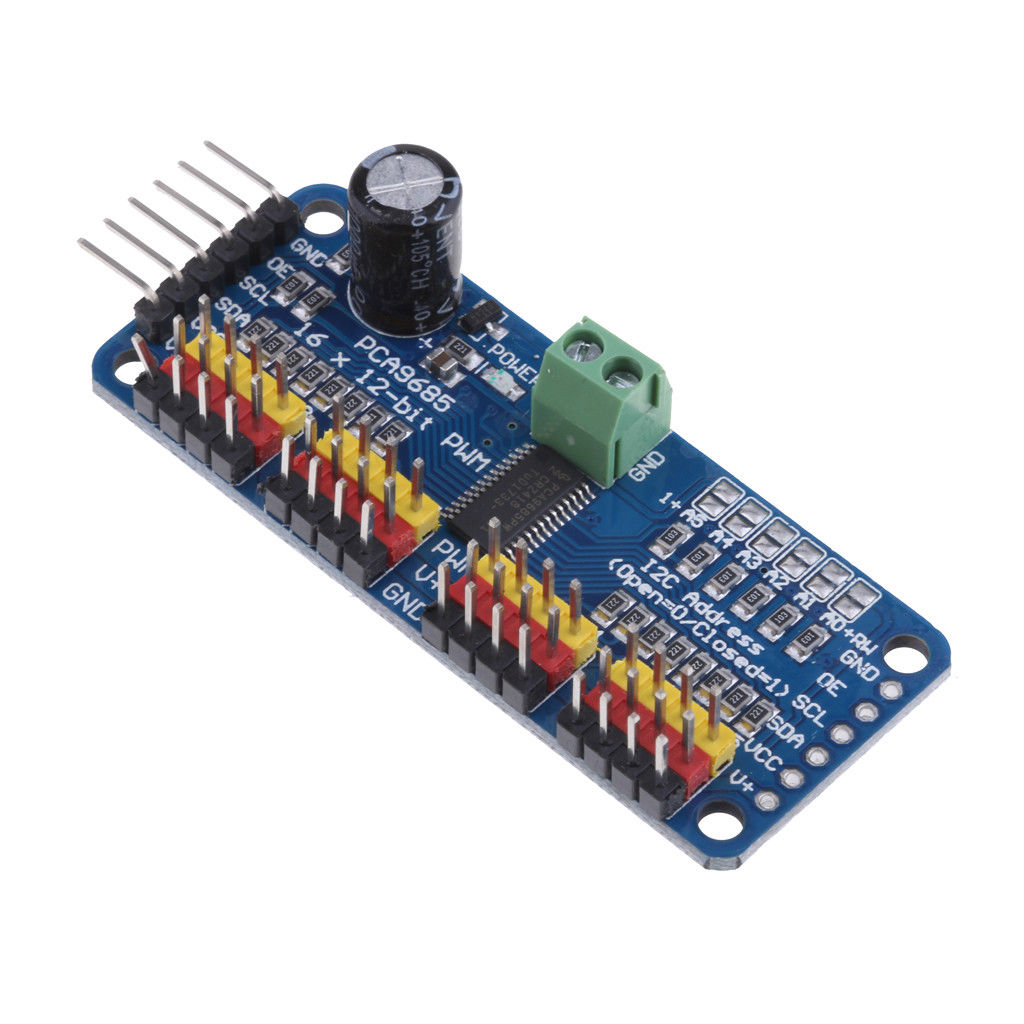

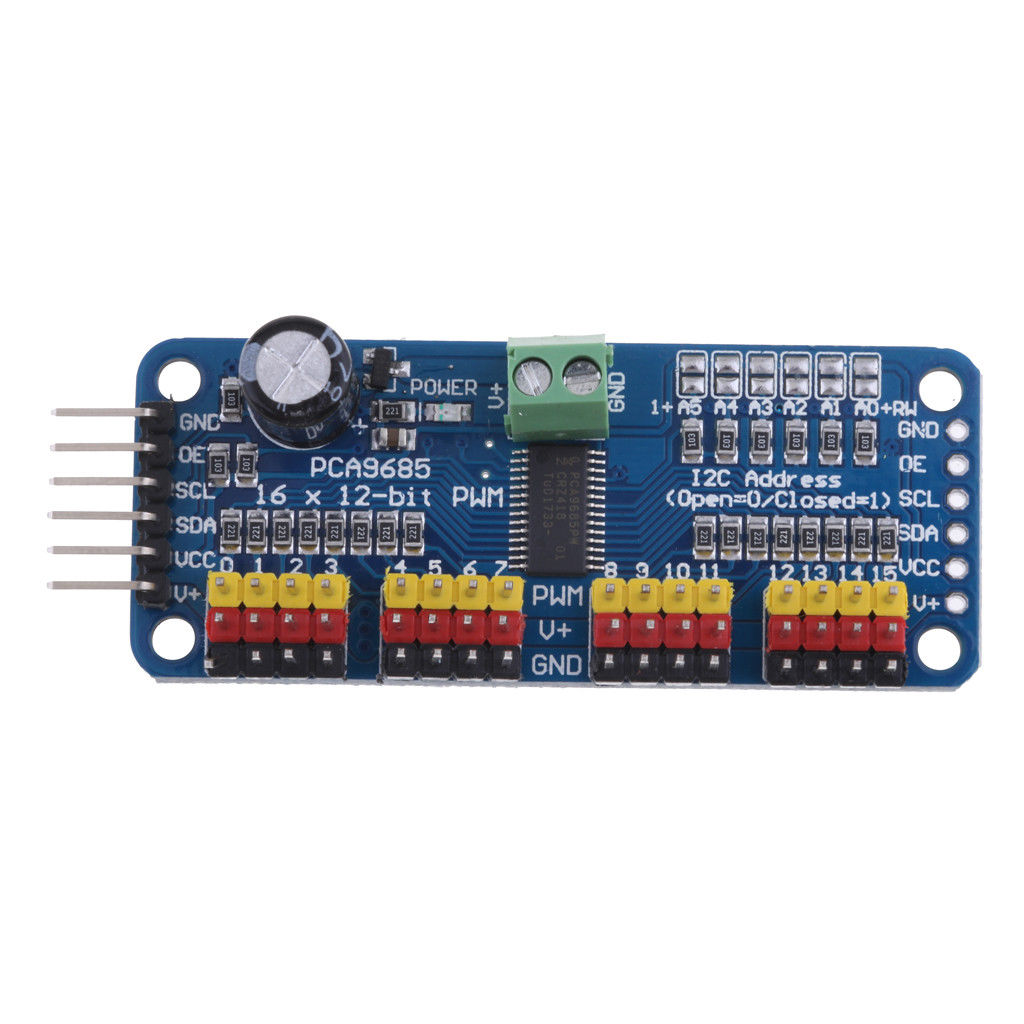

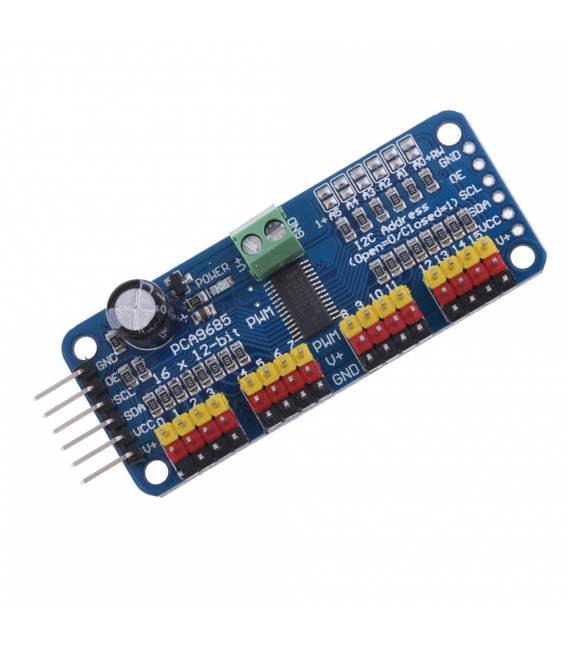

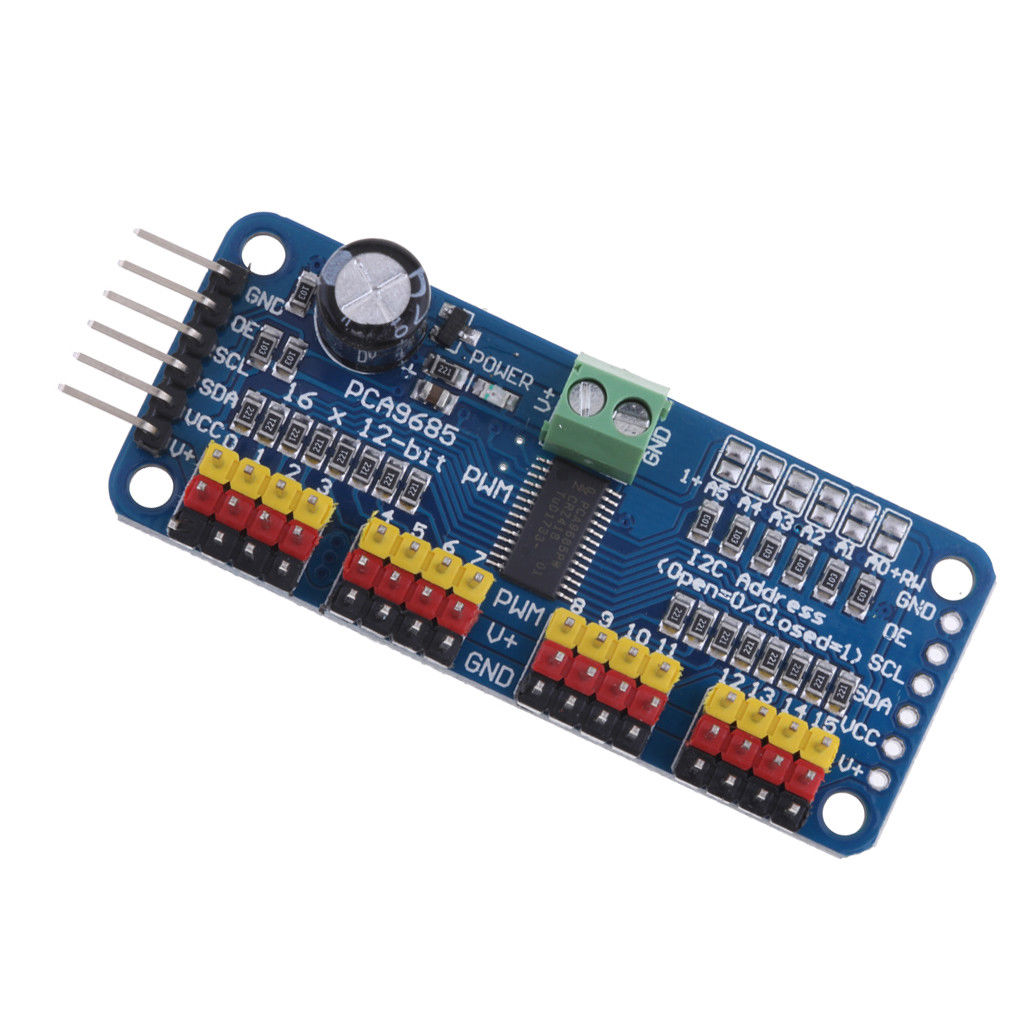

16-Channel 12-bit PWM Motor Expansion Shield PCA9685 I2C for Arduino

Description

What is the 16-Channel 12-bit PWM Motor Expansion Shield PCA9685 I2C for Arduino? It allows precise control of up to 16 servo or DC motors with high resolution 12-bit PWM. Features: 16 channels PWM, 12-bit resolution, I2C control, compatible with Arduino. For projects requiring precise motor and servo control, this shield is ideal. Use it for home automation systems, RC vehicles, robots, and other electronic projects. Tutorial: How to Use 16-Channel 12-bit PWM Motor Expansion Shield This shield enables you to control 16 servo or DC motors with high precision. Useful for advanced control projects. What you need: Arduino, 16 servo or DC motors, power cable, multimeter. Steps: 1. Install the PCA9685 library on your Arduino. 2. Connect VCC to 5V, GND to GND, and PWM signals to digital pins. 3. Configure using the provided Sketch code. 4. Write code to control the motors. 5. Test with a multimeter to verify channel functionality. 6. Calibrate motors for optimized performance. 7. Program for dynamic motor control. 8. Debug to ensure all motors function correctly. Example Code “`cpp #include Adafruit_PWMServoDriver pca9685 = Adafruit_PWMServoDriver(); void setup() { pca9685.begin(); pca9685.setPWMFreq(60); } void loop() { pca9685.setPWM(0, 0, 400); // Example for a motor } “` Mini-project: Create a control system for 4 servo motors for a home automation project. Common errors: Forgetting to install the PCA9685 library, connecting PWM signals to unsupported pins, setting the wrong PWM frequency, omitting motor calibration. Recommended accessories: Servo motors, power cable, multimeter, Arduino shield. Frequently asked questions: How to calibrate motors? Manually set the initial position of the motors and save it as a calibration value. Which Arduino pins can I use? Any digital pin can be used, but check compatibility with the library. Does the module support DC motors? Yes, but ensure your DC motor supports the PWM protocol. How long does it take to calibrate motors? A couple of minutes per motor.
