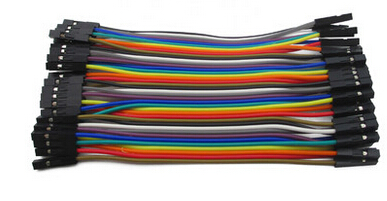

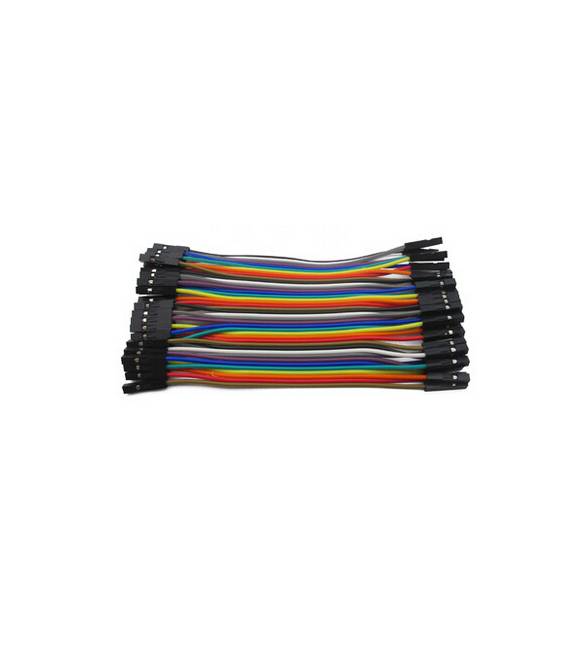

10CM Rainbow Cable 40P Female to Female

Description

Tutorial: How to Use the 40P 10cm Cable This cable is ideal for connecting components on a breadboard or linking different parts of your circuit. Useful for beginners and intermediates.

What you need:
– 40P 10cm Cable
– Breadboard Components to connect

Steps:
1. Take the 40P 10cm cable.
2. Identify female pins on components to connect.
3. Insert one end of the cable into the breadboard, aligning pins with holes.
4. Connect the other end of the cable to the correct pins on the second component.
5. Verify connection to ensure everything works correctly.
6. Repeat for connecting additional components if necessary.

Mini-project: Build a simple lighting circuit with an LED and resistor on a breadboard. Connect the LED to pin 13 of an Arduino and place the resistor between the LED and the cable.

Common mistakes:
– Not checking connection before running the circuit.
– Inserting cable pins incorrectly into the breadboard.
– Connecting components directly to power without resistance.
– Forgetting to protect sensitive pins.

Recommended accessories:
– LEDs
– Resistors
– Arduino
– Breadboard

FAQ:
How can I verify correct connection of the cable? Manually insert one end of the cable into the breadboard and check that pins correspond to holes. If you have an electrical circuit, verify LED illumination.
Can I use this cable to connect components on a printed circuit board (PCB)? Yes, but ensure the cable is short enough for secure and stable connection.
Is the cable compatible with all breadboard pins? Check datasheet to confirm compatibility with specific pins of your breadboard.
