PoE Injector / PoE Power Adapter

PoE Injector / PoE Power Adapter

More details

ARD00419
New product

4,10 €

- +

Add to compare


More info

Item specifics

is_customized:
Yes
Products Status:
Stock
Brand Name:
PoE kit
Type:
Cable Adapter
Package:
Yes
Cable length:
150mm
Power jack size:
5.5mm*2.1mm
Application:
Network power supply
Color:
White
Place of Origin:
Guangdong, China (Mainland)



Product Description

PoE Cable Kit, Adpater Kit Passive PoE Splitter&Injector 50 pair/lot,POE KIT Cable Adapter

PoE Cable, PoE Kit

1pcs Splitter+1pcs Injector

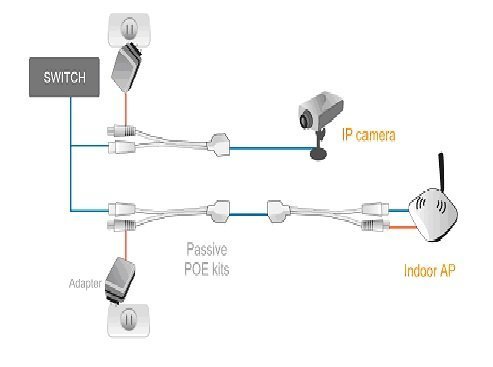

The complete Passive Power over Ethernet SET contains two pieces - INJECTOR and SPLITTER. It is suitable for using with products that basically do not support Power Over Ethernet. Passive Power Over Ethernet SET is applicable for wide range of network products such as Access Points, Routers, IP cameras, modems, switches, embedded computers or other network devices. Passive Power over Ethernet SET is compatible with most devices available on the market such as D-Link, Linksys, Airlive, Senao, Wline, Micronet, Edimax etc. The devices can be supplied standardly up to 50V. (The power adapter is not included - it is possible to use the power adapter of the powered device as access point, IP camera etc.) Passive PoE`s range is normally form 30-40 metres/100-130 ft (the real distance depends on the power supply, type of cable and powered device).

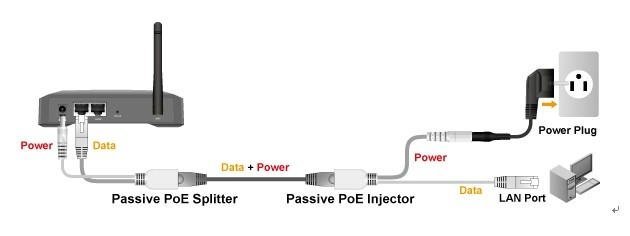

1. It is very simple to connect a passive PoE. On the lower part, we connect the Ethernet
RJ connector of passive PoE to the PC, Hub or Switch and connect the power adapter
to the power socket.

2. On the opposite end (RJ socket) we connect the Ethernet cable leading to the far end.

3. At the far end, we connect the end of the Ethernet cable to the RJ socket and connect
the power connectors and the Ethernet to the powered equipment. The equipment is now
connected by them.
10-pairs-of-POE-Cable-Kits-PoE-Injector-PoE-Splitter (2).jpg


Contains: INJECTOR and SPLITTER.
Complete set for wide range of network products such as Access Points, Routers, IP cameras, modems, switches, embedded computers or other network devices such as D-Link, Ovislink, Senao, Wline, RouterBOARD, WRAP boards and other devices using passive POE injection.

Connector Barrel size is 2.1mm (5.5 x 2.1 mm)

Power Pins 4,5 + and 7,8 -

1. It is very simple to connect a passive PoE. On the lower part, we connect the Ethernet
RJ connector of passive PoE to the PC, Hub or Switch and connect the power adapter
to the power socket.
2. On the opposite end (RJ socket) we connect the Ethernet cable leading to the far end.

3. At the far end, we connect the end of the Ethernet cable to the RJ socket and connect
the power connectors and the Ethernet to the powered equipment. The equipment is now
connected by them.








Abbiamo disponibili datasheet di tutti i componenti, qualora non fosse presente nella scheda download del prodotto inviaci un messaggio dal modulo contattaci e lo pubblicheremo il prima possibile nel nostro sito.
